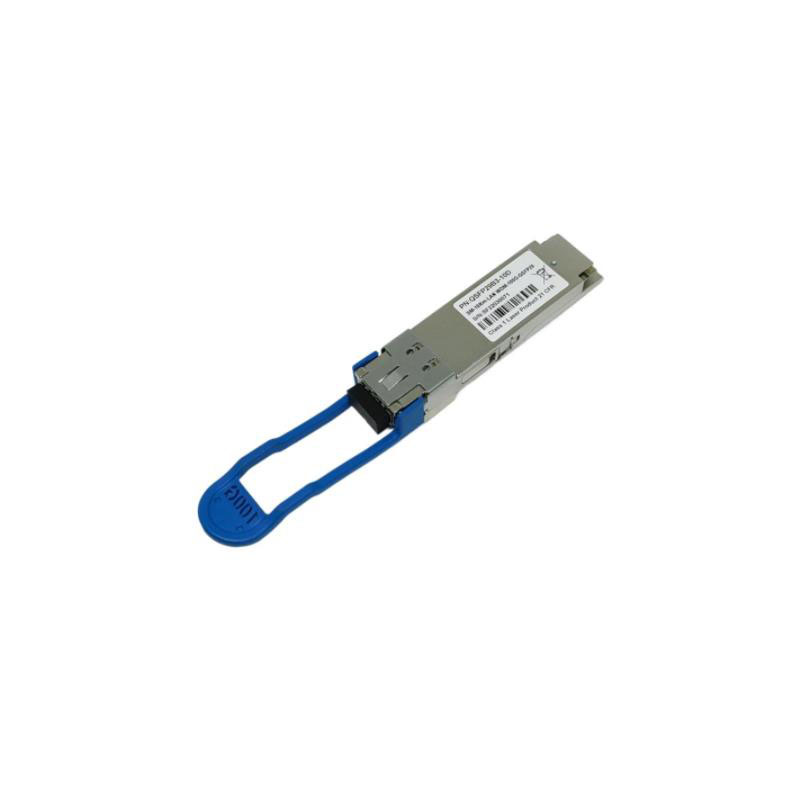

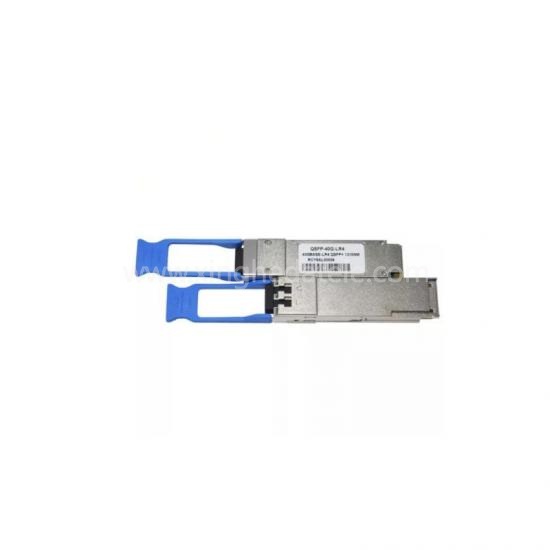

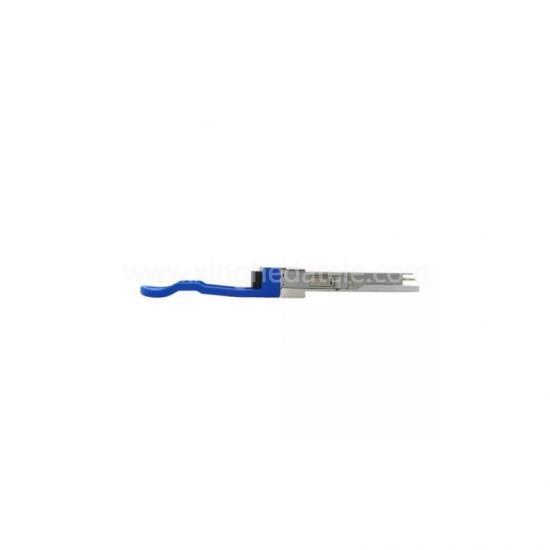

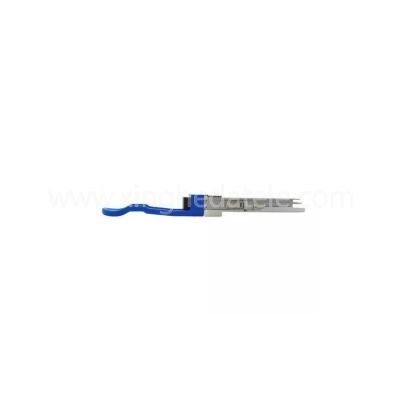

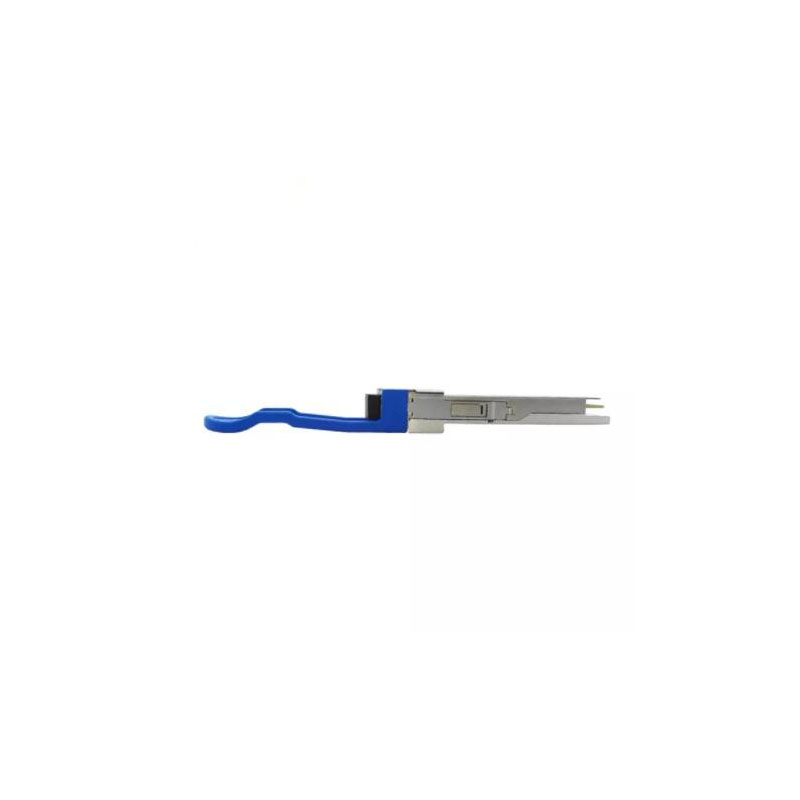

02310MHS Huawei Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module

02310MHS Huawei Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module

Product Description

• The 02310MHS Huawei Compatible 40GBASE-LR4 QSFP+ transceiver module is designed for high-speed optical communication applications. Huawei 02310MHS operates at a wavelength of 1310nm and provides a transmission distance of up to 10 kilometers. The module features an LC duplex connector for easy connectivity and supports digital optical monitoring DOM for real-time monitoring of key parameters such as optical power, temperature, and transceiver status. With its 40Gbps data rate, this transceiver is suitable for various networking and data center applications requiring long-range optical connections.

• BASE-LR4 Quad Small Form-factor Pluggable Plus (QSFP+).
• Standards based 40-Gigabit Ethernet (40GBASE-LR4).
• 40 Gbit/sec line speed.
• Operating distance up to 10km on OS1 fibre.
• Transmitter wavelength 1310nm.
• Industry-standard LC connector.
• Singlemode Fibre (SMF).
• Digital Optical Monitoring (DOM).

• Basic Information

  Module name: QSFP-40G-LR4

  Part Number: 02310MHS

  Model: QSFP-40G-LR4

  Form factor: QSFP+

  Application standard: 40GBASE-LR4

  Connector type: LC

  Optical fiber type: SMF

  Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)

  Transmission rate [bit/s]: 40 Gbit/s

  Target transmission distance [km]: Single-mode fiber: 10 km

  Transmitter Optical Characteristics




  Center wavelength [nm]: 1271 nm, 1291 nm, 1311 nm, 1331 nm

  Maximum Tx optical power [dBm]: 2.3 dBm

  Minimum Tx optical power [dBm]: -7.0 dBm

  Minimum extinction ratio [dB]: 3.5 dB

  Receiver Optical Characteristics

  Rx sensitivity [dBm]: -11.5 dBm

  Overload power [dBm]: 3.3 dBm

• Product Details

Our Advantages

We have Huawei 02310MHS for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Huawei 02310MHS, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Huawei 02310MHS represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
