Whether you need new products or renovated products, takes comprehensive
warranty as the standard.we only purchase green market equipment of the
highest quality . All these are provided at the best possible price.
Min.Order Quantity::
1 pcPrice::
NegotiableDelivery Time::
3-5 dayswarranty time::
six monthsPlace of Origin::
ChinaPayment Terms::
T/T, Western Union, MoneyGram

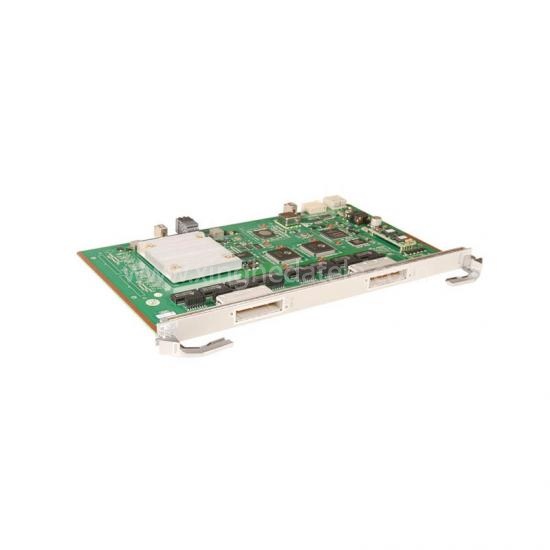

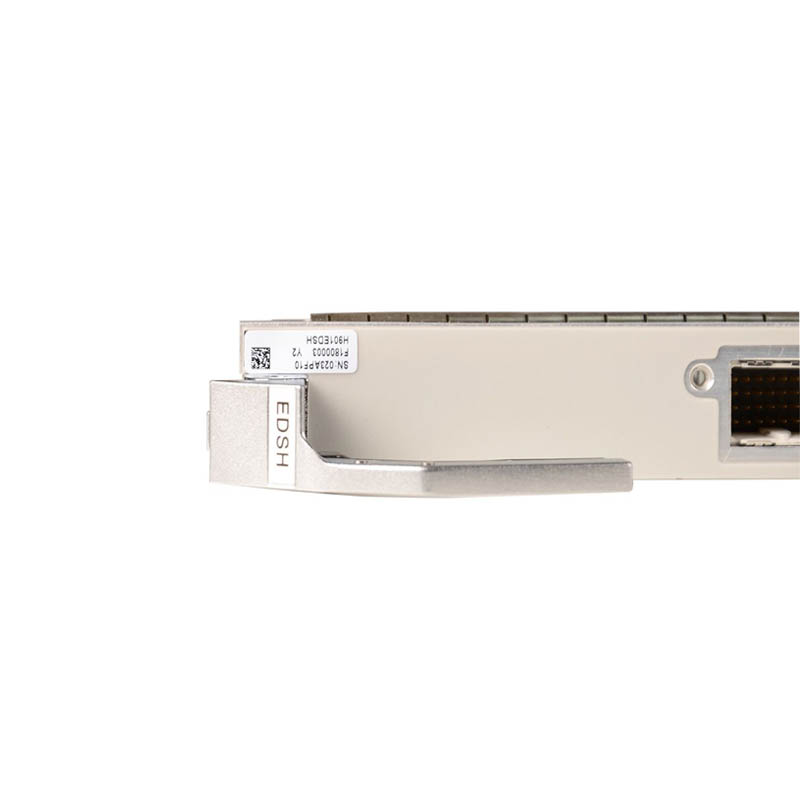

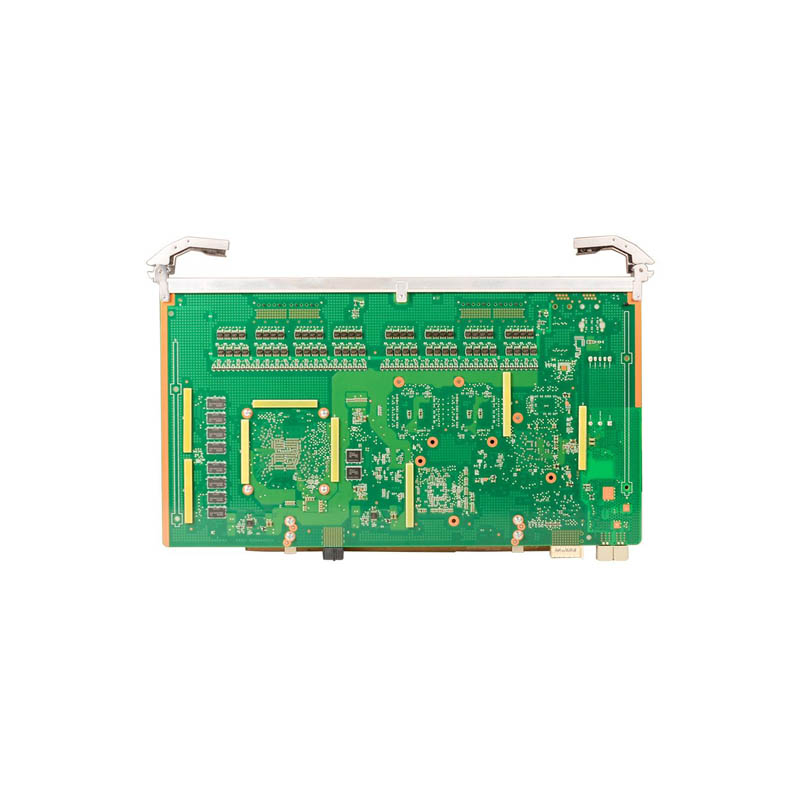

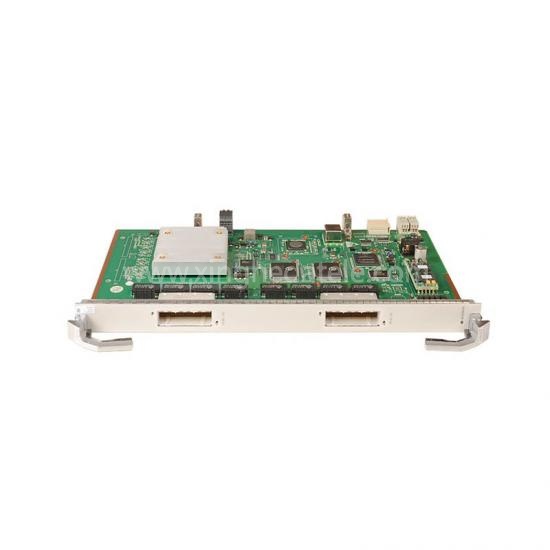

Huawei 03023APF H901EDSH MA5800 Series OLTs Broadband Board 32 port E1 Service Board EDSH Board
Product Description
|
Item |
MA5800-X17 |
MA5800-X15 |
MA5800-X7 |
MA5800-X2 |
|
Dimensions (W x D x H) |
493 mm x 287 mm x 486 mm |
442 mm x 287 mm x 486 mm |
442 mm x 268.7 mm x 263.9 mm |
442 mm x 268.7 mm x 88.1 mm |
|
Maximum Number of Ports in a Subrack |
272 x GPON/EPON
816 x GE/FE
136 x 10G GPON/10G EPON
136 x 10G GE544 x E1 |
240 x GPON/EPON
720 x GE/FE
120 x 10G GPON/10G EPON
120 x 10G GE480 x E1 |
112 x GPON/EPON
336 x GE/FE
56 x 10G GPON/10G EPON
56 x 10G GE224 x E1 |
32 x GPON/EPON
96 x GE/FE 16 x 10G GPON/10G EPON
16 x 10G GE64 x E1 |
|
Switching Capacity of the System |
7 Tbit/s |
480 Gbit/s |
||
|
Maximum Number of MAC Addresses |
262,143 |
|||
|
Maximum Number of ARP/Routing Entries |
64K |
|||
|
Ambient Temperature |
-40°C to 65°C Note: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent |
|||
|
Working Voltage Range |
-38.4V DC to -72V DC |
DC power supply: -38.4V to -72V AC power supply: 100V to 240V |
||
32-channel TDM E1 upstream board
2x16-channel E1 interface (NE96 Connector, 96PIN, PCB PressFit Type)
Apply to Huawei MA5800 series
Supports CRC4
Supports line alarm and maintenance information report
Supports temperature query and high-temperature alarm
Supports automatic shutdown at high temperature
EDSH is a 32-channel TDM E1 upstream board, supporting transparent transmission and convergence of digital data network (DDN) private line service.
Product Details
Our Advantages
We have Huawei 03023APF for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei 03023APF, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei 03023APF represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
