HUAWEI CXL1 03050983 03050984 03050985 03050986 03050987 OSN 2500 SSQ1CXL110

Whether you need new products or renovated products, takes comprehensive

warranty as the standard.we only purchase green market equipment of the

highest quality . All these are provided at the best possible price.

  • Min.Order Quantity::

    1 pc
  • Price::

    Negotiable
  • Delivery Time::

    3-5 days
  • warranty time::

    six months
  • Place of Origin::

    China
  • Payment Terms::

    T/T, Western Union, MoneyGram
  • Share To :
  • Facebook
  • Twitter
  • Linkedin
  • Youtube
  • Pinterest

HUAWEI CXL1 03050983 03050984 03050985 03050986 03050987 OSN 2500 SSQ1CXL110

Product Description

The functions of each subrack area are as follows:

  • Slot area for the auxiliary interface board: This area is used to house the auxiliary interface board, which provides alarm interfaces, orderwire phone interface, management and maintenance interface, and clock interface.
  • Slot area for interface boards: This area is used to house the tributary interface boards and Ethernet interface boards.
  • Slot area for processing boards: This area is used to house the line, tributary and Ethernet processing boards, system auxiliary processing boards and the integrated boards of the cross-connect, timing and SCC units.
  • Fan area: This area is used to house two fan modules, which dissipate the heat generated by the equipment.
  • Power supply area: This area is used to house two PIU boards, which are used to supply power to the equipment.
Slot Allocation
The OptiX OSN 2500 subrack has only one layer. The left portion and right portion of the subrack, where eight slots are present, are slot areas for interface boards. The middle portion of the subrack, where ten slots are present, is the slot area for processing boards.
Slot layout of the OptiX OSN 2500 subrack (before the division of slots)

Slot layout of the OptiX OSN 2500 subrack (after the division of slots)


lot Area for Interface Boards

Slots for interface boards: slots 1-4 and 15-18

Slot Area for Processing Boards

  • Slots for processing boards before the division of slots: slots 5-8 and 11-13
  • Slots for processing boards after the division of slots: slots 5-8, 11-13, and 19-21
  • Slots for integrated boards of the SCC, cross-connect and line units: slots 9-10
  • Slot for the system auxiliary processing board: slot 14

Other Slots

  • SEI auxiliary interface board: slot area for auxiliary interface boards
  • Slots for PIU boards: slots 22-33
  • Slots for fan boards: slots 24-25

Product application



Highlight Features

Large switching capacity

60G high order, 20G low order

High integration

Subrack dimensions 472mm (H) x 447mm (W) x 295mm (D), 9 slots for processing boards before division of slots, 12 slots for processing boards and 8 slots for interface boards after division of slots

Flexible networking capacity

  • Supports Mesh networking with plug-and-play network nodes
  • Supports dynamic increase of rate and capacity
  • Supports various networking topologies, including chain, ring, tangent rings, intersecting rings, etc
  • Supporting maximum 2 STM-16 four-fiber MSP rings, 4 STM-16 two-fiber MSP rings, 8 STM-4 four-fiber MSP rings, 12 STM-4 two-fiber MSP rings

Carrier-class protection

  • Mesh Protection and restoration(ASON)
  • Distributed restorable rerouting protection
  • 5-level service dedicated protection scheme based on different SLA: Diamond, Gold, Silver, Copper and Iron services
  • SDH Network Protection
  • 2/4 fiber MSP Ring; 1+1, 1: n Linear MSP; SNCP/SNCMP/SNCTP; Fiber shared virtual path protection; Fiber shared MSP Ring; DNI (ITU-T G.842)
  • Service Protection
  • Ethernet: RPR, RSTP
  • ATM: VP-RING/VC-RING

Highly Reliable Design

  • 1+1 hot backup for system control boards, cross-connect and synchronous timing boards
  • 1+1 hot backup for power supply modules
  • Redundancy protection for fan modules
  • TPS protection
  • 1:n tributary protection for E1/T1/E3/T3/ E4/STM-1(e)/FE

Enterprise-focused Features

  • Intelligent ASON based Mesh network can against multi-node failures, improving network reliability by 10 times
  • Single-span transmission for a distance of 270km without a Raman amplifier, fewer REGs to reduce the network construction cost and facilitate the maintenance
  • Single-fiber bidirectional optical module to solve the problem of a lack of fiber resources, and built-in WDM to meet the large bandwidth requirements

Product Details

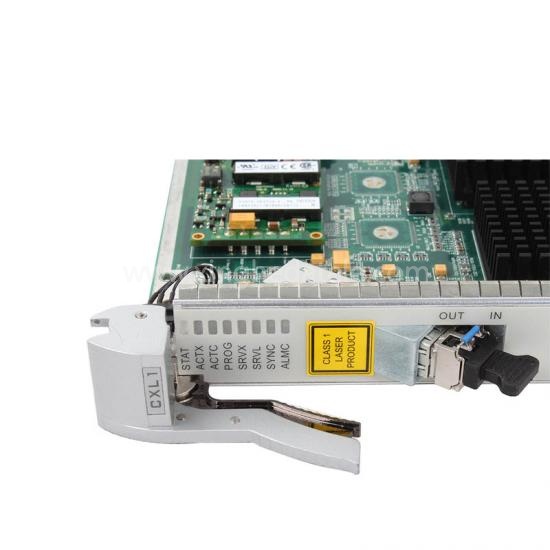

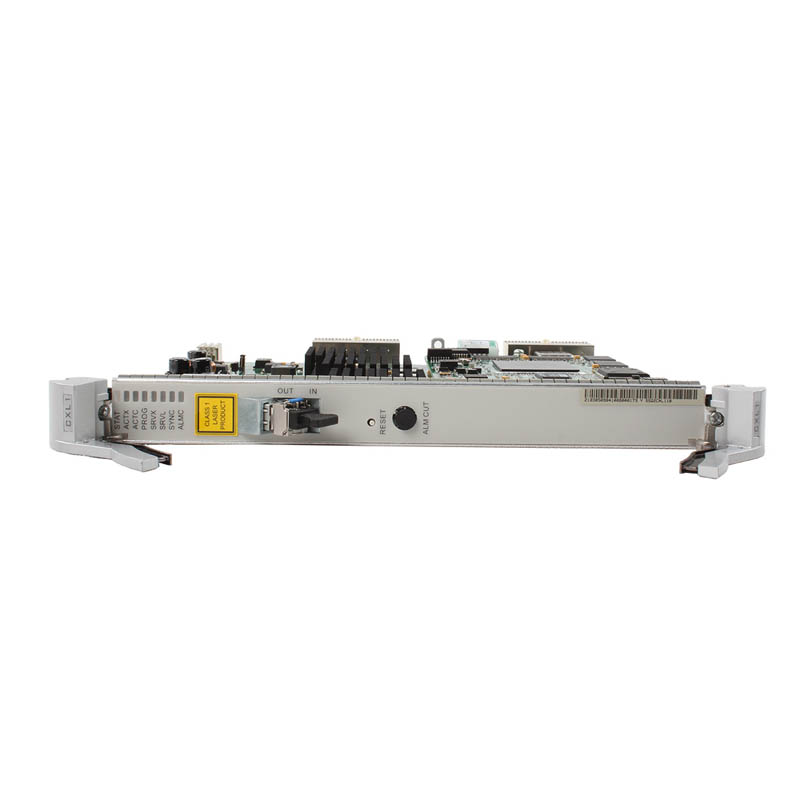

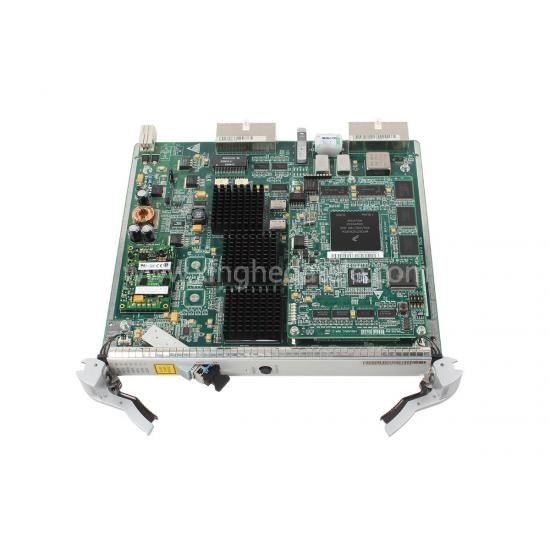

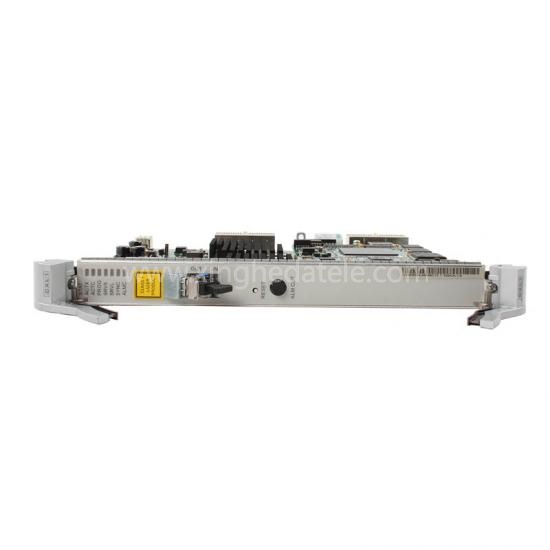

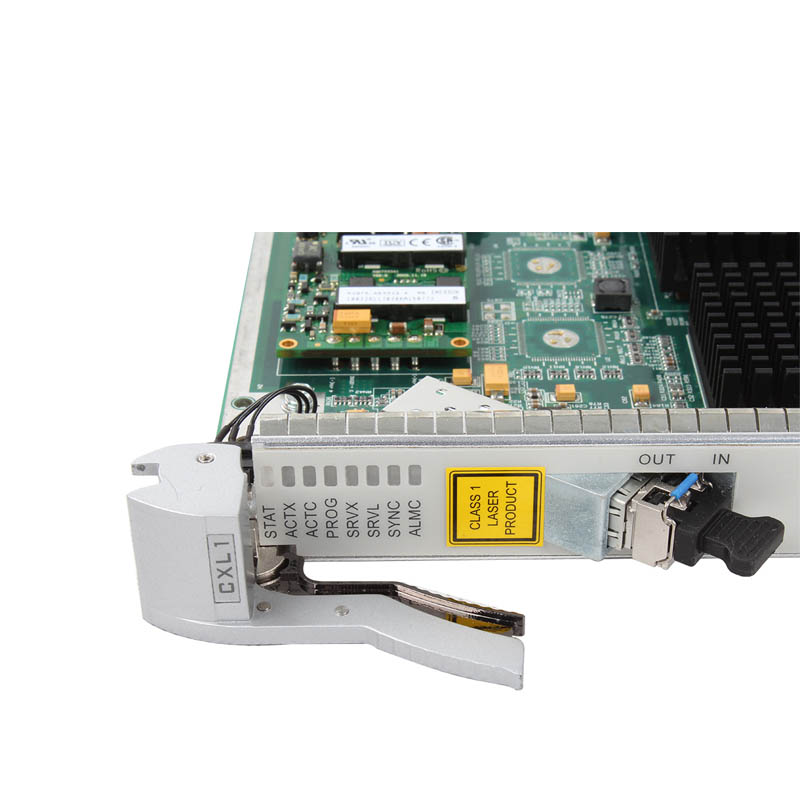

HUAWEI CXL1

HUAWEI CXL1

Our Advantages

We have Huawei CXL1 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.


Huawei CXL1, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.


Huawei CXL1 only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers
