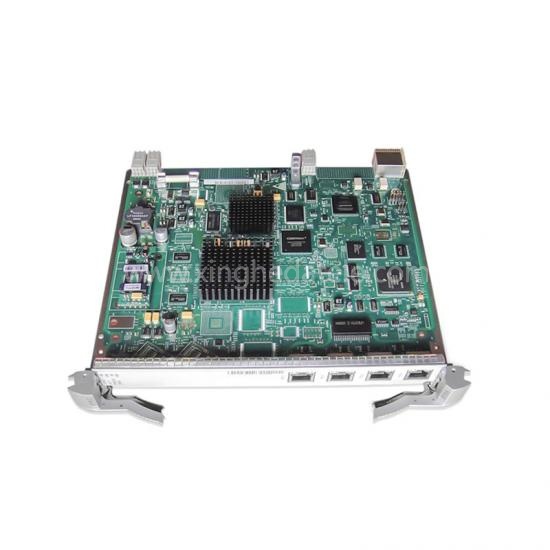

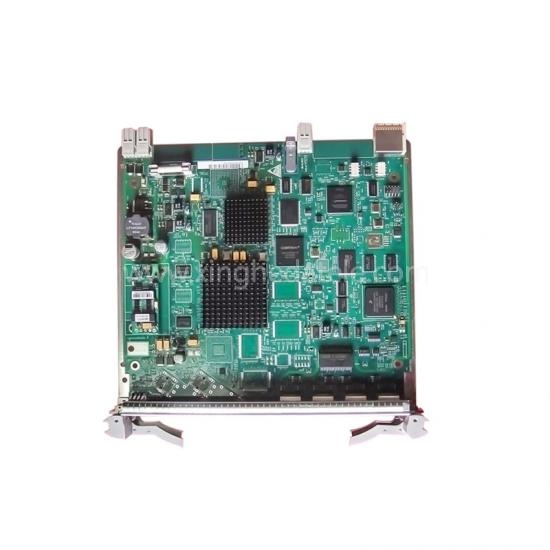

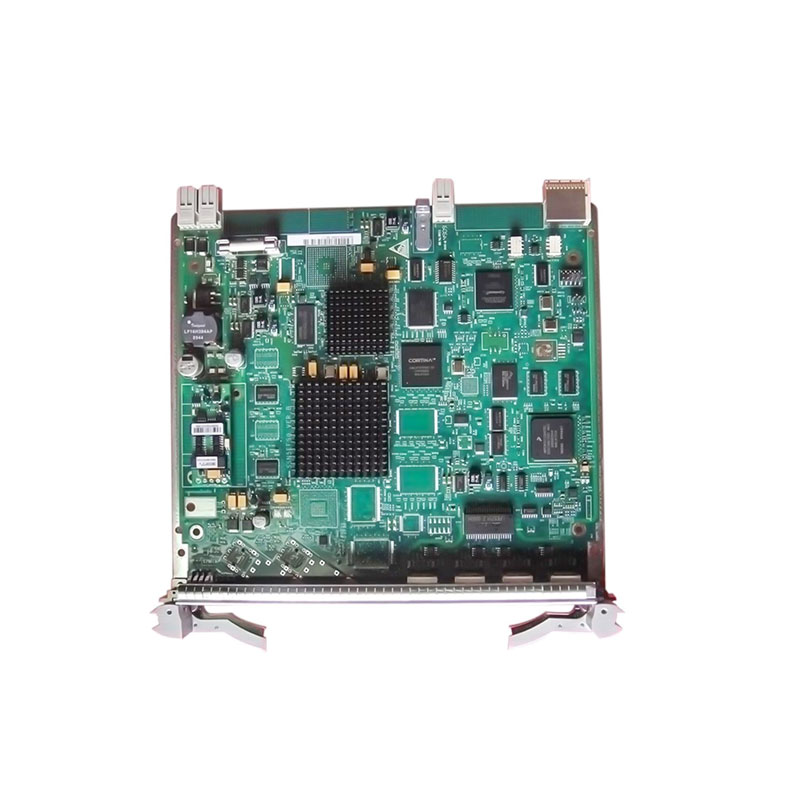

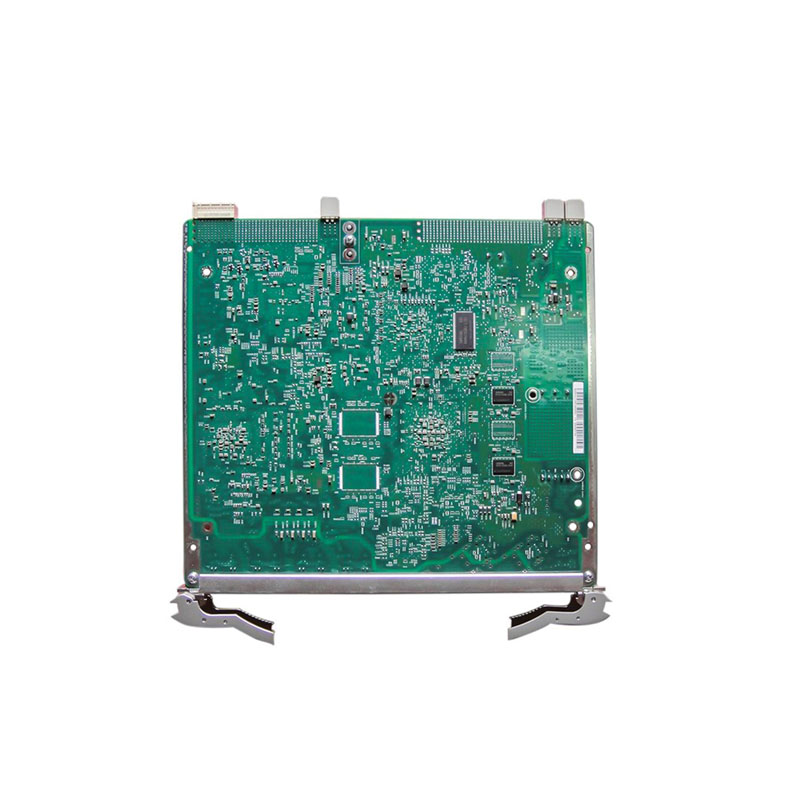

Huawei EFS4 4xFE Switching Processing Board

Huawei EFS4 4xFE Switching Processing Board

Product Description

SSND00EFS411 4-ports 10/100M Fast Ethernet Processing Board with LAN Switch, apply to Huawei OSN1500, OSN2500, OSN3500, OSN7500

Can substitute for the N2EFS4 and N1EFS4.

Supports 24 VCTRUNKs.

Processes 4xFE services.

Supports 10BASE-T/100BASE-TX signals. The optical ports comply with IEEE 802.3u.

Supports Query /Setting of ports status, Query of port types.

Supports PORT-based transparent transmission.

Supports PORT-shared EVPL services.

Supports VCTRUNK-shared EVPL services.

The services are isolated by VLAN tags.

The services are isolated by MPLS tags.

The services are isolated by QinQ tags.

Supports a maximum of 4096 links.

Supports the EPLAN services that are based on the IEEE 802.1d MAC bridge.

Supports switching on the client and SDH sides.

Supports the blacklist that can contain 2K records and static MAC address table that can contain 2K records.

Supports self-learning of source MAC address. The capacity of the MAC address table is 16K.

Supports the configuration of static MAC routes.

Support the query of dynamic MAC addresses.

Maximum number of supported VBs is 16. Maximum number of logical ports for each VB is 30.

Supports data isolation based on VB+VLAN.

Supports the setting of a maximum of 4096 VLAN services.

Supports the EVPLAN services that are based on the IEEE 802.1q virtual bridge.

Support the EVPLAN services that are based on the IEEE 802.1ad provider bridge.

Supports IEEE 802.3, Ethernet II, IEEE 802.1 q/p.

Supports setting of the frame length to a value ranging from 1518 bytes to 9600 bytes.

Supports a jumbo frame with a maximum length of 9600 bytes.

Supports 24xVC-3 or 126xVC-12 + 18xVC-3 bound bandwidth.

Supports GFP-F, not supports HDLC, LAPS encapsulation formats.

Supports MPLS technology.

Supports a total number of 4094 VLANs, which comply with IEEE 802.1q/p.

Not supports TPS, BPS, PPS, DLAG protection schemes.

Support manual link aggregation and load sharing mode that comply with IEEE 802.3ad and IEEE 802.1AX.

Supports LCAS, which increases/decreases bandwidth and protects bandwidth comply with ITU-T G.7042 protection schemes.

Support P2P LPT and P2MP LPT,LPT complies with ITU-T G.7042.

Supports broadcast packet suppression function and RSTP, which comply with IEEE 802.1w.

Not supported Synchronous Ethernet, IEEE 1588v2.

Support CC, LB, LT tests comply with IEEE 802.1ag, and OAM ping comply with Huawei proprietary protocol.

Support OAM auto-discovery, remote loopbacks, fault detection,comply with IEEE 802.3ah.

Support link performance detection comply with IEEE 802.3ah.

Supports selfloop detection in compliance with Huawei proprietary protocol.

Support test frames in Ethernet/GFP bearer mode.

Supports Ethernet performance monitoring at the port level.

Supports the CAR. The granularity is 64 kbit/s.

Support flow classification based on PORT, PORT+VLAN ID, or PORT+VLAN ID+VLAN PRI.

Support the flow classification based on PORT+S-VLAN ID.

Supports Protocol enabling, Port aging time.

Not supports Fast leave, Discarding of unknown broadcast packets, Static broadcast entry IGMP snooping.

Supports the port-based traffic control function that complies with IEEE 802.3x.

Supports port-based and VCTRUNK-based traffic monitoring

SSND00EFS411 is a 4-ports FE service processing board, which has interfaces on its panel, can be used on Huawei OSN1500B, OSN2500, OSN3500, OSN7500. SSND00EFS411 part number is 03020KHU, model name is SSN3EFS4.
