HUAWEI H901XSED 03032VUV 8-port Symmetric 10G GPON Board

HUAWEI H901XSED 03032VUV 8-port Symmetric 10G GPON Board

Product Description

XEBD XGBD XHBD GPSF EPHF XEHD EDSH

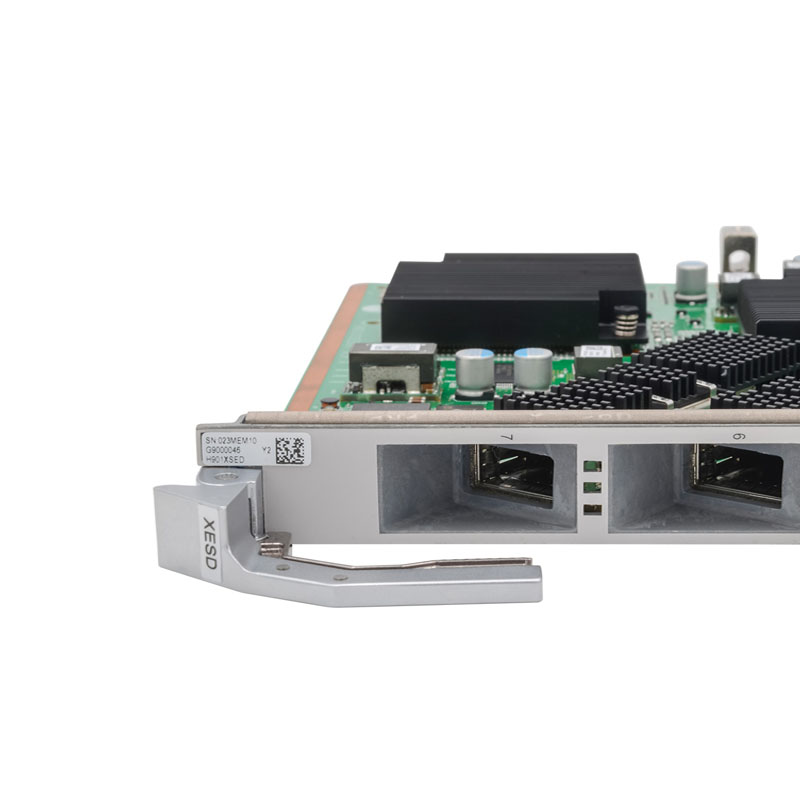

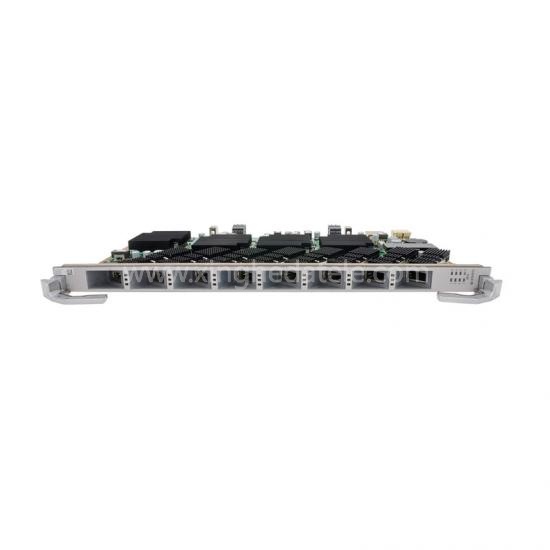

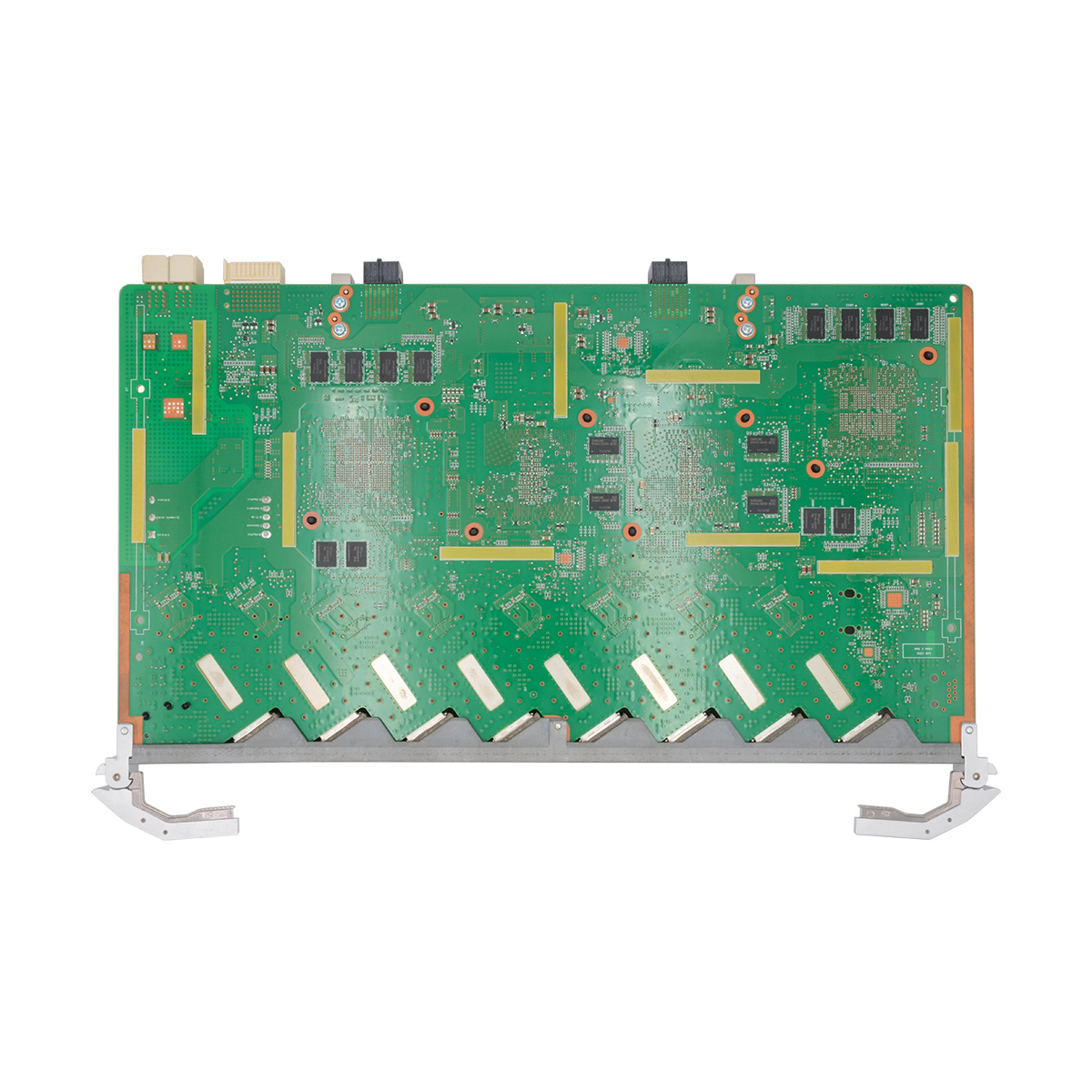

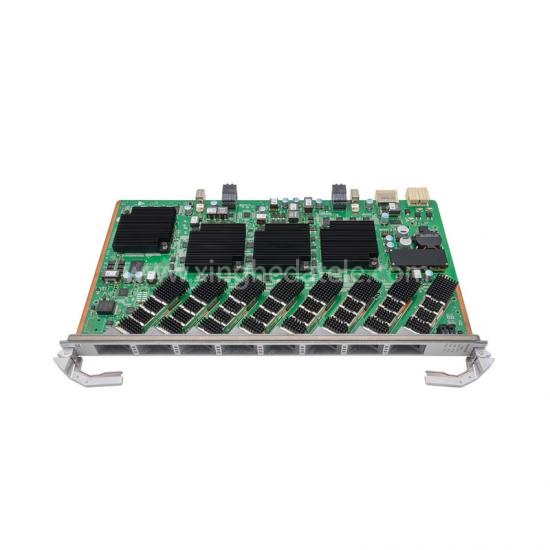

H901XSED Board DescriptionThe H901XSED board is an 8-port symmetric 10G GPON interface board. It works together with the optical network terminal (ONU) to provide 10G GPON access services.

Parameters

Board Parameter

You can query power consumption, weight, maximum frame size, and normal operating temperature of all boards.

Table 1 lists the power consumption, weight, and maximum frame size of boards.

The operating temperature of H901XSED and H901TWED is -40°C to +55°C (in MA5800–X17/X15/X7) or -40°C to +65°C (in MA5800–X2) and the lowest board startup temperature is -25°C. The operating temperature of other boards is -40°C to +65°C and the lowest board startup temperature is -25°C.

NOTE:

The power consumption of a board is calculated based on the following conditions:

Operating voltage: -53.5 V DC.

Ambient temperature: 25°C.

Static power consumption: All ports do not carry any loads and optical modules are not installed on optical ports.

Maximum power consumption: All ports fully carry loads.

The board power consumption slightly varies with the power module configured for the board and discreteness of components.

Table 1 Power consumption and maximum frame size of boards

Our Advantages

We have HUAWEI H901XSED for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

HUAWEI H901XSED, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

HUAWEI H901XSED represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
