Huawei ME0D0LAXFB7H is a 10-Port 10GBase LAN/WAN-SFP+ flexible card
applied to Huawei ME60 router, the ten ports can be configured to work in
LAN mode (When an interface is in WAN mode, only the Master mode is supported.)
Min.Order Quantity::
1 pcPrice::
NegotiableDelivery Time::
3-5 dayswarranty time::
six monthsPlace of Origin::
ChinaPayment Terms::
T/T, Western Union, MoneyGram

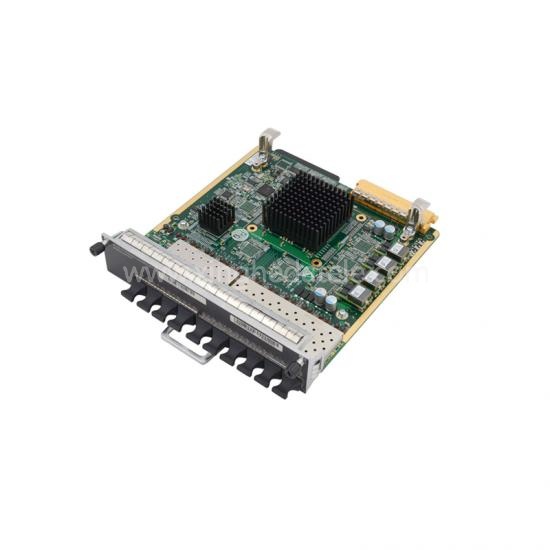

HUAWEI ME0D0LAXFB7H Flexible Card
Product Description
| Specifications | |||||
| Optical interface attributes |
Compliant with the selected SFP+optical module, and 10G/1.25G auto-negotiation. 10 Gbit/s SFP+ Optical Module 1.25 Gbit/s SFP/eSFP Optical Module 1 Gbit/s Electrical Transceiver |
||||
| Frame format | Ethernet_II, Ethernet_SAP, and Ethernet_SNAP | ||||
| Supported protocol and service | Ethernet_II, Ethernet_SAP, and Ethernet_SNAP | ||||
| NMS |
Enhanced command-line interface SNMP and MIB support |
||||
| Operating conditions |
Long-term ambient temperature: 0°C to 45°C (32°F to 113°F) Short-term ambient temperature: -5°C to +55°C (23°F to 131°F) Long-term relative humidity: 5% to 85% Short-term relative humidity: 5% to 95% |
||||
| Storage conditions |
Storage temperature: -40°C to +70°C Storage humidity: 5% to 100% |
||||
| Physical specifications | |||||
| Dimensions(mm) | 37.2(H)x 178.7(W) x 193.3(D) | ||||
| Weight(kg) | 0.7 | ||||
| Power consumption (typical value)(W) | 49 | ||||
Huawei ME60 10-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP240).
Can be installed on a LPUF-240 occupying one 1/2 width flexible card slot.
Provides types of loopback functions.
Supports SFP+ limiting optical modules instead of SFP+ linear optical modules.
Supports SyncE.
Supports IEEE 1588v2 protocol.
Supports WAN master instead of WAN slave.
Huawei ME0D0LAXFB7H is a 10-Port 10GBase LAN/WAN-SFP+ flexible card applied to Huawei ME60 router, the ten ports can be configured to work in LAN or WAN mode (When an interface is in WAN mode, only the Master mode is supported.) and use SFP+ optical module. This card can be installed on a LPUF-240 and occupies one subcard slot.
ME0D0LAXFB7H comes with original box, if purchase together with router, it will be will inserted into the router by default when delivery, to economical volume weight; If need delivery separately with original box, please contact Thunder-link.com sales team in advance.
Product Details
Our Advantages
We have HUAWEI ME0D0LAXFB7H for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
HUAWEI ME0D0LAXFB7H, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
HUAWEI ME0D0LAXFB7H represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
