Huawei MPWD AC Power Board

Huawei MPWD AC Power Board

Product Description

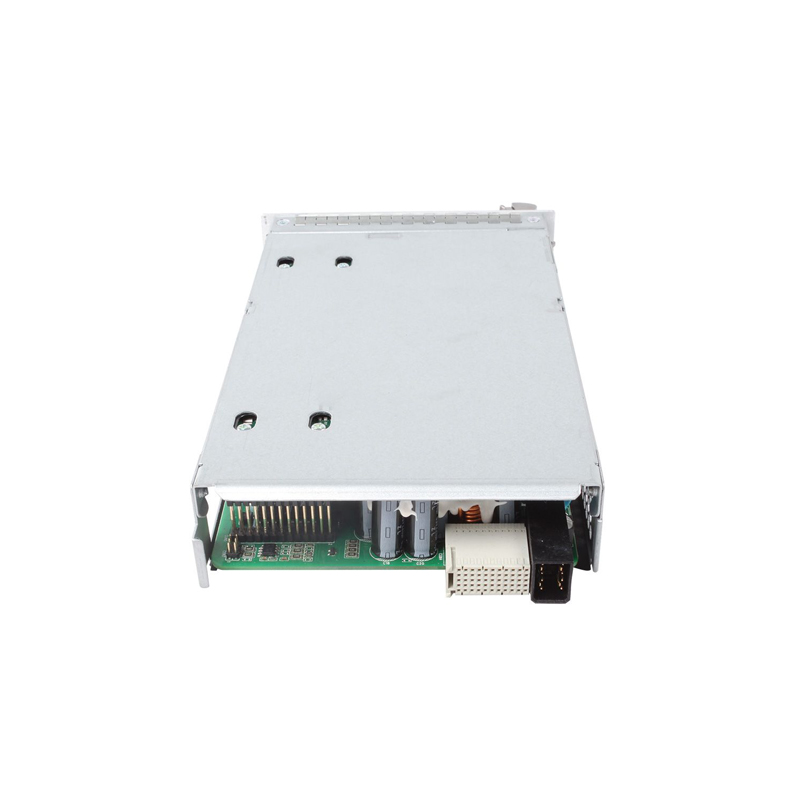

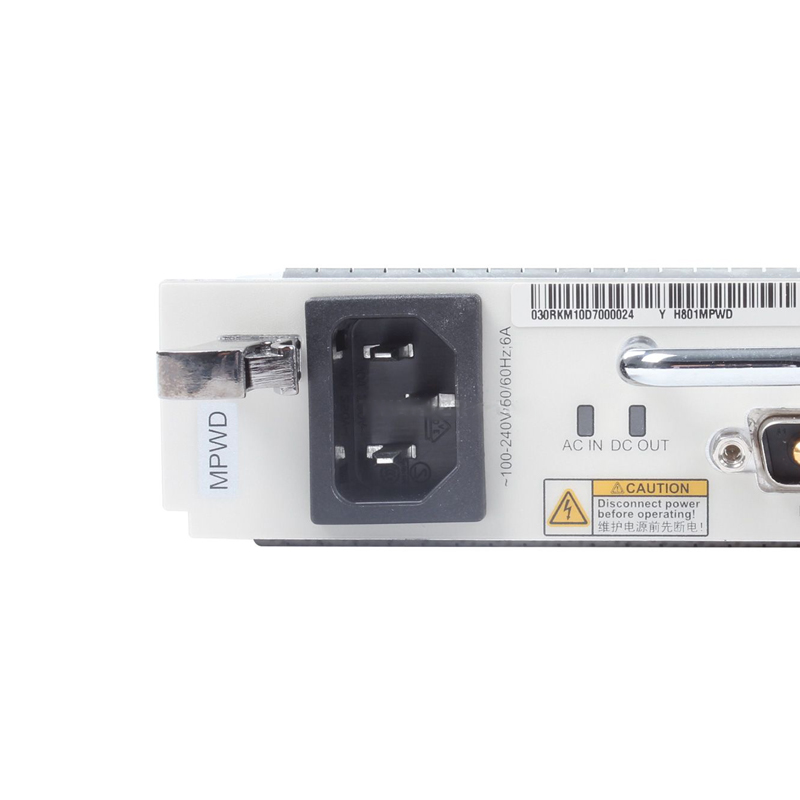

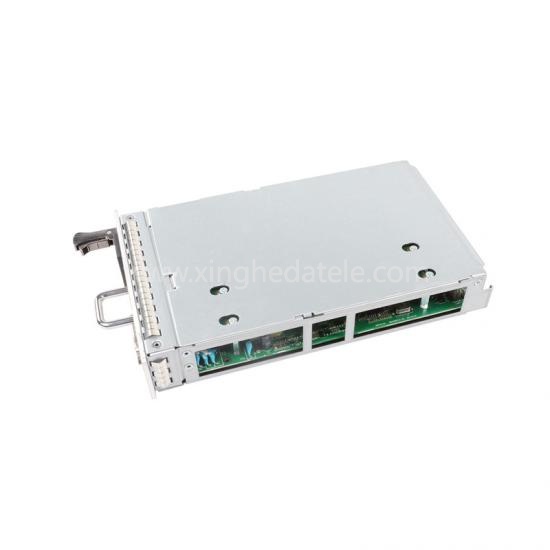

The H801MPWD board is an AC power board, consisting of an AC power unit and a monitoring unit. The board supplies power to the device and supports the lead-acid battery for power backup. The AC power unit provides overcurrent protection, output overvoltage protection, short circuit protection, and over-temperature protection. The monitoring unit provides comprehensive management for the power system and storage battery, and also provides certain environment monitoring functions.

Functional Specifications

The H801MPWD board supports the following functions and specifications:

Input AC voltage: -100 V to -240 V

Input AC frequency: 50 Hz to 60 Hz

Single-phase three-wire AC power input

Connection to battery backup power (-48V DC)

Rated output power: 400 W

Alarm monitoring

Battery low voltage disconnection; charge and discharge management of storage batteries

Product Details

Our Advantages

We have Huawei H801MPWD for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Huawei H801MPWD, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Huawei H801MPWD represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
