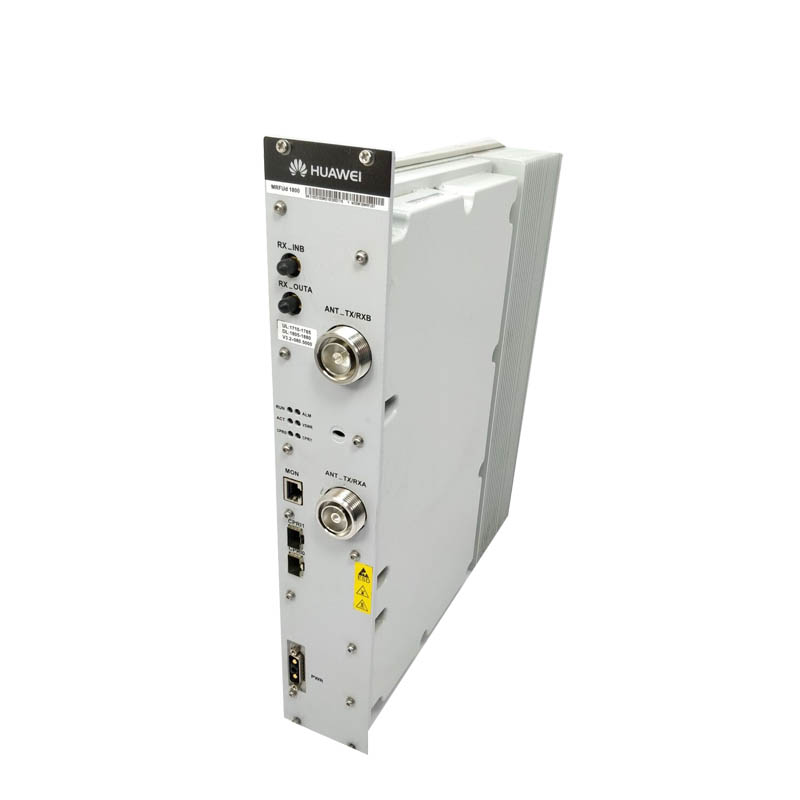

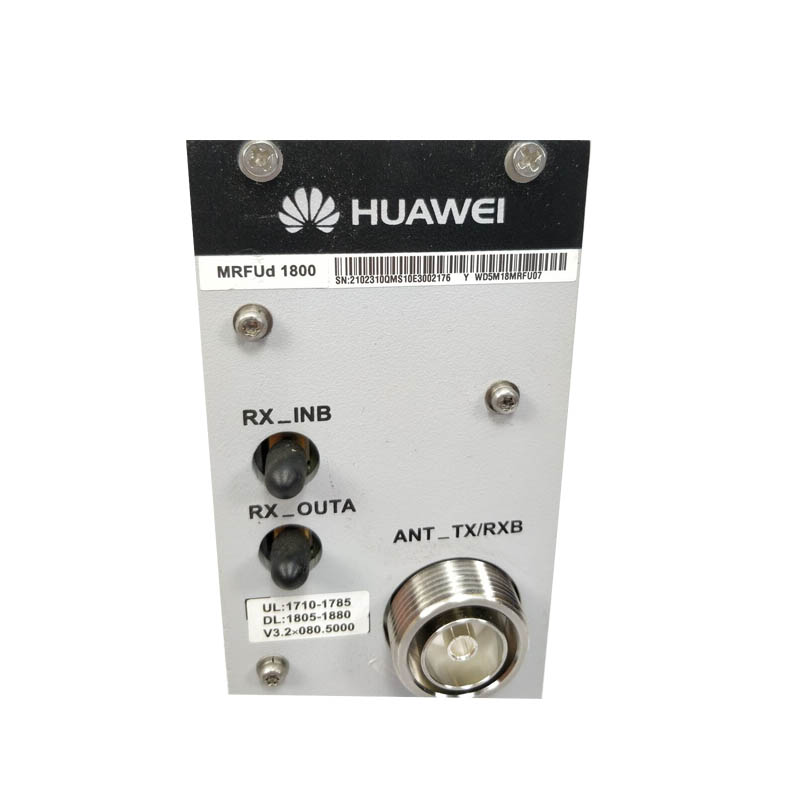

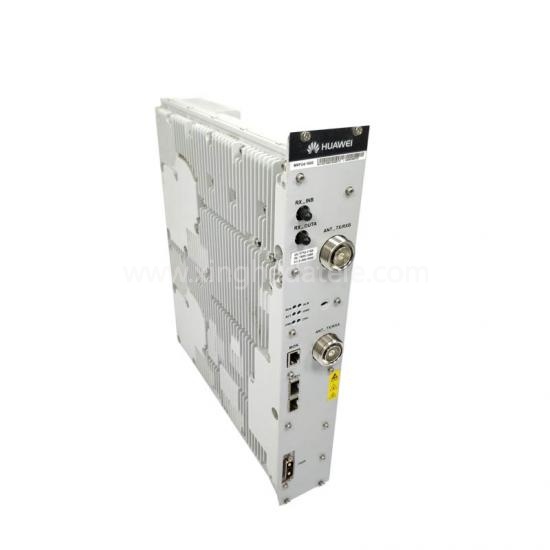

HUAWEI MRFUd WD5MIFUHG10 02311GNF for BTS3900/BTS5900

HUAWEI MRFUd WD5MIFUHG10 02311GNF for BTS3900/BTS5900

Product Description

Huawei GSM-R Products

Base Station Sub-System

BTS3900/BTS3900A

BTS3900 is a indoor macro BTS and BTS3900A is for outdoor. This base station features greater transmit power, higher reliability and LTE Evolution.

Frequency Band:

E-GSM: 880-915(35MHz)

ER-GSM 873-880(7 MHz)

Transmitting Diversity, 4-way Receiving Diversity

Top Power:

ER frequency band: 60W

E frequency band: 80W

Static receiving sensitivity: -112.5 dBm

Outdoor BTS3900A us of stronger acclimatization: -40℃~+50℃, IP55 protection lever

DBS3900

The DBS3900 GSM features a distributed architecture and consists of two basic fuction modules: BBU and RRU.

These basic modules can be flexibly configured to meet requurements for different capacities and in different application scenarios for GSM network.

RRU

Frequency 900M EGSM/ 900M RGSM

Sensitivity:-113dBm/1-Way Receiver -116 dBm/2-Way Receiver

TOC: 30W per TRX

Protection level: IP65

Temperature: -40℃~+50℃(without solar radiation)

BBU

Weight: 7 to 12KG

Capacity: 36 TRXs

Power Consumption: 50W

Protection level: IP20

Temperature: -20℃~+50℃

BSC6000

BSC6000 is responsible for radio resource management, base station management and power control.

Max equivalent BHCA: 5,900 k

Traffic volume: 24,000

Number of TRXs: 2,048

Number of configuren PDCHs: 30,720

Gb interface through put: 1,536 Mbit/s

Power consumption:≤3200W

Network Sub-System

eCNS300

The eCN300 depliys all CN NEs of GSM-R in single cabinet, including MSC Server, UMG and HLR based on the unified ATCA platform. Futhermore eCNS300 is evolution for LTE.

The typical configuaration is MSC Server, eHLR, and eUMG sharing one subrack.

Specification is:

Maximum subscribers: 50000

System Reliability:≥99.999%

Weight: ≤200KG

Power Consumption: ≤2200W(housing MSC server + eHLR + eUMG)

USN9810

Huawei USN9810 is a unified service node that can be deployed in Evolved Packet Core(EPC) systems.

ATCA platform

Maximum subscribers: 12,000,000

Maximum bearers: 24,000,000

Number of eNodesBs: 50000

Number of S-GWs and P-GWs: 4096

Weight:

UGW9811

The Huawei proprietary UGW9811(UGW9811) is a unified packet gateway that can be deployed in Evolved Packet Core(EPC) systems, it provides the functionalities of serving gateway(S-GW), PND gateway(P-GW).

Maximum bearers: 5,000,000(SPUs in active/standby mode)

Maximum data throughput: 120 Gbit/s(SPUs in active/standby mode)

Maximum APNs: 3,000

Maximum eNodeBs: 100,000

Weight: Dimensions:(H)2200mm x (W)600mm x (D)800 mm

Operation Support System

iManager U2000

The iManager U2000 centrally manages Huawei mobile network elements(NEs), including BSS and NSS. The U2000 provides basic functions, such as configuration management, performance management, fauly management, security management, log management, topology management, software managementm and system management. It also provides various optionak functions.

Product Details

Our Advantages

We have Huawei MRFUd for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Huawei MRFUd , like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Huawei MRFUd  represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
