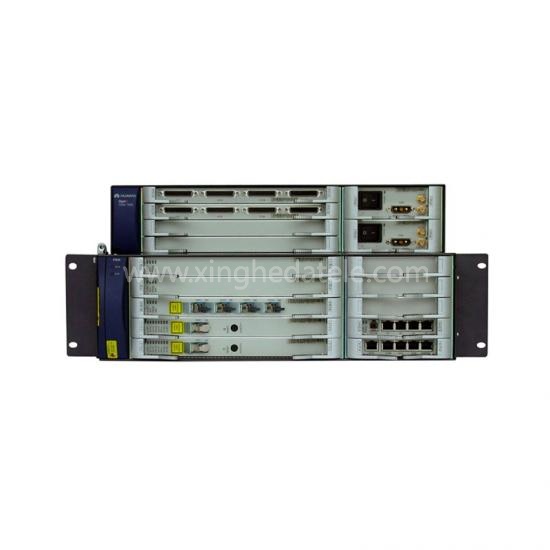

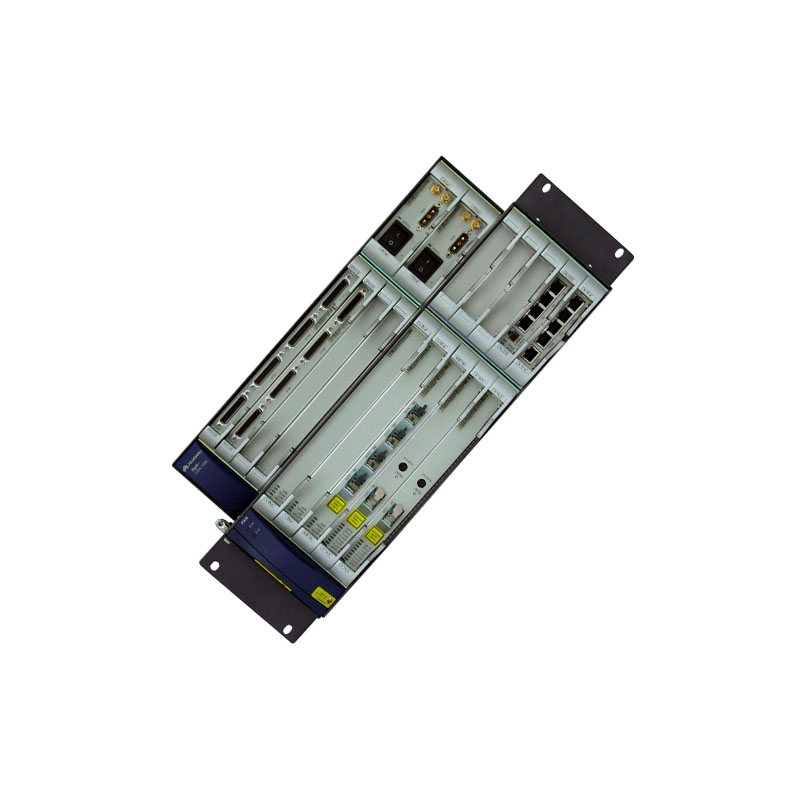

Huawei OptiX OSN1500B

Huawei OptiX OSN1500B

Product Description

Product characteristics

◆ Platformization with high performance-price ratio: it is fully compatible with OptiX OSN7500/3500/2500 business boards and software, forming a unified platform, greatly reducing the cost of maintenance and spare parts. In terms of business capabilities, it can be combined efficiently to provide operators with the most cost-effective solutions; At the same time, it can be mixed with Huawei's existing equipment to form a network, and can be integrated into Huawei's optical network management solution for unified management.

◆ Multi-service provision: the service interface supports STM-1 (O/E); Support STM-1/4/16 standard or cascade service; Support E1/T1/E3/T3/E4; Support the transparent transmission and exchange of FE and GE businesses; Support ATM business; Support SAN business and video business and provide GMPLS-based fast end-to-end business. It can realize flexible equipment configuration and support online upgrade of network equipment from 622M to 2.5G.

◆ Large-capacity scheduling: support 20G high-order full crossover, high-order 128 × 128 VC-4, low-order 8064 × 8064 VC-12 or equivalent VC-3 crossover capability.

◆ Built-in wavelength division technology and flexible networking: OSN1500B equipment supports built-in WDM technology to realize the transmission of multiple wavelengths in a single optical fiber, and can realize flexible networking scheme of docking with wavelength division equipment.

◆ Highly integrated subrack and: single subrack has 9 business boards and 4 interface boards.

◆ Flexible installation mode: box-type equipment, with a height of 5U [the upper 2U is the interface area, and the lower 3U is the processing board], can support the installation of 19 "cabinets, ETSI 300 deep cabinets, and wall-mounted three installation modes. SQB9RACK03 N66T assembled cabinet (2200x600x600mm) (19 inches) can generally meet most user needs. The specific model and size need to be adjusted according to the user's actual machine room environment requirements.

OptiX OSN 1500A

The power supply is connected to - 48V DC, and the AC 110V/220V connection is realized through the external UPM;

Installation method: wall-mounted installation and installation in ETSI 300mm deep cabinet, ETSI 600mm deep cabinet and 19-inch cabinet;

Size 131mm high × 444mm (width) × 262mm (deep);

Typical weight 12.7kg; Typical power consumption 135W

OptiX OSN 1500B

The power supply is connected to - 48V DC, and the AC 220V is connected through the external UPM;

Installation method: wall-mounted installation and installation in ETSI 300mm deep cabinet, ETSI 600mm deep cabinet and 19-inch cabinet;

Size 221mm high × 444mm (width) × 262mm (deep);

Typical weight: 16kg; Typical power consumption is 160W.

Product Details

Our Advantages

We have HUAWEI OSN1500B for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

HUAWEI OSN1500B, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

HUAWEI OSN1500B represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
