Huawei STM-16/STM-4 level MSTP OSN2500 Subrack with 12 service slots,
equipped with 2xSSQ1PIU, 1xSSQ1SAP.
Min.Order Quantity::
1 pcPrice::
NegotiableDelivery Time::
3-5 dayswarranty time::
six monthsPlace of Origin::
ChinaPayment Terms::
T/T, Western Union, MoneyGram
Huawei OSN 2500 Optical Transmission Fiber Transceiver SDH PDH
Product Description
Specifications
OSN 2500
Dimensions
472 mm (H) x 447 mm (W) x 295 mm (D)
Switch Capacity
TDM: 60 Gbit/s (higher order), 20 Gbit/s (lower order)
Service Slots
12 slots for processing boards and 8 slots for interface boards
Supported Interfaces
MSTP interfaces
STM-16/4/1, E1/E3/E4/T1/T3, FE/GE, DDN, IMA/ATM, FEC/EFEC,SAN, Video
WDM interfaces
40-channel DWDM interfaces, compliant with ITU-T G.694.1
8-channel CWDM interfaces, compliant with ITU-T G.694.2
Power Supply
DC: -48V DC or -60V DC
AC: 220V/110V AC
Clock Synchronization
Line clock source
Tributary clock source
Two external clock inputs/outputs (2 MHz or 2 Mbit/s)
Auxiliary Interface
Orderwire interface, NNI connection interfaces
management serial interface, serial interfaces, 64 kbit/s codirectional data channel, 10M/100M NM interface, commissioning interface
Alarm interface, Cabinet alarm indicator interface
Developed by Huawei for highly efficient voice and data services transmission on a single platform, the OptiX OSN 2500 offers an intelligent, next-generation optical transmission solution. Used at the access and convergence layers of the Metropolitan Area Network (MAN), the OptiX OSN 2500 can also be networked with the other Huawei equipment to optimize customer investment.

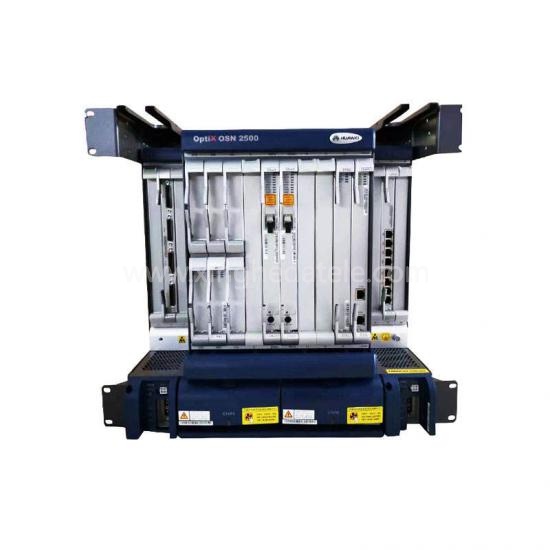

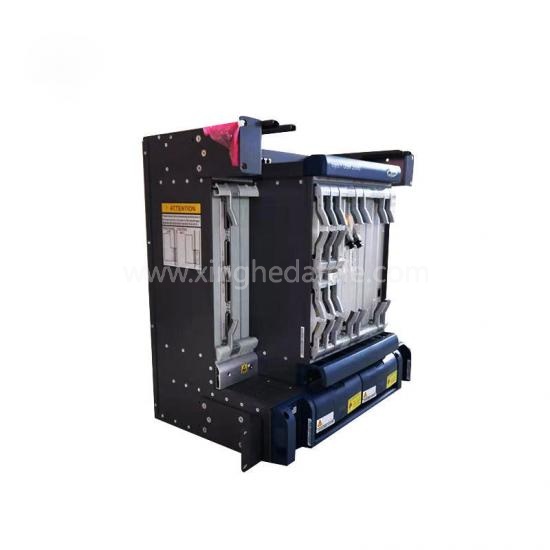

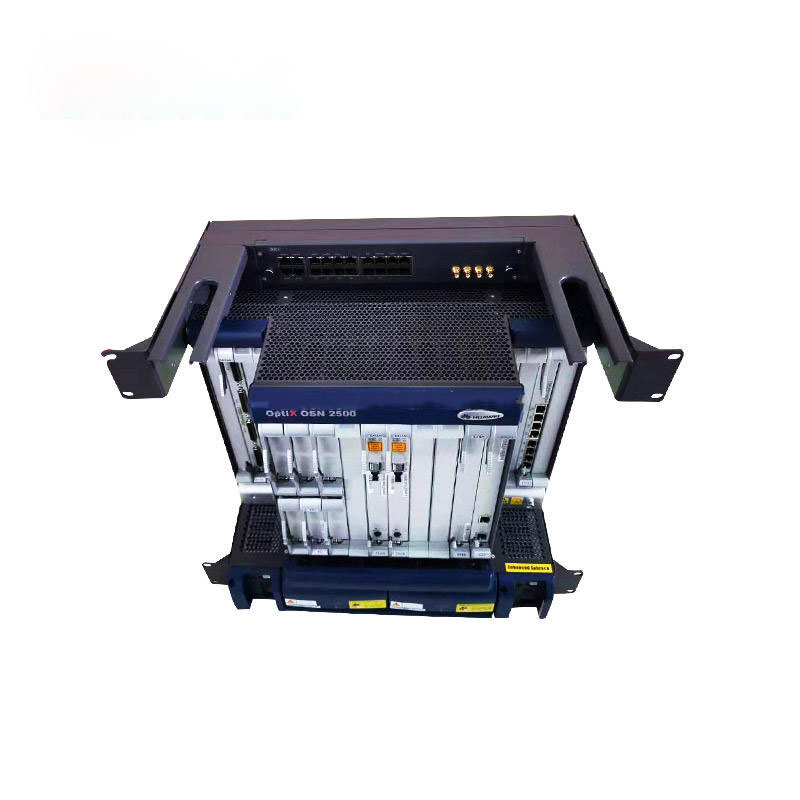

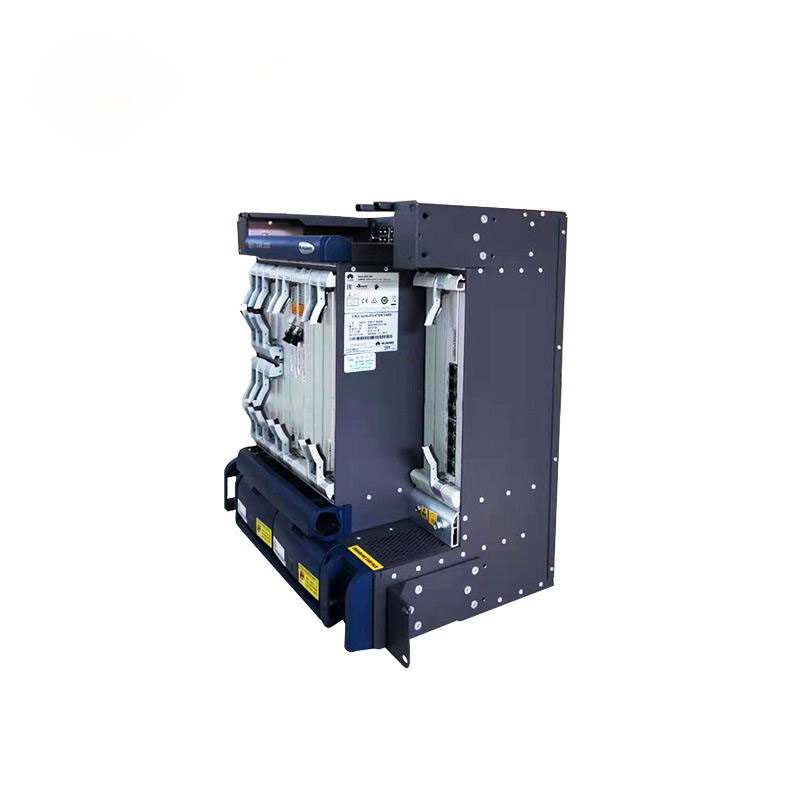

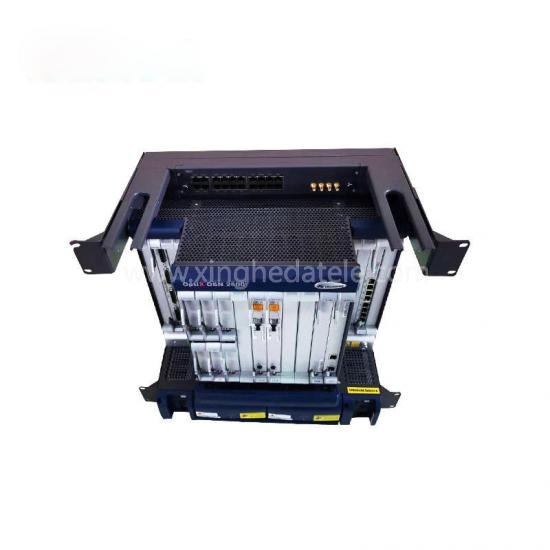

The HUAWEI OptiX OSN 2500 subrack has a one-layer structure. The subrack consists of the slot area for processing boards, slot area for interface boards, slot area for the auxiliary interface board, power supply area and fan area.
The OptiX OSN 2500 subrack has only one layer. The left portion and right portion of the subrack, where eight slots are present, are slot areas for interface boards. The middle portion of the subrack, where ten slots are present, is the slot area for processing boards.
Product Details
Our Advantages
We have Huawei OSN2500 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei OSN2500, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei OSN2500 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
