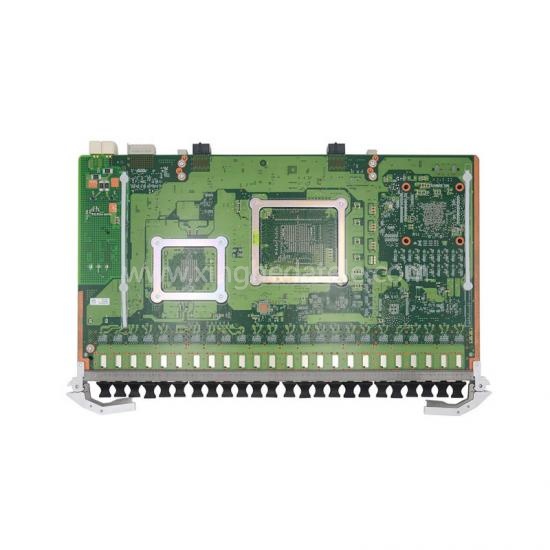

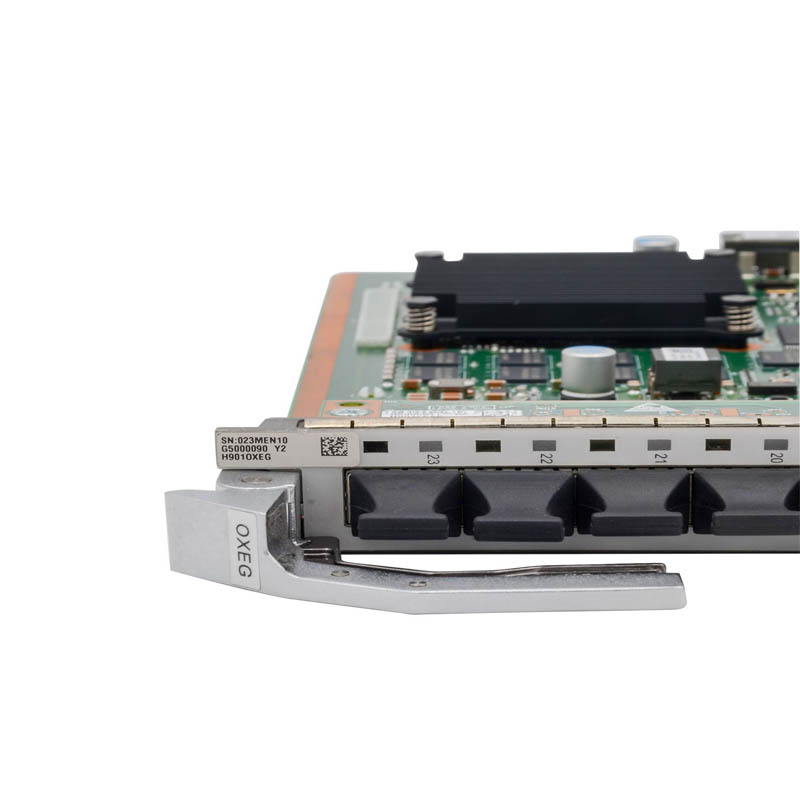

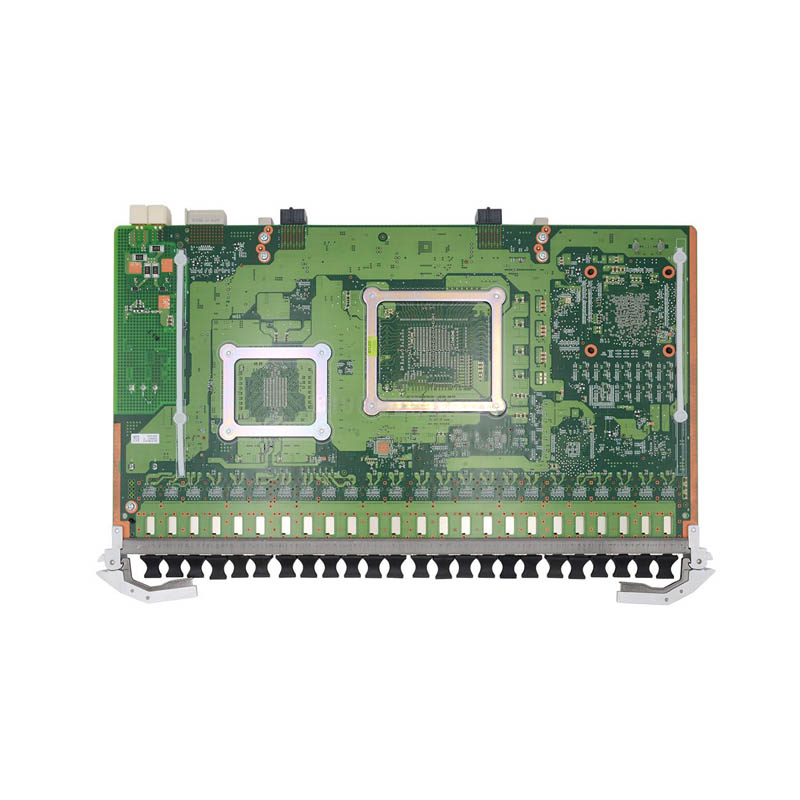

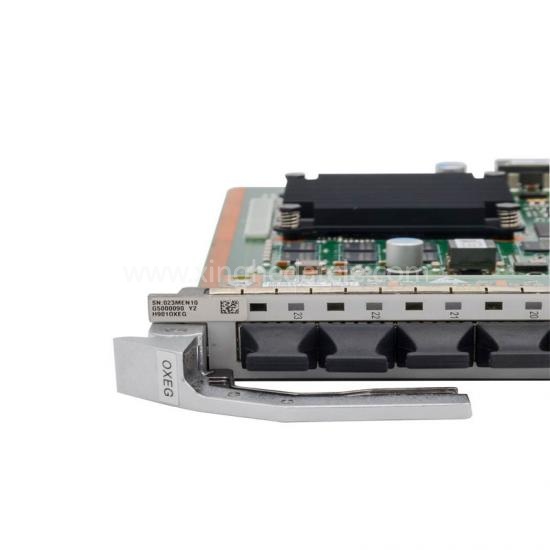

Huawei OXEG 24-Port 10GE/GE P2P Optical Interface Board H901OXEG for MA5800 Series olt

Whether you need new products or renovated products, takes comprehensive

warranty as the standard.we only purchase green market equipment of the

highest quality . All these are provided at the best possible price.

  • Min.Order Quantity::

    1 pc
  • Price::

    Negotiable
  • Delivery Time::

    3-5 days
  • warranty time::

    six months
  • Place of Origin::

    China
  • Payment Terms::

    T/T, Western Union, MoneyGram
  • Share To :
  • Facebook
  • Twitter
  • Linkedin
  • Youtube
  • Pinterest

Huawei OXEG 24-Port 10GE/GE P2P Optical Interface Board H901OXEG for MA5800 Series olt

Product Description

SmartAX MA5800 Full-service Virtualized OLT Building a convergence access network that is green, ultra-broadband, and intelligent.

The MA5800 series multi-service access device is the first OLT in the industry with distributed architecture. Developed using virtual access technology, it provides a unified carrying platform for multiple services, such as broadband, wireless, video, and monitoring.

The MA5800 provides GPON, XG-PON, XGS-PON, GE, and 10GE access, and supports POL, FTTH, FTTB, FTTC, and D-CCAP network construction modes. It carries all services over one fiber network, simplifying network architecture and reducing OPEX.

The MA5800 supports capacities for large, medium, and small products, meeting requirements in different scenarios.

parameter
MA5800-X17
MA5800-X15
MA5800-X7
MA5800-X2
Size (width x depth x height)
493x287x486mm
442x287x486 mm
442x268.7x263.9 mm
442x268.7x88.1 mm
The maximum number of ports supported by a single frame
272 × GPON / EPON
816 × GE / FE
136 × 10G GPON / 10G EPON
136 × 10G GE
544 × E1
240 × GPON / EPON
720 × GE / FE
120 × 10G GPON / 10G EPON
120 × 10G GE
480 × E1
112 × GPON / EPON
336 × GE / FE
56 × 10G GPON / 10G EPON
56 × 10G GE
224 × E1
32 × GPON / EPON
96 × GE / FE
16 × 10G GPON / 10G EPON
16 × 10G GE
64 × E1
MPU exchange capacity
7 Tbit / s
480 Gbit / s
MAC addresses
262143
ARP / routing table entries
64K
Operating temperature
-40 ℃ ~ + 65 ℃ (work)
-25 ℃ ~ + 65 ℃ (restart)
* 65 ℃ refer to operational block inlet temperature.
Operating Voltage
-38.4 ~ -72 V DC power supply
DC power supply: -38.4V ~ -72V
AC power supply: 100V ~ 240V
Layer 2 features
VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE +, DHCP option82
Layer 3 features
Static routing, RIP, OSFP / OSPFv3, IS-IS, BGP / BGP4 +, ARP, DHCP relay, VRF
MPLS & PWE3
LDP, RSVP-TE, MPLS OAM, tunnel protection switching, TDM / ETH PWE3, PW protection switching, MPLS BGP IP VPN
IPv6
IPv4 and IPv6 dual stack, IPv6 Layer 2 and Layer 3 forwarding, DHCPv6 relay
Multicast
IGMPv2, IGMPv3, IGMP proxy with the listener, VLAN-based multicast IPTV
QoS
Traffic classification, prioritization, traffic policing trTCM based, HQoS, traffic shaping, WRED, PQ / WRR / PQ + WRR, ACL
System Reliability
GPON type B, type C protection;
EPON type B, type D protection;
XG-GPON and the 10G EPON type B protection;
Between the plate and the inner plate LAG, MSTP;
Master and upgrade service boards continued business.


Product Details

Huawei H901OXEG

Huawei H901OXEG

Our Advantages

We have Huawei H901OXEG for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.


Huawei H901OXEG, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.


Huawei H901OXEG represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
