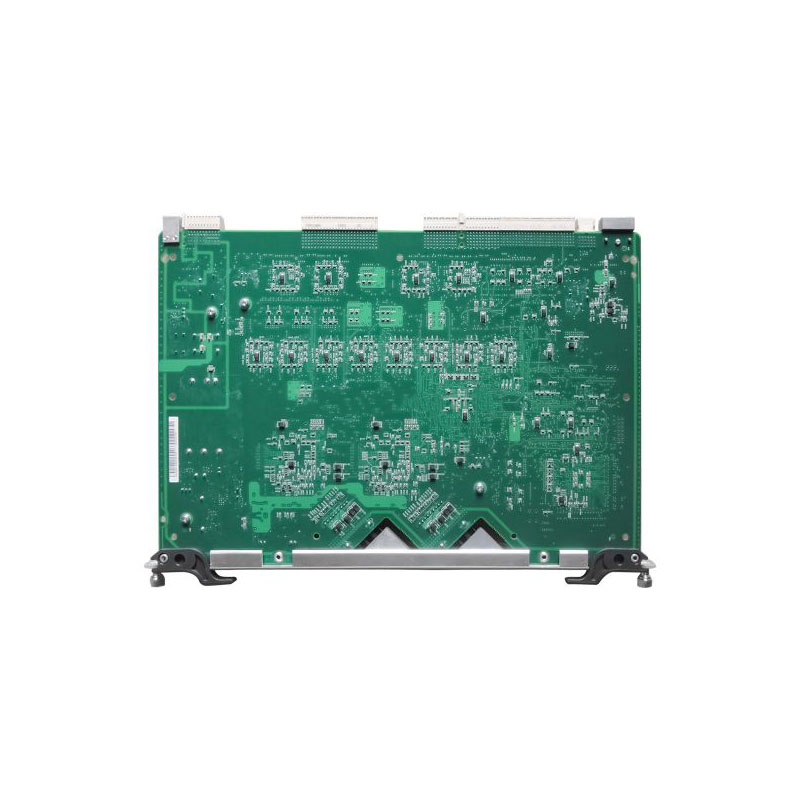

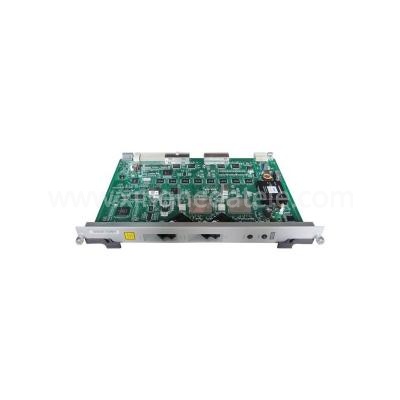

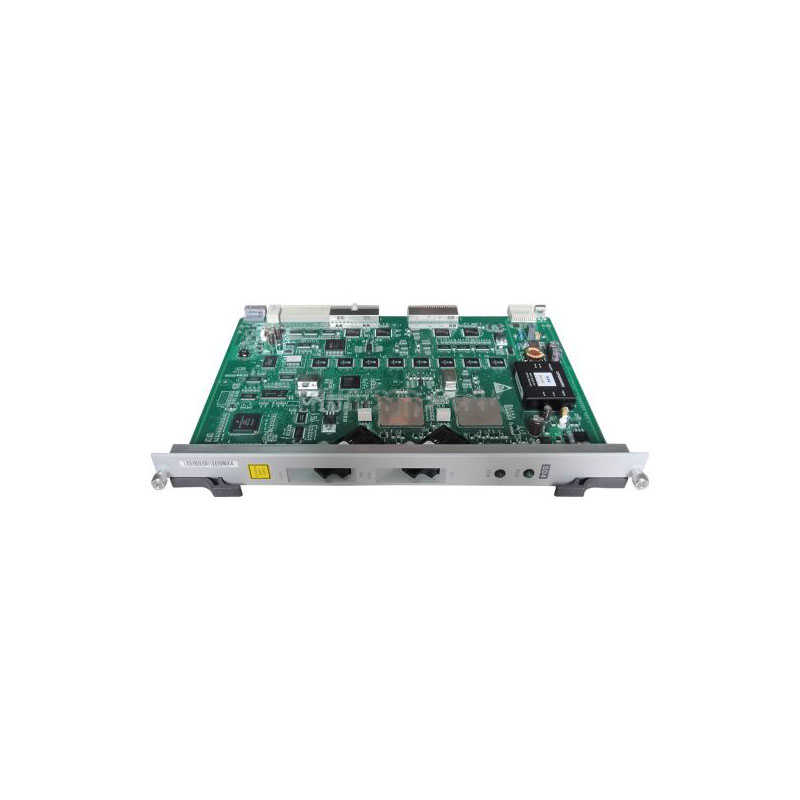

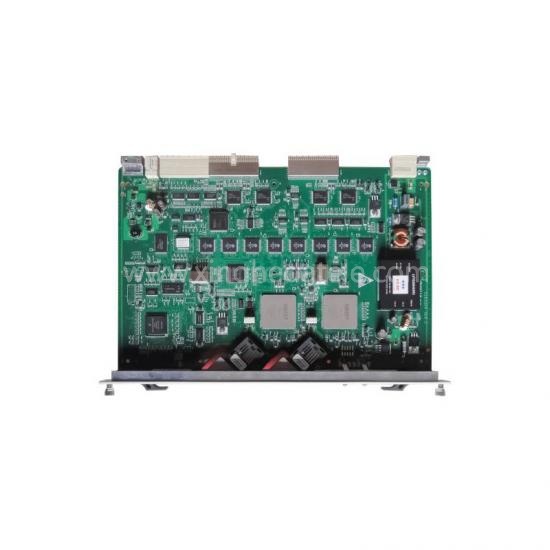

Huawei Metro 3000 2-port STM-4 622M optical interface board
SS63SD401 equipped with 2 S-4.1 15km SFP module
Min.Order Quantity::
1 pcPrice::
NegotiableDelivery Time::
3-5 dayswarranty time::
six monthsPlace of Origin::
ChinaPayment Terms::
T/T, Western Union, MoneyGram
Huawei SD4 SSD1SD4 SS63SD4 SS63SD401-S4.1 for HUAWEI SD4 2500 Metro 3000 Metro3000
Product Description
–8 to –15
Valid Slot
The SS63SD4(S-4.1,SC) can be installed in slot IU4–IU9 in the Metro 3000 subrack.
Feature Code
The number code that follows the board name in the bar code is the feature code of the board. The feature code of the SS63SD4(S-4.1,SC) indicates the type of optical interface.
Board
Feature Code
Type of Optical Interface
SS63SD401
01
S-4.1
Optical Interface Parameter
Nominal bit rate
622.08 Mbit/s
Line code pattern
NRZ
Application code
S-4.1
Maximum transmission distance(km)
15
Operating wavelength(nm)
1310
Launched optical power range (dBm)
Receiver sensitivity (dBm)
-28
Least Overload (dBm)
-8
Power consumption(W)
21
Mechanical Specifications
Dimensions (mm)
340 (H) x 32 (W) x 218.5 (D)
Weight (kg)
0.77
2xSTM-4 Optical Interface Board S-4.1,SC
Apply to Huawei Metro 3000 to transmit/receive 2xSTM-4 optical signals, at Max distance 15km.
Supports VC-4-4C concatenated service.
HUAWEI SS63SD4 S-4.1,SC is a 2-ports STM-4 optical interface board, can be used on Huawei Metro3000. SS63SD4 S-4.1,SC part number is 03034096, model name is SS63SD401. SS63SD4 S-4.1,SC comes with 2 units S-4.1 SFP module, transmission distance is 15km. SFP module is swappable to perform different transmission distance.
Huawei Metro 3000" generally refers to a series of optical transmission systems designed for metropolitan area networks MANs. These systems are used for high-speed optical communication and provide metro-area connectivity for various telecommunications services.
Product Details
Our Advantages
We have HUAWEI SS63SD4 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
HUAWEI SS63SD4, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
HUAWEI SS63SD4 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
