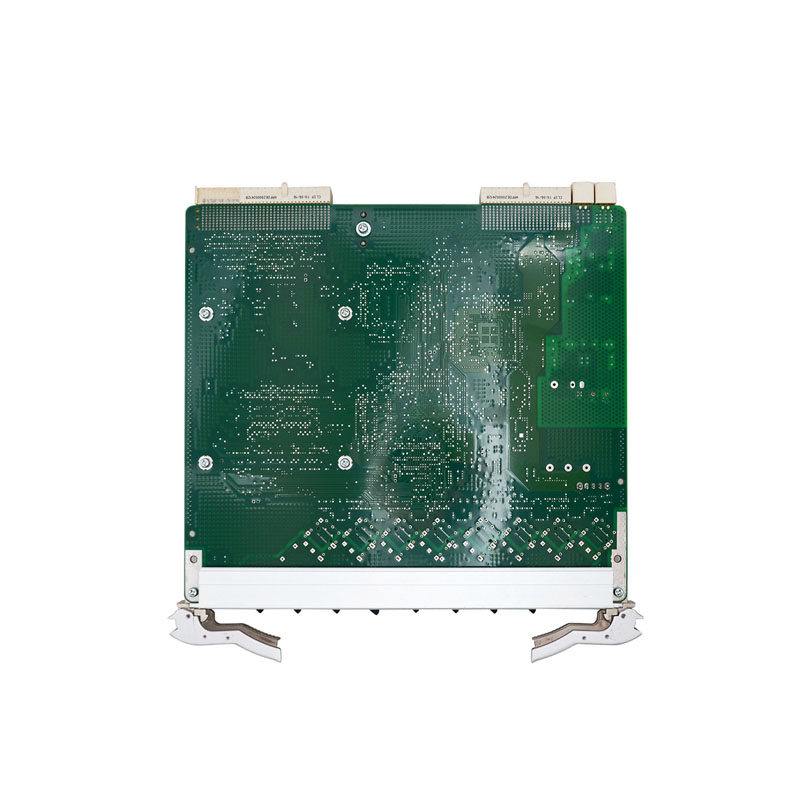

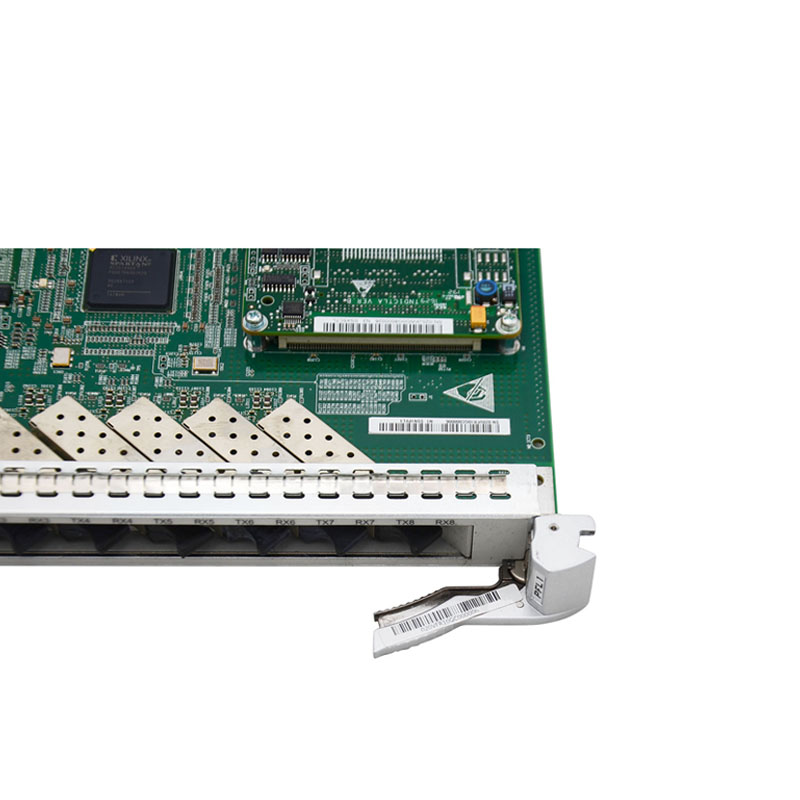

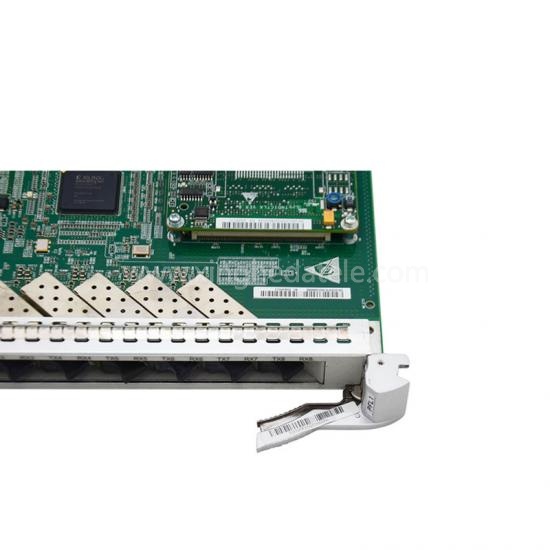

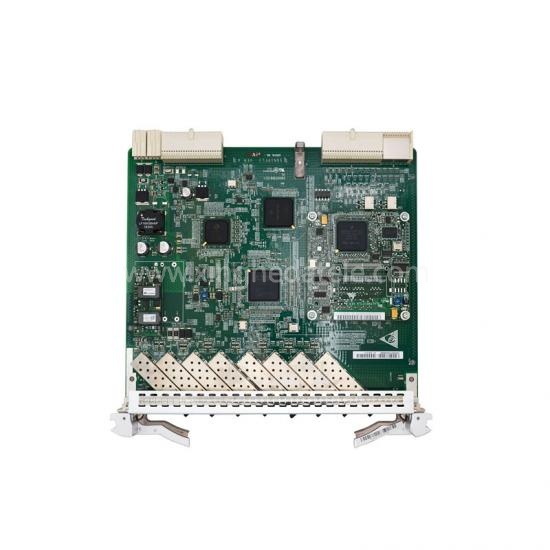

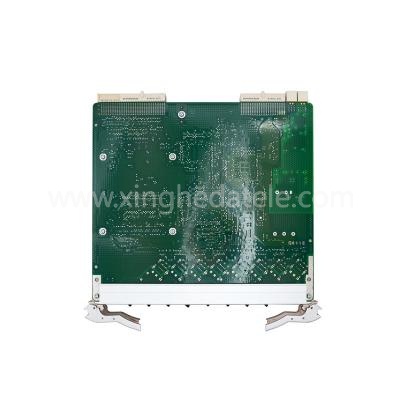

HUAWEI SSN1PFL1 03053866 OSN3500 Optical Processing Board
Product Description
Processes E1 optical signals and overhead, and supports alarms, performance events, and maintenance functions.
Includes client-side receive/transmit module, mapping/de-mapping module, interface conversion module, logic and control module, clock module and power supply module.
The PFL1 as a PDH processing board, which can be used on the OptiX OSN series of equipment to receive/transmit and process 8xE1 optical signals.
Huawei OSN3500 8xE1, PFL1 optical processing board
The PFL1 is available in a functional version, N1.
The PFL1 can be installed in slots 1-8 and slots 11-16.
| Setting | Value |
| Basic functions | PFL1 can process 8xE1 optical signals. |
| Service processing | Receives/transmits and processes 8 E1 optical signals. |
| Supports transparent transmission according to IEEE C37.94 standard to meet the transmission requirements of relay protection equipment in the electric power industry. | |
| Optical Port Specifications | Supports I-2M optical ports, complying with the standards set by Huawei. |
| Optical module specifications | Supports detecting and querying information about an optical module. |
| Allows you to set the on/off state of a laser and supports the Automatic Laser Shutdown (ALS) function. | |
| Supports the use and monitoring of eSFP optical modules, facilitating the maintenance of optical modules. | |
| Treatment of overheads | Handles path overhead at the VC-12 level, such as J2 bytes. |
| Performance alarms and events | Provides various alarms and performance events, facilitating equipment management and maintenance. |
| Maintenance functions | Supports inloops and outloops on optical ports. |
| Supports hot reset and cold reset. Warm resets do not affect running services. | |
| Support card manufacturer information query. | |
| Supports in-service FPGA loading. | |
| Supports card software upgrades without affecting running services. | |
| Support PRBS function. | |
| Hot board swap. | |
| Protection scheme | TPS protection is not supported. |
