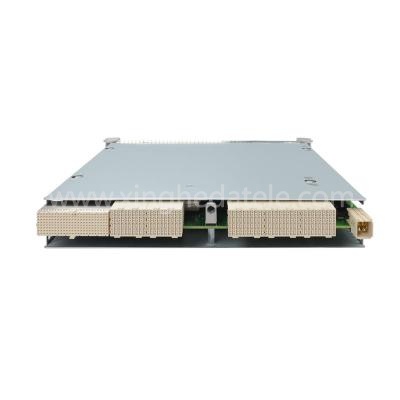

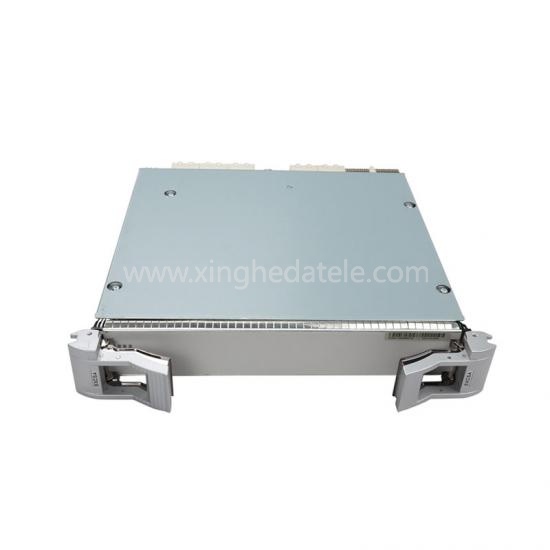

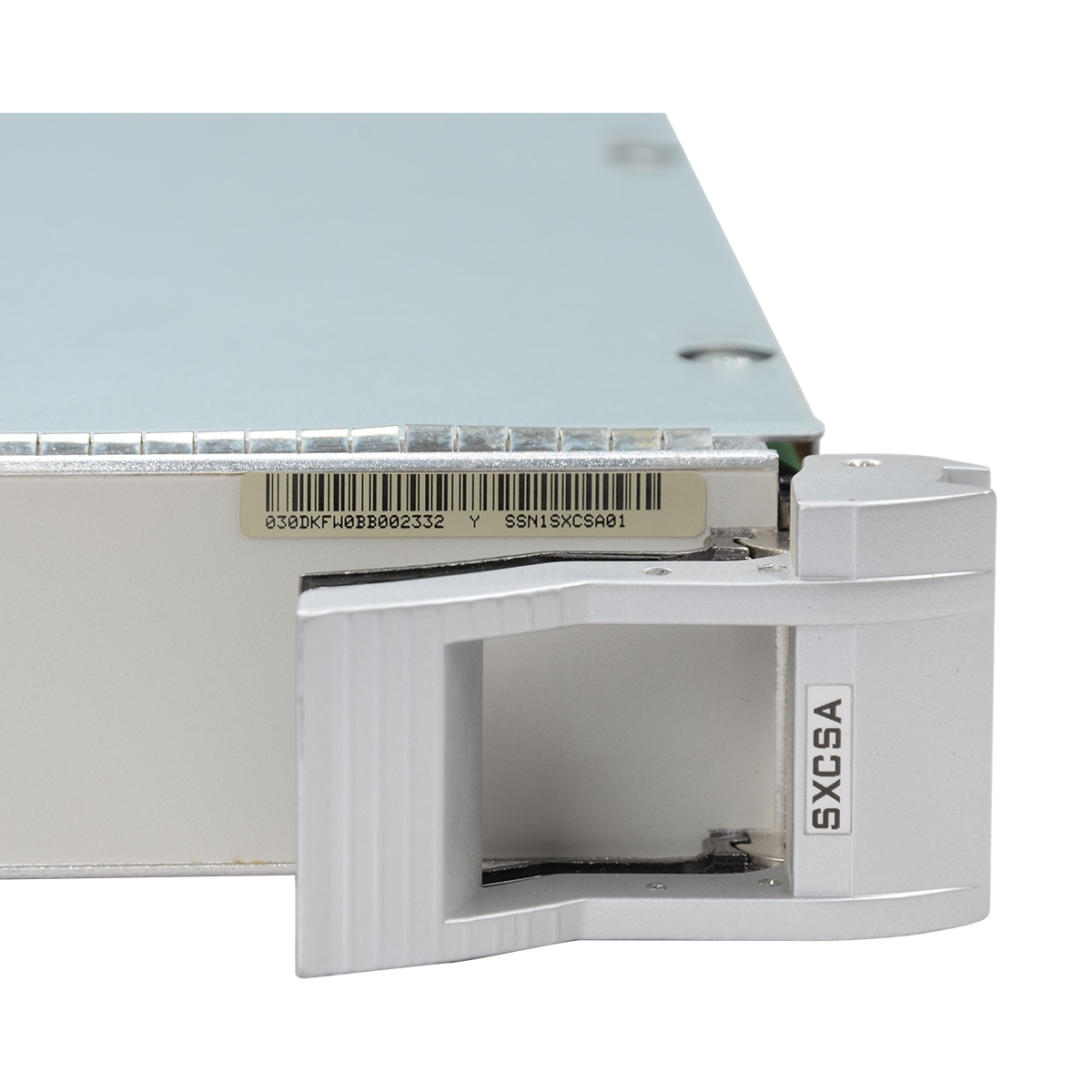

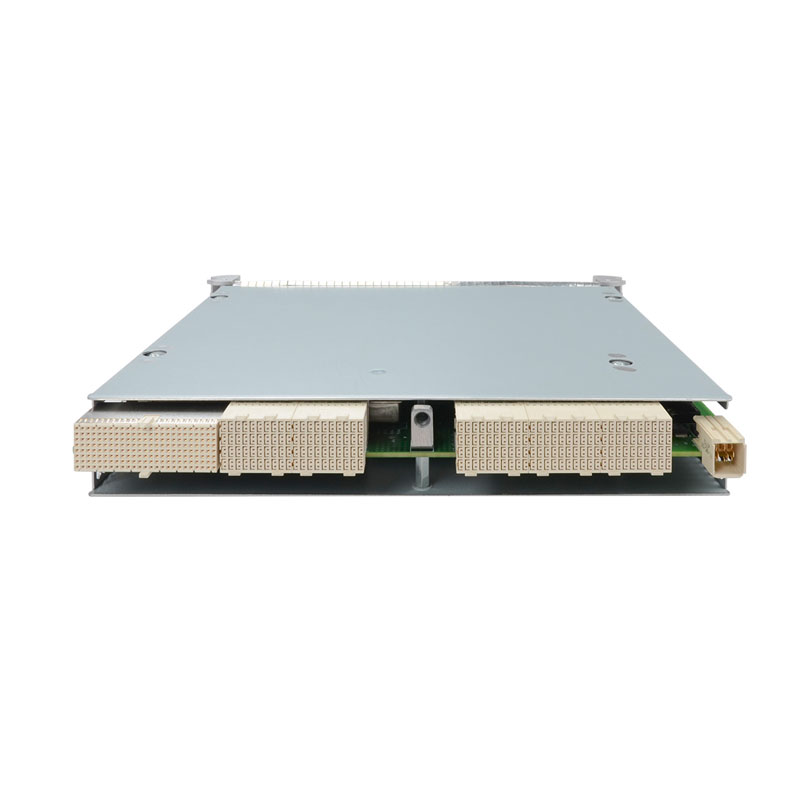

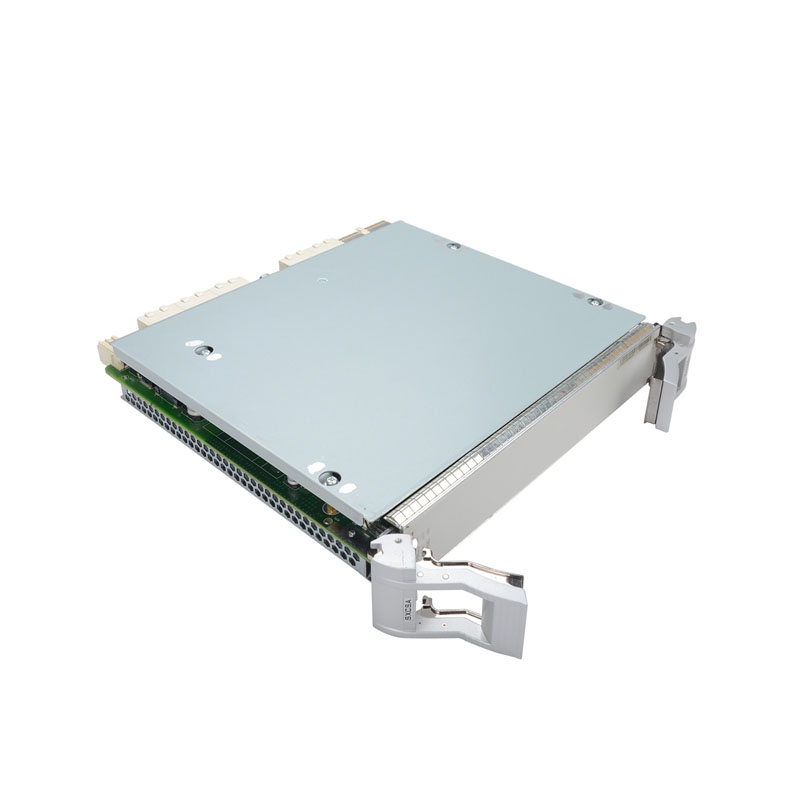

Huawei SSN1SXCSA 03030DKF Cross-Connect Board

Huawei SSN1SXCSA 03030DKF Cross-Connect Board

Product Description

Huawei SSN1SXCSA Board Product Overview

Huawei SSN1SXCSA Board (SXCSA for short) provides functions such as service scheduling, clock input, and output in the Huawei OSN3500 optical transceiver system. Huawei SXCSA boards support functions and features such as service scheduling and clock input and output.

Huawei SSN1SXCSA supercross clock board supports cross clock board to provide timing information to other boards in the system, to achieve the aggregation and scheduling of various services, to complete the communication with other boards in the system and to configure and manage other boards. The Huawei SXCSA board consists of a synchronization timing module, a cross-connect module, communication and control module, and a power module.

Huawei SSN1SXCSA Board Product Feature

Protection method

Supports 1 + 1 hot backup of the crossover of the board and the clock unit, and the protection mode is non-recovery by default.

provide standard system synchronized clock.

Supports the processing of S1 byte to implement clock protection switching.

Support SSM information, clock ID extraction, insertion and processing functions.

Provide real-time RTC.

Through the AUX board:

Support input/output 2 timing signals with an impedance of 75Ω and frequency of 2MHz or 2048kbit / s, and provide the function of selecting external timing sources.

Support input/output 2 timing signals with an impedance of 120Ω and frequency of 2MHz or 2048kbit / s, and provide the function of selecting external timing sources.

The clock function provides real-time RTC.

Supports high-precision clock synchronization and meets the IEEE 1588v2 protocol. Access time information through the S1 to S4 and ALMI4 interfaces of AUX. S1, S3, and ALMI4 correspond to the first off-road time, and S2, S4, and ALMI4 correspond to the second off-road time.

Product Details

Our Advantages

We have Huawei SSN1SXCSA for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Huawei SSN1SXCSA, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Huawei SSN1SXCSA represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
