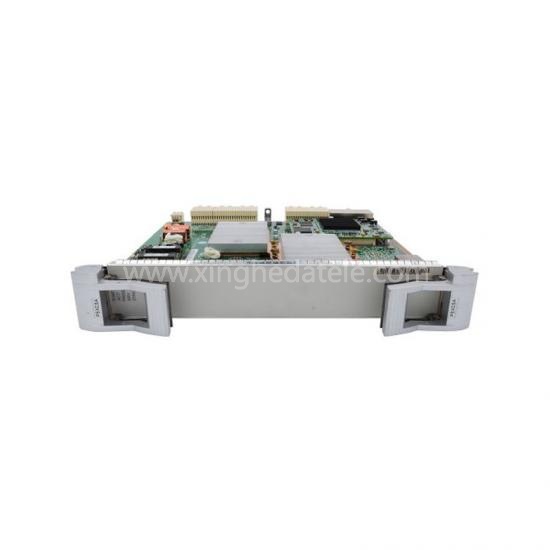

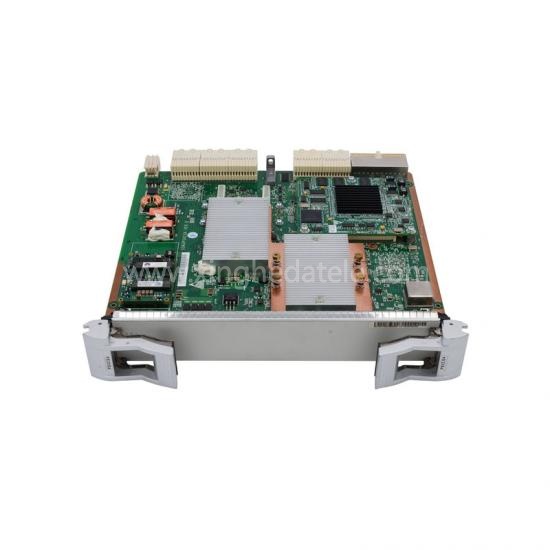

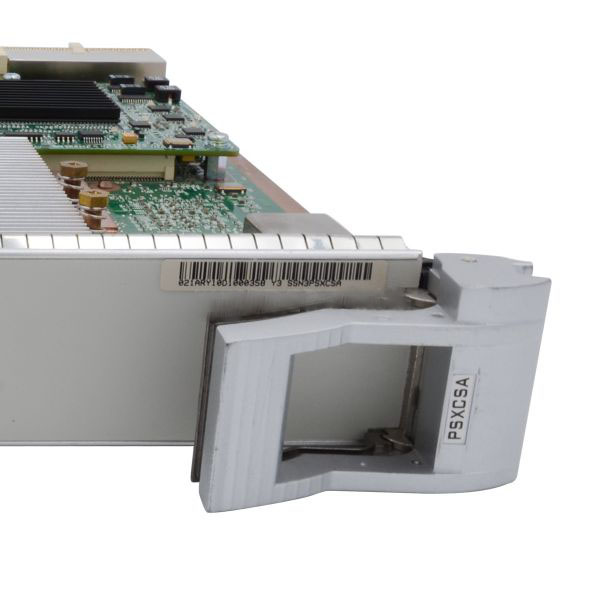

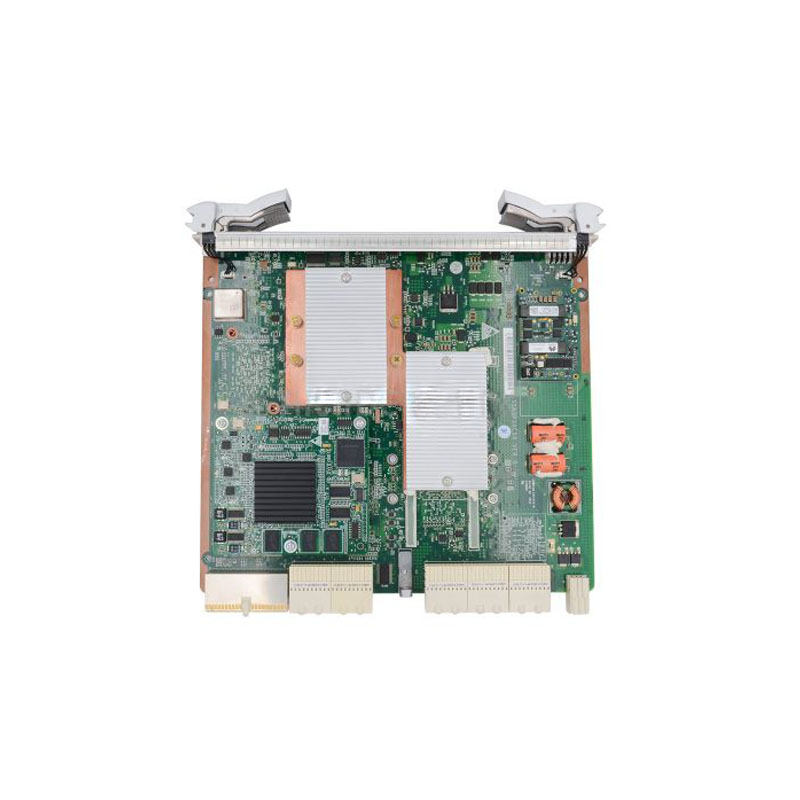

HUAWEI SSN3PSXCSA 03021ARY Huawei OSN3500 Super dual-plane cross-connect and timing board

HUAWEI SSN3PSXCSA 03021ARY Huawei OSN3500 Super dual-plane cross-connect and timing board

Product Description

OSN 3500-200G TDM and 100G Packet Switching and Synchronous Timing Board.

Higher order cross-connect capacity: 200 Gbit/s

Lower order cross-connect capacity: 20 Gbit/s

Access capacity: 155 Gbit/s.

Supports the SNCP protection at the VC-4-4c, VC-4-8c, VC-4-16c, VC-4-64c, VC-4, VC-12, VC-3, and AU-3 levels.

Supports VC-4-4c, VC-4-8c, VC-4-16c, and VC-4-64c concatenation services.

Supports a maximum of 40 linear MSP protection groups.

Supports a maximum of 12 ring MSP protection groups.

Supports the standard system synchronization clock.

Supports the real-time clock (RTC)

Supports the processing of the S1 byte to realize the clock protection switching.

Supports the extraction, insertion, and management of the SSM and clock ID.

Supports the 1+1 Hot Backup for the Cross-Connect and Timing Units protection schemes.

PSXCSA is a Super dual-plane Cross-Connect board for Huawei OSN3500, provide 200G High order, 20G Low order Cross-Connect capacity and 155G Access capacity. PSXCSA have N2 and N3 version, N3 version part number is 03021ARY.

Product Details

Our Advantages

We have HUAWEI SSN3PSXCSA for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

HUAWEI SSN3PSXCSA, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

HUAWEI SSN3PSXCSA represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
