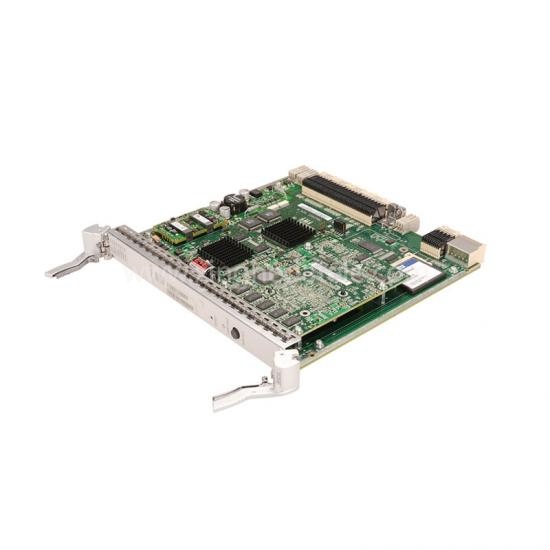

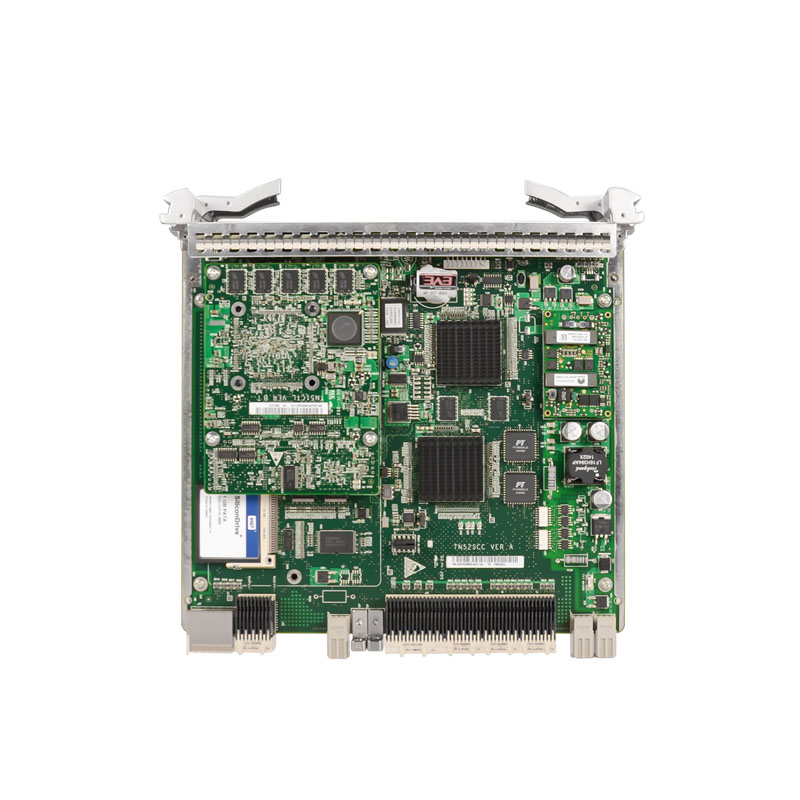

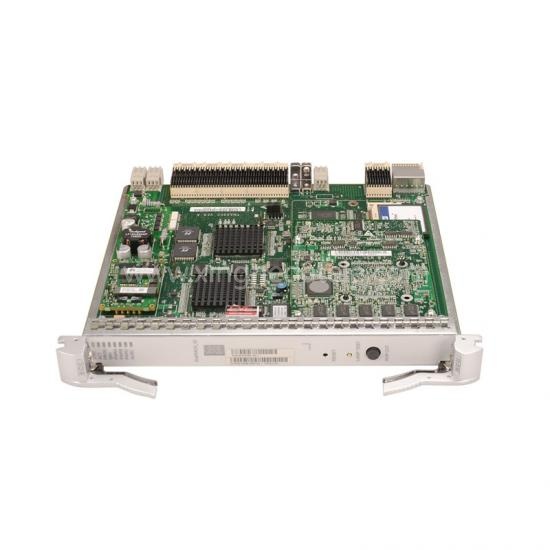

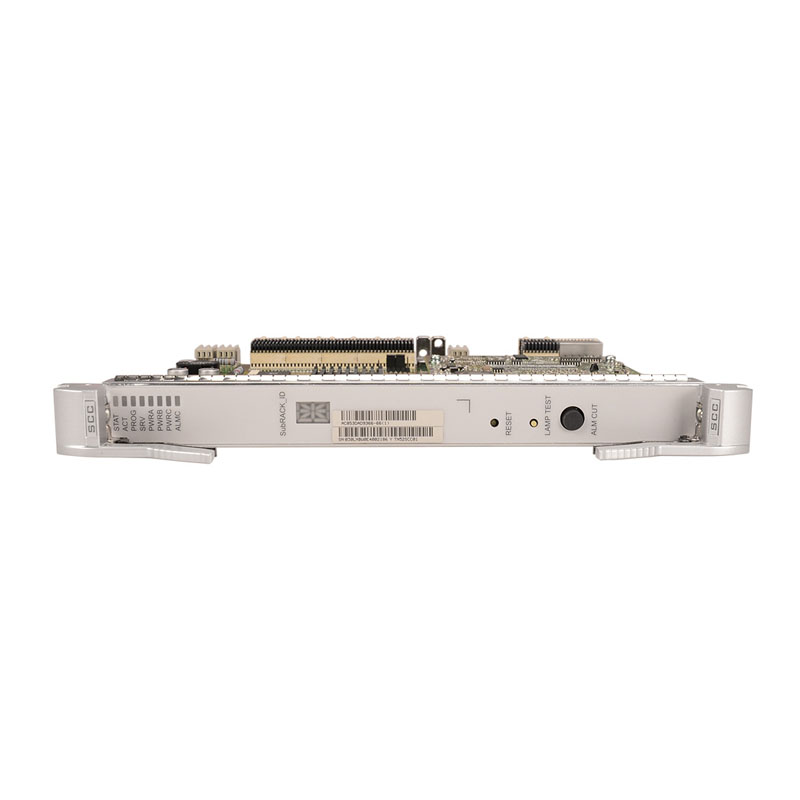

Huawei TN52SCC 03030LNB System control board

Huawei TN52SCC 03030LNB System control  board

Product Description

TN52SCC is a system control and communication board, can apply to Huawei OSN6800 and OSN8800 T32. TN52SCC part number is 03030LNB, some other version like TN11, TN16, TN22, TN23, TN51 and TNK2 with different system compatibility and feature supported.

In addition to service convergence, transmission, and cross-connection, the OptiX OSN 6800 supports 3 Level dynamic traffic diversion (optical cross-connection, ODU cross-connection, and the integrated LAN switch). The product features manageability like SDH/SONET and the large capacity and long distance transmission of WDM systems. With advanced technologies, such as Flexgrid ROADMs, wavelength tunable optical modules, 10G/40G/100G, the Layer 2 Switch, the OptiX OSN 6800 has a flexible architecture and suitable for broadband transport.

OSN6800 OSN8800 T32 system control and communication board.

Can substitute for TN51SCC.

Accomplishes the service grooming, configuration management and alarm output of a subrack.

Supports the backup of the NE data.

Supports the function of the CF card to back up the database.

Supports interconnection and communication between NEs through IP over DCC, OSI over DCC, or HWECC.

Supports active/standby backup: There are two SCCs in the system that can provide 1+1 hot backup.

Supports clock source for the system communications.

Supports subrack cascading.

Supports Optical-layer ASON.

Supports Electrical-layer ASON.

Our Advantages

We have Huawei TN52SCC for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Huawei TN52SCC, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Huawei TN52SCC represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
