Product Description

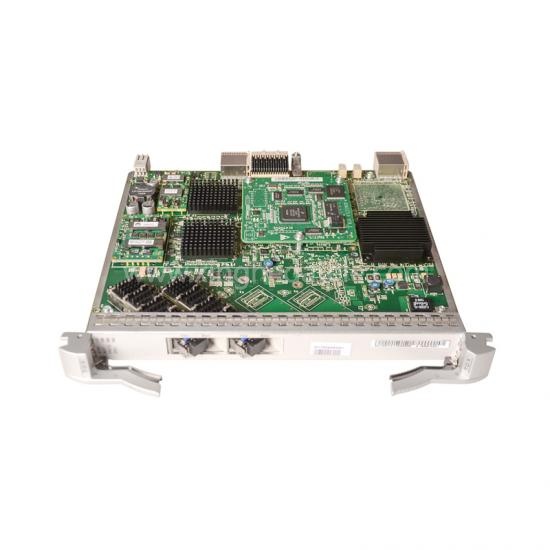

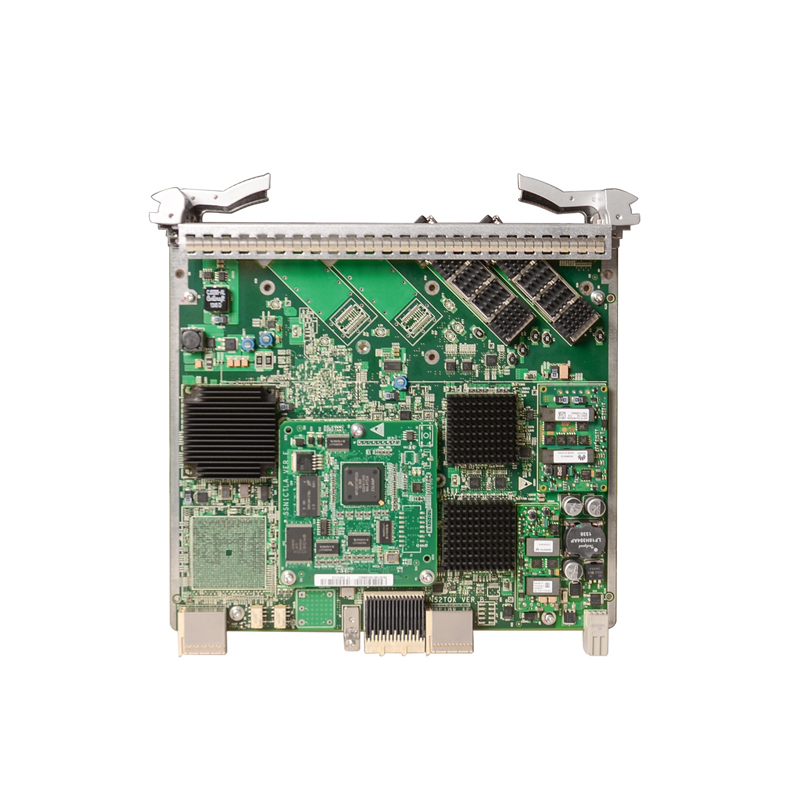

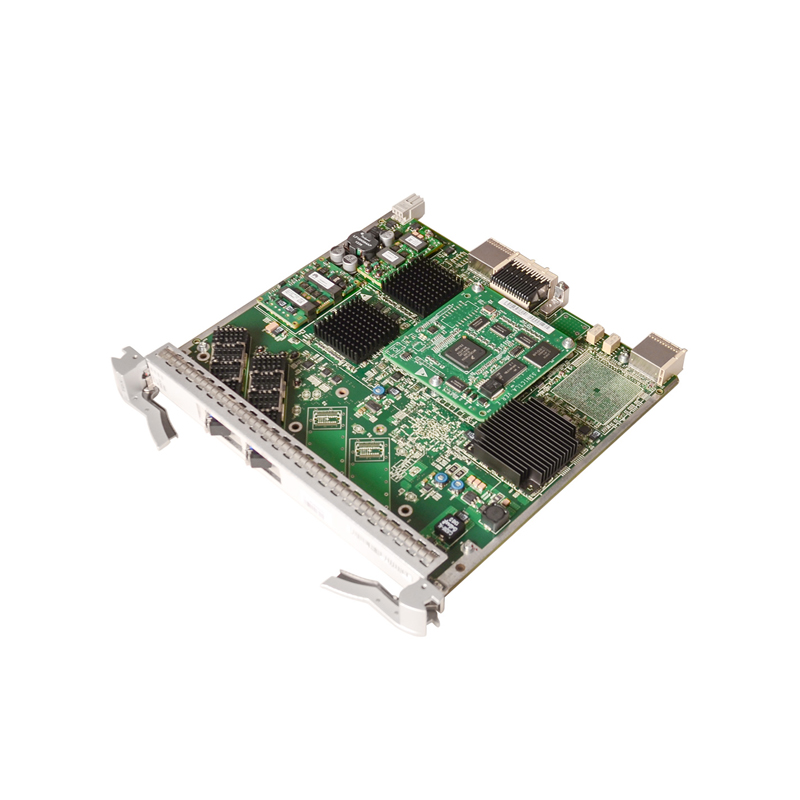

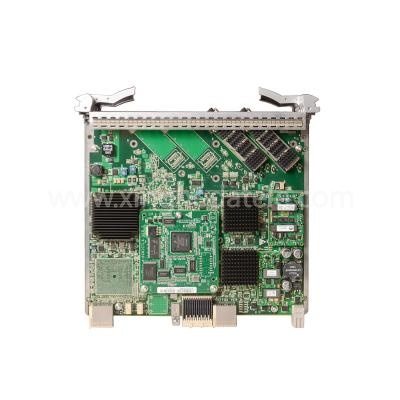

2x10G tributary service processing board on Huawei OSN6800 OSN8800.

Equipped with 2PCS 10G-80km-XFP client-side pluggable modules.

TDX has functional versions of TN11, TN12, TN52 and TN53 with different features supported, TN53TDX can substitute for TN12/52TDX without any software upgrade.

STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s.

10GE LAN: Ethernet service at a rate of 10.31 Gbit/s.

10GE WAN: Ethernet service at a rate of 9.95 Gbit/s.

OTU2: OTN service at a rate of 10.71 Gbit/s.

OTU2e: OTN service at a rate of 11.1 Gbit/s.

FC800: SAN service at a rate of 8.5 Gbit/s.

FC1200: SAN service at a rate of 10.51 Gbit/s.

Supports the cross-connection of two ODU2/ODU2e signals between the TDX and the cross-connect board through the backplane.

Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.

The mapping process is compliant with ITU-T G.709 and G.Sup43.

Supports PM functions for ODU2.

Supported ESC function when the client-side service type is OTU2 or OTU2e.

Supports the PRBS function on the client side.

The board supports the LPT function only when the client-side service type is 10GE LAN.

Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the service type is OTU2/OTU2e.

Supports the remote monitoring (RMON) of Ethernet services (10GE LAN).

Supports the ALS function on the client side when client services are non-OTN services.

Supports test frame function when client-side service is 10GE LAN and Port mapping is MAC Transparent Mapping (10.7 G).

Supports Electrical-layer ASON.

Supports ODUk SNCP.

Supports client 1+1 protection.

Supports tributary SNCP protection.

Ethernet service mapping mode: Bit Transparent Mapping(11.1G), MAC Transparent Mapping(10.7G).

TN52TDX01 is 2x10G OTN tributary board applied to Huawei OSN6800 OSN8800, converts between two channels of 10GE LAN/10GE WAN/STM-64/OC-192/OTU2 optical signals and eight channels of ODU1 virtual concatenation electrical signals or two ODU2/ODU2e electrical signals using cross-connections. Two TN52TDX01 work with one NS3 board to perform 10G to 40G.

Our Advantages

We have Huawei TN52TDX01 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Huawei TN52TDX01, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Huawei TN52TDX01  represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
