Huawei TN53NS2 WDM Board

Huawei TN53NS2 WDM Board

Product Description

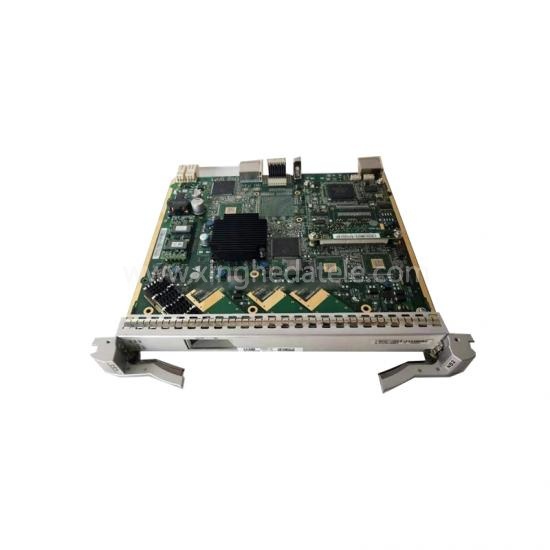

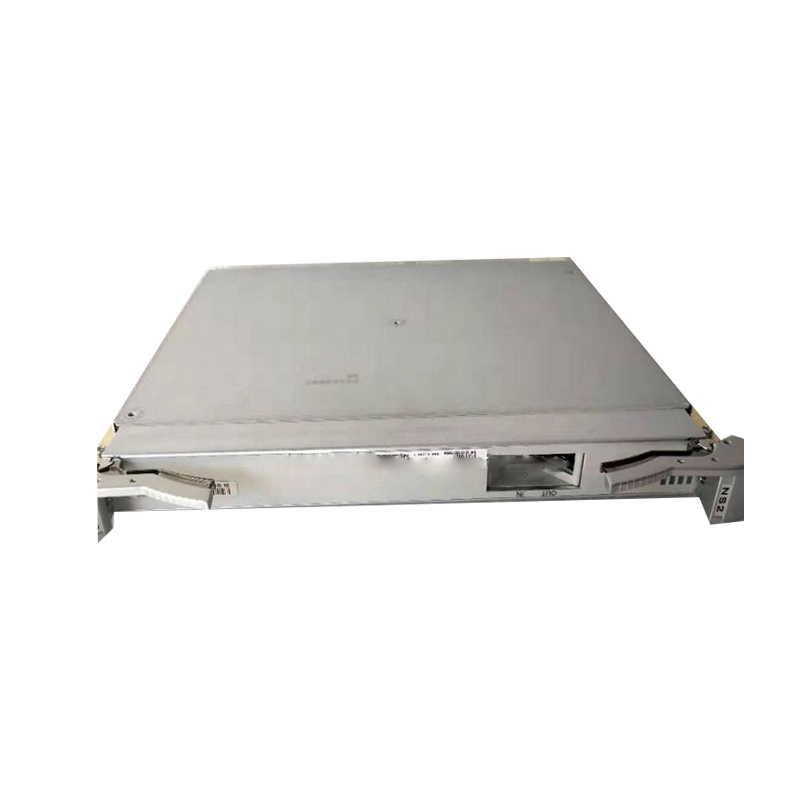

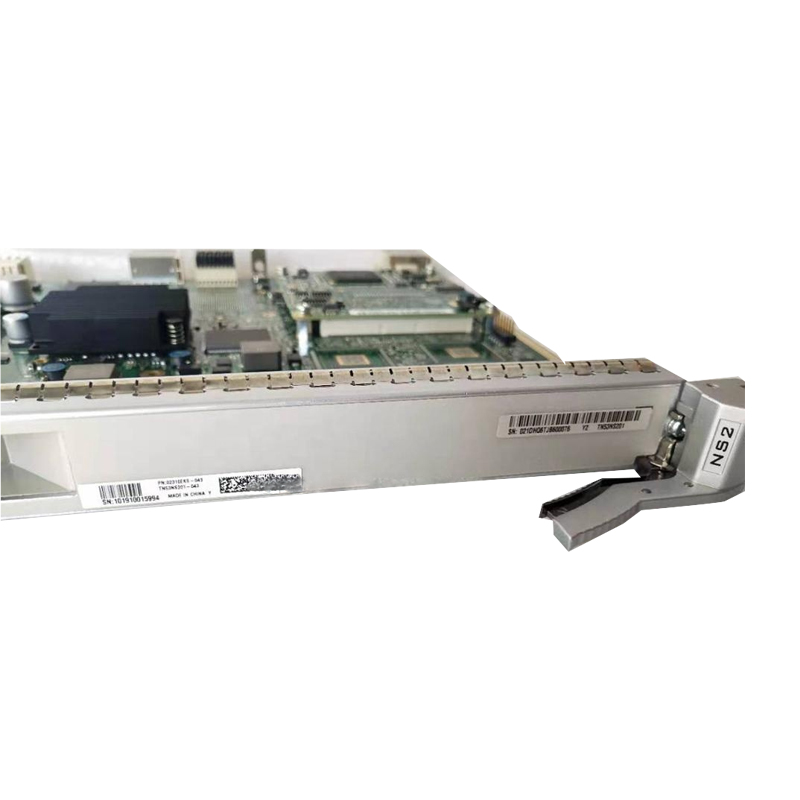

Huawei TN53NS2 WDM Board Product Overview

The NS2 board belongs to the line type board, and realizes the mutual conversion of the following signals: 8 x ODU0 / 4 x ODU1 / 1 x ODU2 / 2 x ODUflex1 x OTU2 or 1 x ODU2e1 x OTU2e. OTU2 / OTU2e is the wavelength of DWDM standard that complies with ITU-T G.694.1 recommendation. Support ODU0, ODU1, ODUflex mixed transmission.

TN11NS2 / TN12NS2 / TN52NS2 / TN53NS2 single board realizes the conversion between 4 ODU1 signals and 1 OTU2 signal

The NS2 board supports functions and features such as electrical layer crossover, OTN interface, and ESC.

Only OptiX OSN 8800 supports ODU0 / ODUflex.

Only OptiX OSN 8800 and OptiX OSN 6800 support ODU2 / ODU2e signals.

Huawei TN53NS2 WDM Board Product Feature

Support DWDM technical specifications.

Support wavelength dimmable module. Can achieve:

The wavelength-division side optical signal is adjustable in the 40-wave range of the C-band 100 GHz interval.

The wavelength-division side optical signal is adjustable in the 80-wave range of the C-band 50 GHz interval.

The WDM side supports the PRBS function.

TN52NS2T04 / TN52NS2T05 / TN52NS2T06 / TN52NS201M01 / TN52NS201M02 / TN53NS2 In the following scenarios, you need to enable the PRBS function on both the local and remote circuit boards to make PRBS effective.

Working in standard mode and configured with ODU0 / ODU1 / ODUflex cross-connect, or working in compatible mode and not configured with cross-connect.

The wavelength division signals of the TN11NS2 / TN12NS201M02 / TN12NS201M03 / TN12NS2T02 / TN12NS2T03 / TN12NS2T04 / TN12NS2T05 boards can be relayed through other TN11LSXR boards.

The signals on the WDM side of the TN12NS2A / TN12NS2B / TN52NS2 / TN53NS2 boards can be relayed through other TN12ND2 / TN52ND2 / TN53ND2 / TN57ND2 / TN55NO2 / TN55NH2 / TN53NQ2 / TN54NQ2 / TN57NQ2 boards.

TN53NS2 supports BC and OC modes, but does not support TC and TC + OC modes.

The TN53NS2 backplane supports when scheduling ODU0 / ODU1 / ODUflex signals.

TN52NS2 / TN53NS2 support

Product Details

Our Advantages

We have HUAWEI NS2 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

HUAWEI NS2, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

HUAWEI NS2 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
