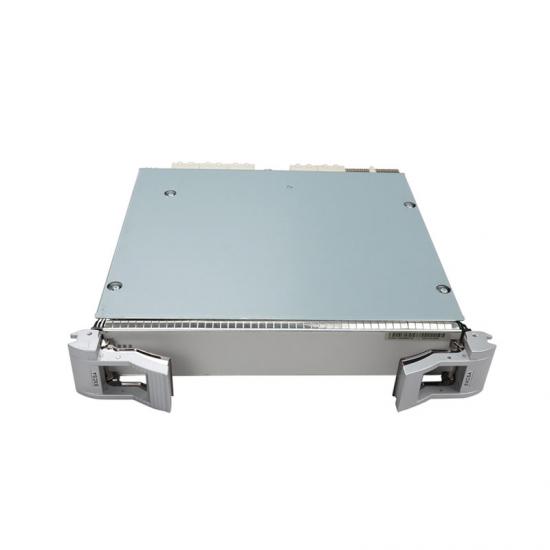

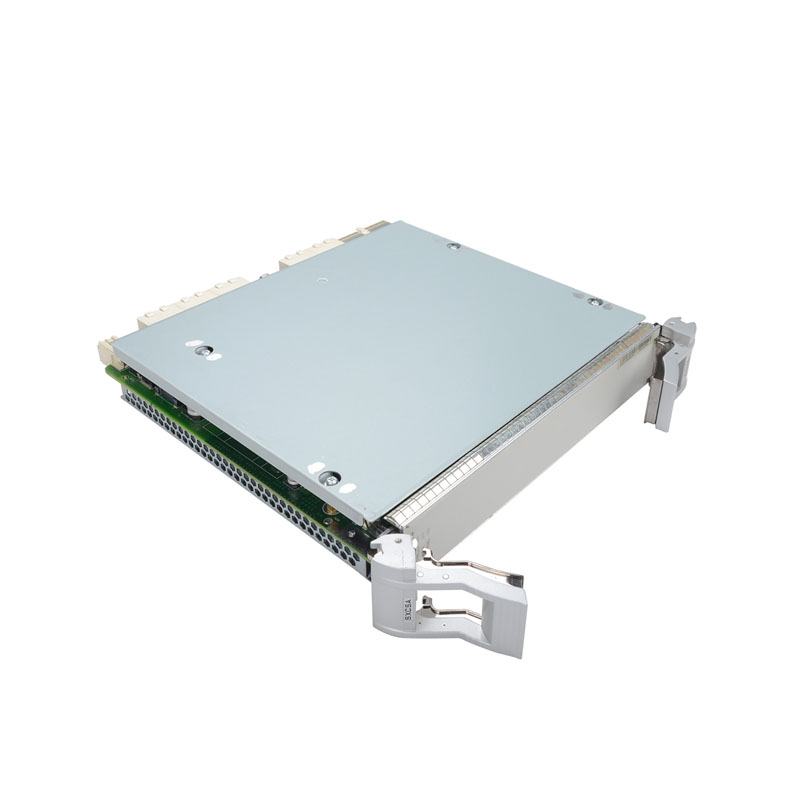

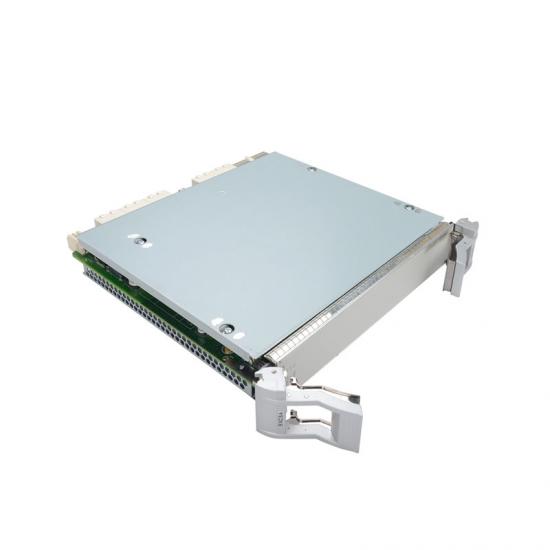

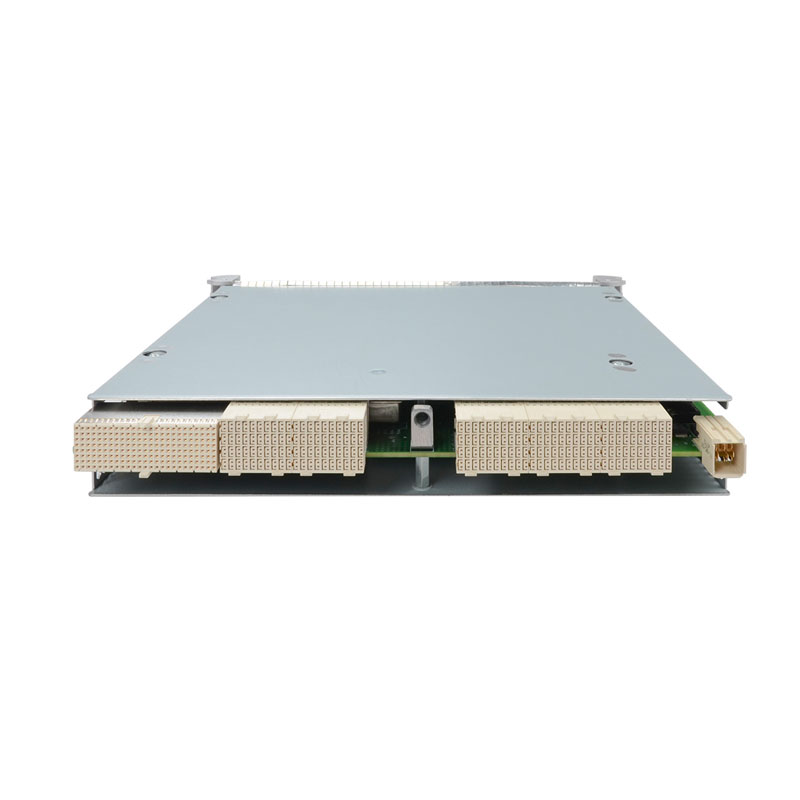

HUAWEI UXCSA SSN1UXCSA 03038341 Ultra Cross-Connect Board

HUAWEI UXCSA SSN1UXCSA 03038341 Ultra Cross-Connect  Board

Product Description

Huawei OSN3500 Ultra Cross-connect and Syschronous Timeing Board.

Higher order cross-connect capacity: 80 Gbit/s.

Lower order cross-connect capacity: 20 Gbit/s.

Access capacity: 58.75 Gbit/s.

Supports the flexible service grooming and supports the fully non-blocking cross-connect, multicast, and broadcast services.

Supports the tact switch and performs the protection switching without interrupting services.

Supports the SNCP protection at the VC-4-4c, VC-4-8c, VC-4-16c, VC-4-64c, VC-4, VC-12, VC-3, and AU-3 levels.

Supports VC-4-4c, VC-4-8c, VC-4-16c, and VC-4-64c concatenation services.

Supports a maximum of 40 linear MSP groups.

Supports a maximum of 12 ring MSP groups.

Supports the 1+1 Hot Backup for the Cross-Connect and Timing Units (non-revertive, by default).

Provides the standard system synchronization clock.

Supports the processing of the S1 byte to realize the clock protection switching.

Supports the extraction, insertion, and management of the SSM and clock ID.

UXCSA is a Ultra Cross-Connect board for Huawei OSN3500, provide 80G High order, 20G Low order Cross-Connect capacity and 58.75G Access capacity. UXCSA have N1 version, part number is 03038341.

Our Advantages

We have HUAWEI SSN1UXCSA for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

HUAWEI SSN1UXCSA, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

HUAWEI SSN1UXCSA represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
