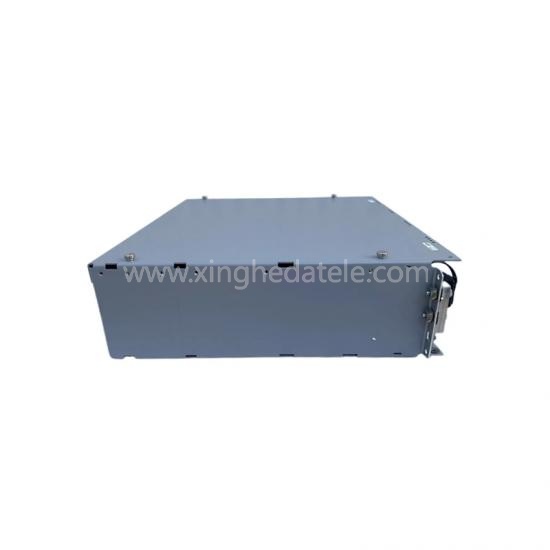

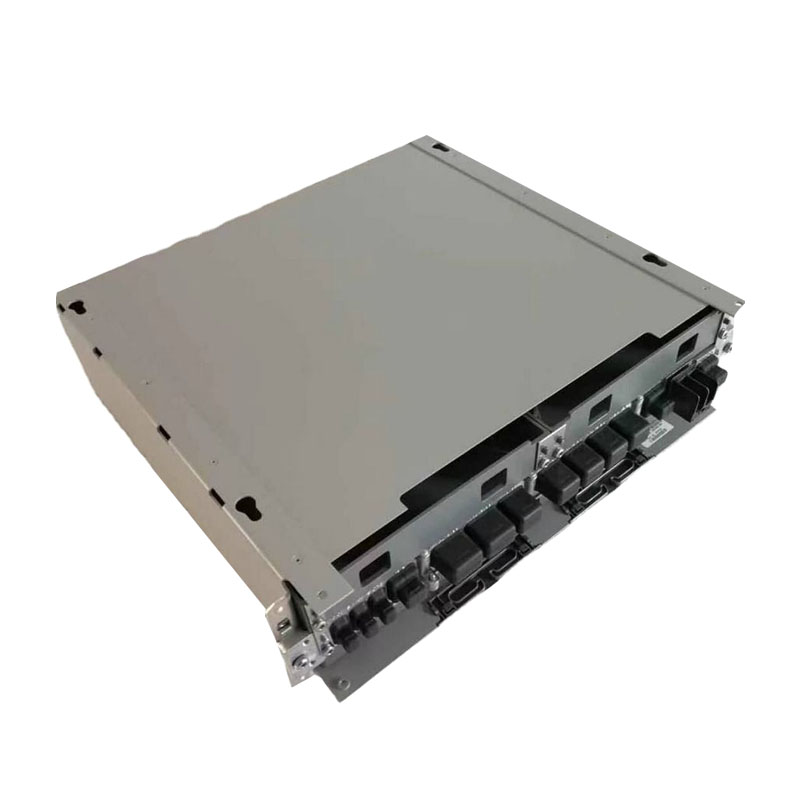

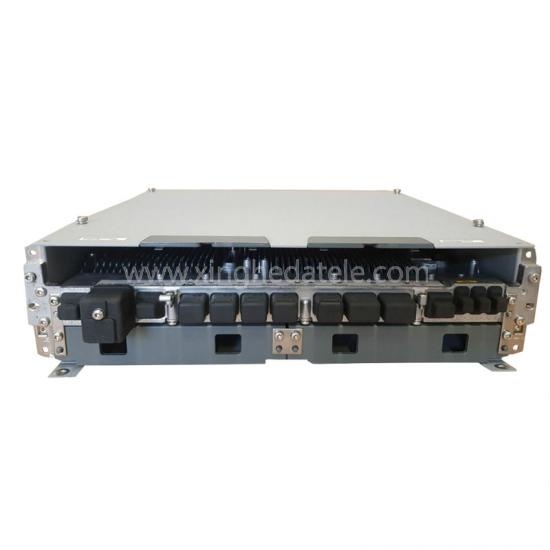

Nokia FSMF 472181A

Product Description

Baseband Processing and Protocol Conversion

• Multi - standard Signal Processing: It supports various network standards such as GSM, WCDMA, LTE, and 5G. It demodulates and processes signals from different networks, converting them into a unified digital signal format for subsequent processing and transmission. For example, for the Orthogonal Frequency - Division Multiplexing (OFDM) signal in the LTE network, the FSMF performs operations such as the Fast Fourier Transform (FFT) to convert the frequency - domain signal into a time - domain signal, and then decodes and processes the protocol.
• Protocol Processing: It is responsible for handling various communication protocols, such as the Radio Resource Control (RRC) protocol and the Medium Access Control (MAC) protocol. It parses and executes these protocols to achieve the signaling interaction and data transmission control between the mobile device and the base station. For example, when establishing a connection, the FSMF processes the RRC connection request and response messages to ensure that the mobile device can correctly access the network.

Data Transmission and Switching

• High - speed Data Transmission: Through its internal high - speed bus and interfaces, it realizes data transmission between other base station modules (such as the radio frequency module and the transmission module). It can transmit data with high bandwidth and low latency to meet the needs of a large number of users for data communication at the same time. For example, it can quickly transmit the baseband - processed data to the radio frequency module through the optical fiber interface for signal modulation and transmission.
• Data Switching and Routing: As the core module of the base station system, the FSMF is responsible for data switching and routing between different modules. It forwards data accurately to the corresponding modules according to the destination address and protocol information of the data. For example, when receiving data from a mobile device, the FSMF routes it to the corresponding node of the core network according to the destination IP address of the data.

Clock Synchronization and Timing Management

• Clock Generation: It has a built - in high - precision clock source that can generate a stable clock signal to provide a clock reference for the entire base station system. This clock signal is used to synchronize the work of each module to ensure the accurate transmission and processing of data. For example, when performing signal modulation and demodulation, an accurate clock signal is required to ensure the accuracy of frequency and phase.
• Synchronization Function: Through the integrated GPS or 1588 V2 synchronization protocol, it synchronizes with the external clock source. It can receive the clock signal from the satellite or other network devices, calibrate its own clock, and ensure that it is synchronized with the clock of the entire network. This is crucial for achieving accurate timing in the mobile network and can avoid delays and interference in signal transmission.

Network Management and Control

• Base Station Management: It is responsible for configuring and managing various parameters of the base station, such as cell parameters and power control parameters. It can receive instructions from the operator's management system through the network management interface to remotely configure and monitor the base station. For example, when the network load changes, the operator can adjust the power and resource allocation parameters of the base station through the management system to optimize the network performance.
• Resource Allocation and Scheduling: According to the network load and user requirements, it allocates and schedules the resources of the base station. It can dynamically adjust the allocation of wireless resources, such as frequency resources and time - slot resources, to improve the capacity and performance of the network. For example, when multiple users request data transmission at the same time, the FSMF reasonably allocates wireless resources according to the user's priority and service type to ensure that each user can obtain a certain quality of service.

Product Details
