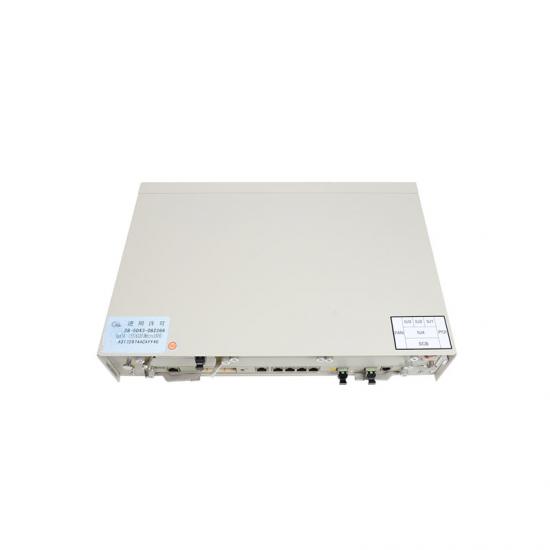

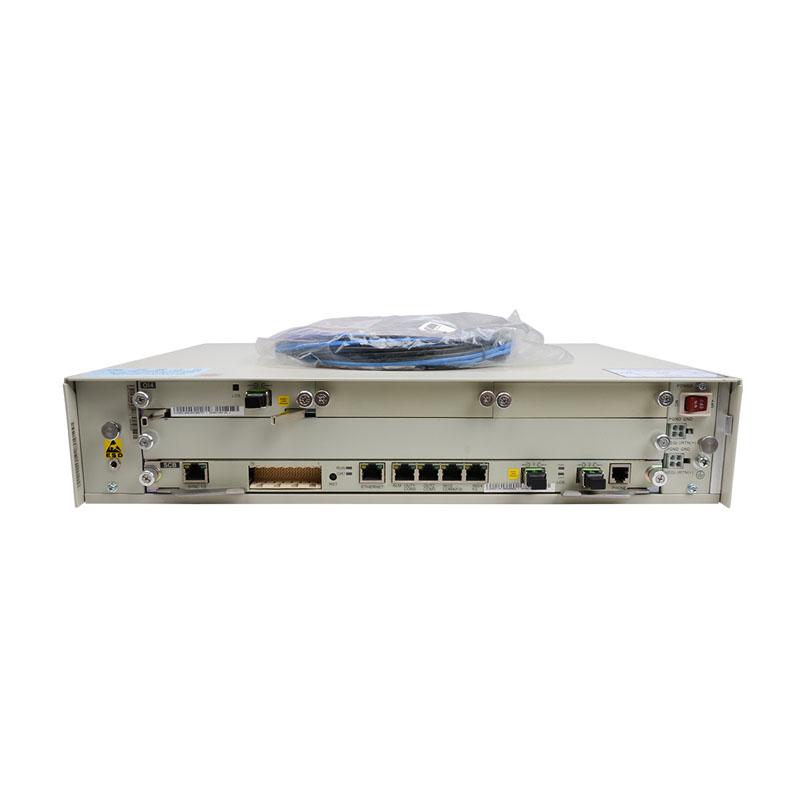

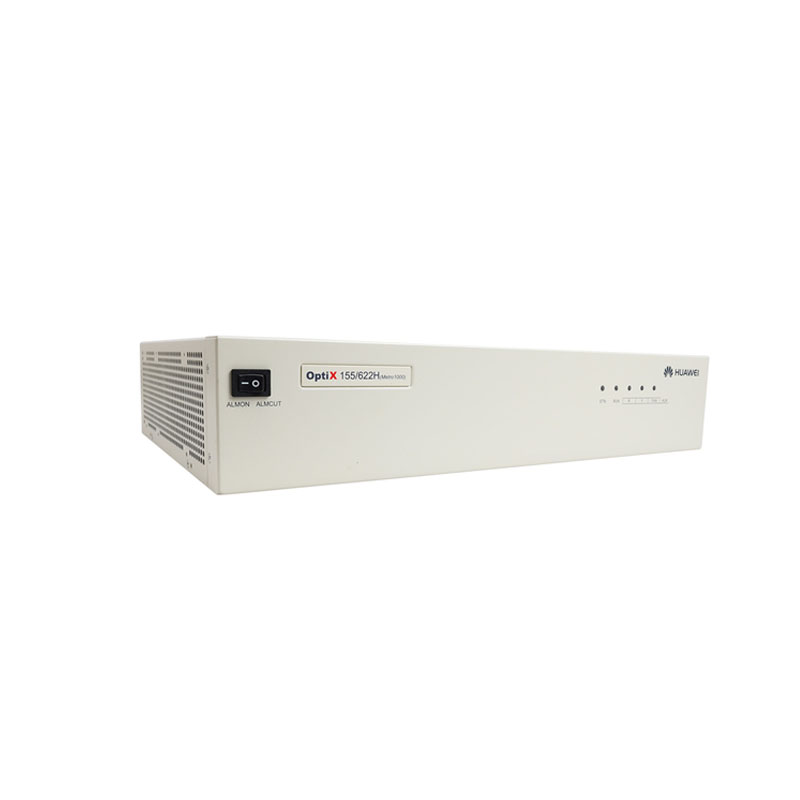

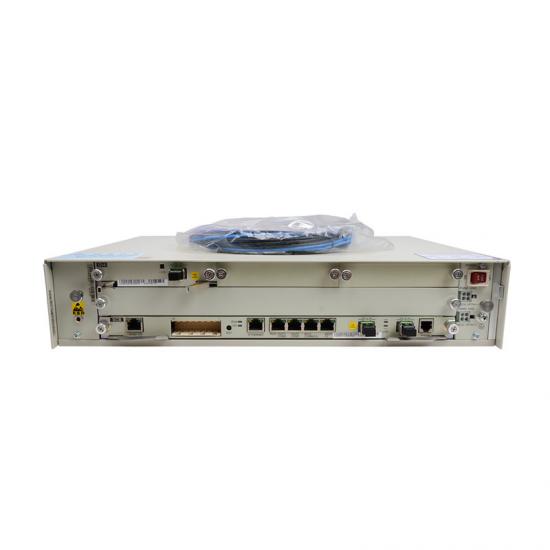

Optical Transmission SDH equipment Huawei Metro 1000

Optical Transmission SDH equipment Huawei Metro 1000

Product Description

The OptiX 155/622H provides the following clock sources for synchronization: external clock sources, line clock sources, and tributary clock sources.

When working in locked mode, an OptiX 155/622H can select any of the following clock sources as the reference clock:

External 2048 kHz or 2048 kbit/s G.703 clock source

Clock source from an interface on a line board

Clock source from an interface on a tributary board

Clock source from a line or tributary interface on an SCB board

The OptiX 155/622H has a capacity of 21.25 Gbit/s higher order full cross-connection or 5 Gbit/s lower order full cross-connection. It can be configured as multiple terminal multiplexers (TMs), add/drop multiplexers (ADMs), or multiple add/drop multiplexers (MADMs). It also supports service grooming and protection among these systems. In this way, the networking capability and the service grooming capability among networks are significantly improved.

The OptiX 155/622H can construct networks flexibly. It supports point-to-point, chain, ring, hub, and mesh networks.

When the OptiX 155/622H functions as the access equipment, it can construct hybrid networks with Huawei Metro and OSN equipment series. The OptiX 155/622H can also construct hybrid networks with third-party equipment.

Product Details

Our Advantages

We have Huawei Metro 1000 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Huawei Metro 1000, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Huawei Metro 1000 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
