The DCDU-12B provides ten -48 V DC outputs using the same fuse configurations
to meet the power distribution requirements of indoor and outdoor macro base
stations, micro base stations, and distributed base stations.
Min.Order Quantity::
1 pcPrice::
NegotiableDelivery Time::
3-5 dayswarranty time::
six monthsPlace of Origin::
ChinaPayment Terms::
T/T, Western Union, MoneyGram

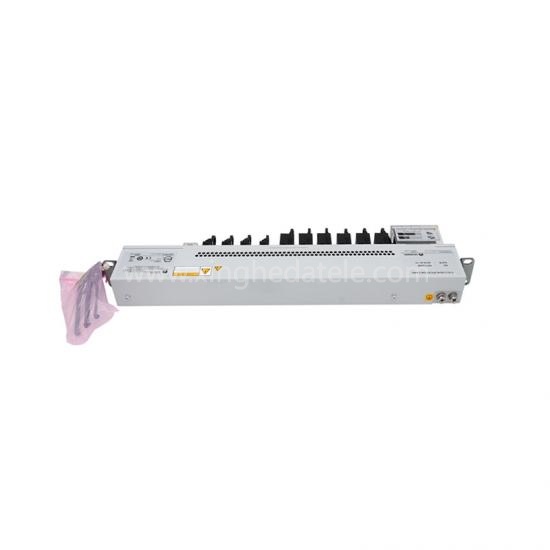

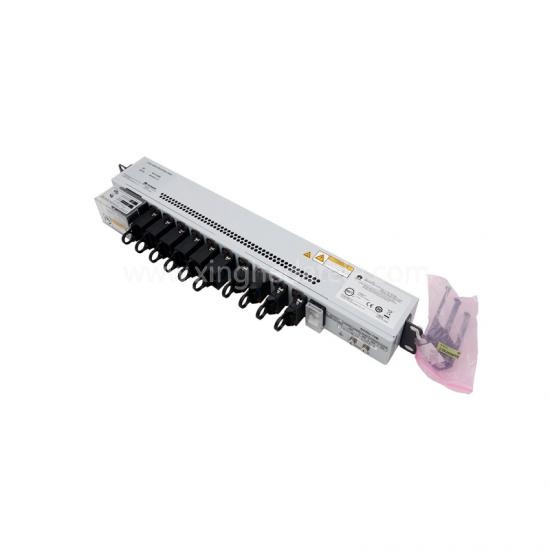

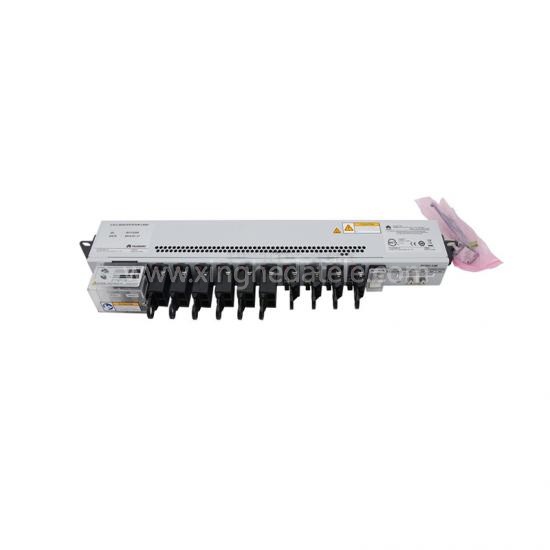

Original Huawei DC-Du -48V DC Distribution Unit Dcdu-12b
Product Description
|
Specification |
|
| Input voltage | -48 V DC |
| Input current | 160 A |
| Surge protection specifications |
Surge voltage on the -48 V DC power port Differential mode: 2 kV (1.2/50 μs) Common mode: 4 kV (1.2/50 μs |
|
Surge current on the -48 V DC power port Differential mode: 10 kA (8/20 μs) Common mode: 20 kA (8/20 μs) |
|
| Dimensions (H x W x D) |
A DCDU-12B is 1 U high with a case structure and can be installed in a 19-inch cabinet or rack. 42 mm x 442 mm x 65 mm (1.65 in. x 17.4 in. x 2.56 in.) (without mounting ears) 42 mm x 482.6 mm x 65 mm (1.65 in. x 19 in. x 2.56 in.) (with mounting ears) |
Huawei DCDU-12B DC Direct Current Distribution Unit -48 V DC Power
A direct current distribution unit-12B (DCDU-12B) provides -48 V DC power for other components in a cabinet. A DCDU-12B is 1 U high and can be installed in an IMS06 subrack or in any of the following cabinets: BTS3900 (Ver.D), BTS3900L (Ver.D), BTS3900 (Ver.D_A), BTS3900 (Ver.D_B), BTS3900L (Ver.D_B), RFC (Ver.D), RFC (Ver.E), RFC (Ver.D_A1), RFC (Ver.D_A2), RFC (Ver.D_B), BTS3012 (Ver.D_Z), BTS3012AE (Ver.D_Z), TMC11H (Ver.D), TMC11H (Ver.E), BTS3900AL (Ver.A), IMB03, IMB05, BTS3900 (Ver.E_A~D), BTS3900L (Ver.E_B~D), BTS5900(Ver.A), BTS5900L(Ver.A), APM5930(DC), and ILC29 (Ver.E).
Product Details
Our Advantages
We have Huawei DCDU-12B for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei DCDU-12B, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei DCDU-12B represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
