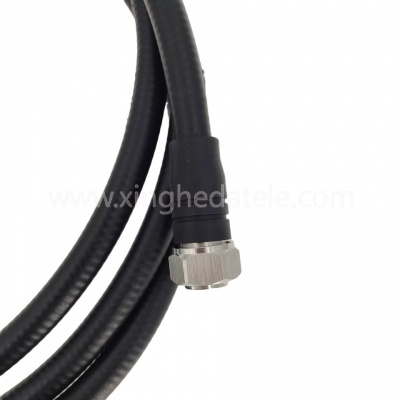

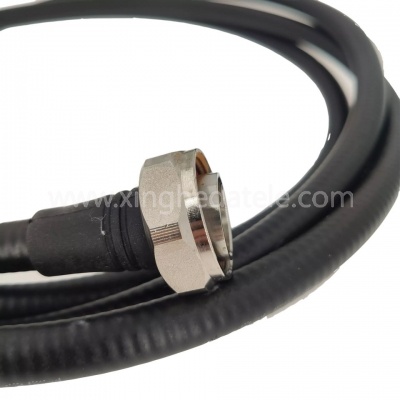

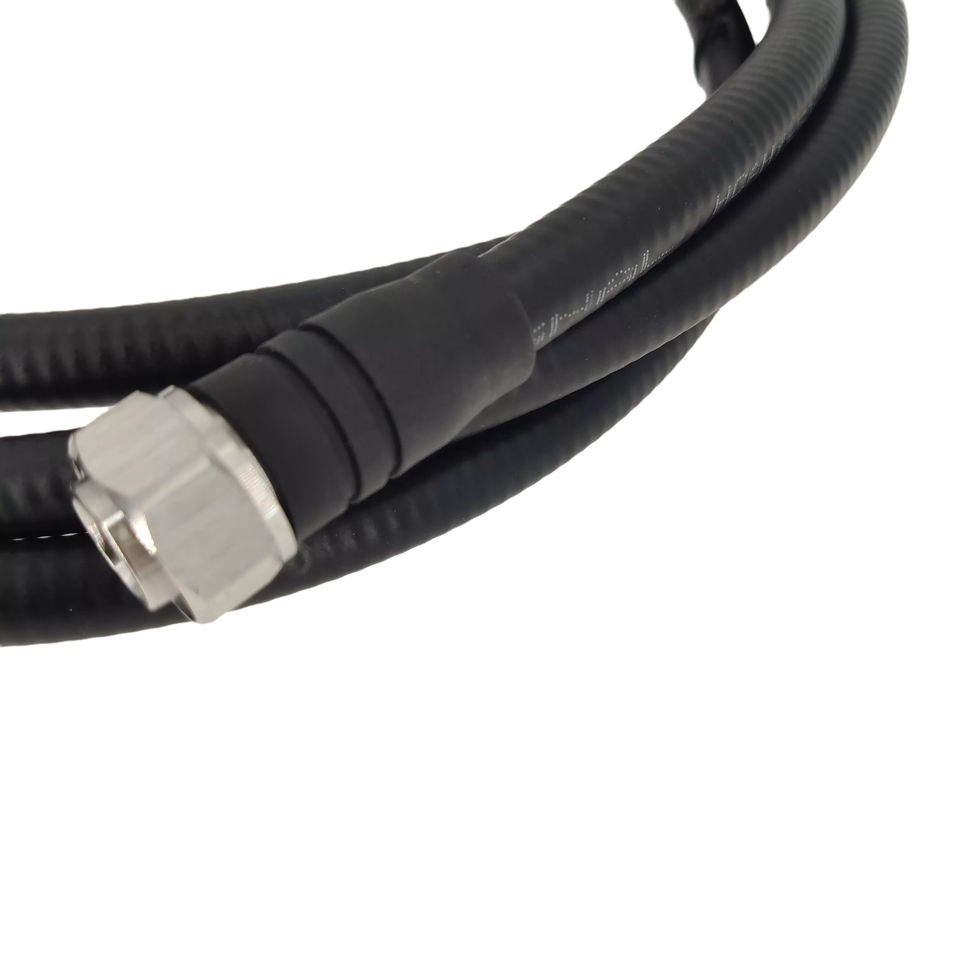

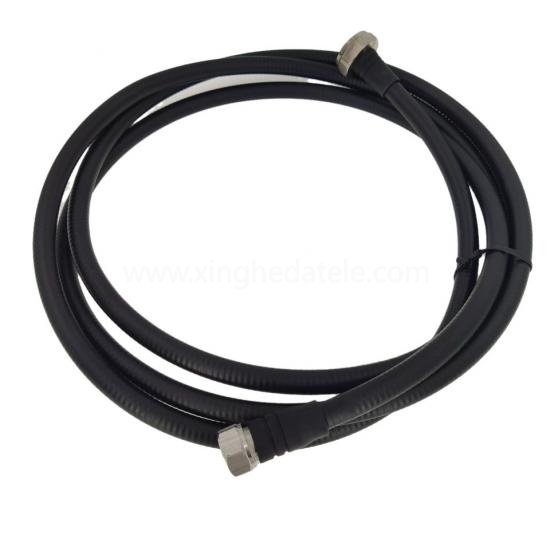

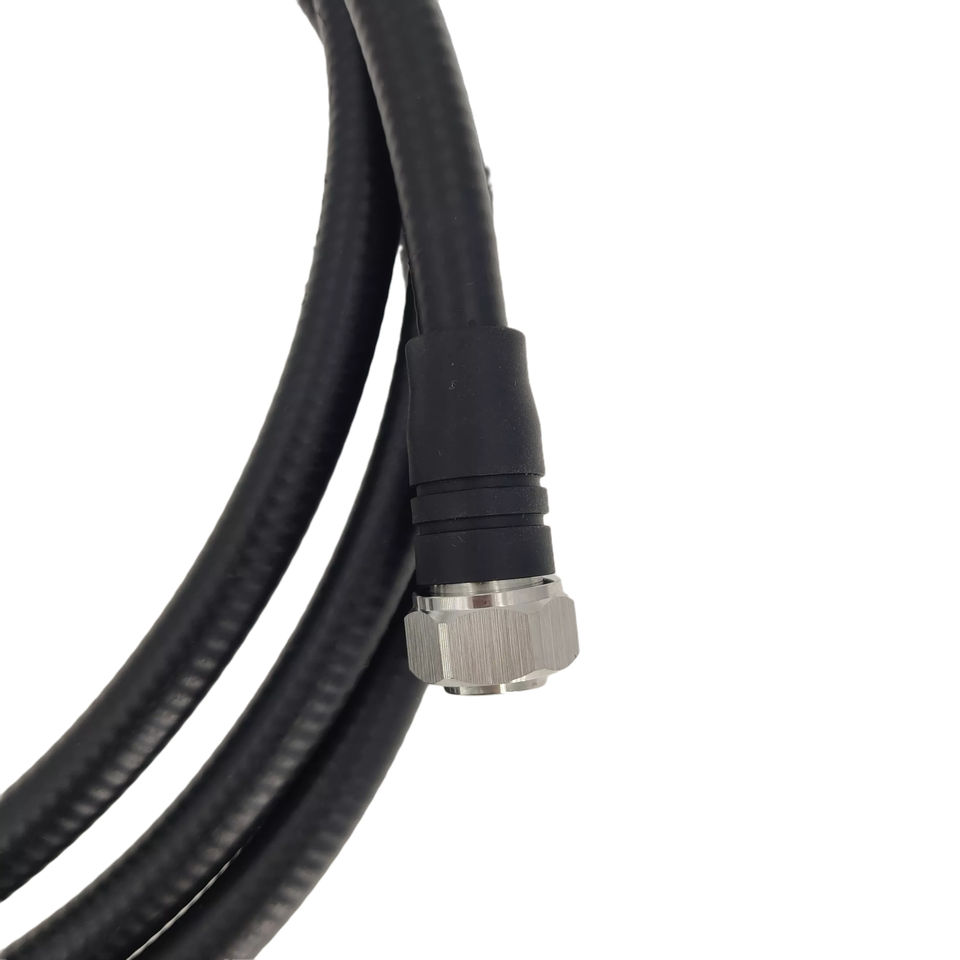

RF 1/2" 3m DINM-DINM LCF 1/2 Lm Flexible Jumper Cable for BTS

RF 1/2" 3m DINM-DINM LCF 1/2 Lm Flexible Jumper Cable for BTS

Product Description

Specification:

1 RF coaxial connector:

1.1 Material and Plating

Inner conductor: brass, plated with silver, Plating thickness: ≥0.003mm

Insulation dielectric: PTFE

Outer conductor: brass, plated with ternary alloy, Plating thickness≥0.002mm

1.2 Electrical & Mechanic Feature

Characteristics impedance: 50Ω

Frequency range: DC-3GHz

Dielectric strength: ≥2500V

Contact resistance: inner conductor≤1.0mΩ, Outer conductor≤0.4mΩ

Insulator resistance: ≥5000MΩ (500V DC)

VSWR: ≤1.15 (DC-3GHz)

PIM: ≤-155dBc@2x43dBm

Connector durability: ≥500 cycles

2 RF coaxial cable: 1/2” Super Flexible RF Cable

2.1 Material

Inner conductor: aluminum wire covered with copper (φ3.60mm)

Insulation dielectric: polyethylene foam (φ8.90mm)

Outer conductor: corrugated copper tube (φ12.20mm)

Cable jacket: PE (φ13.60mm)

2.2 Feature

Characteristics impedance: 50Ω

Standard capacitor: 80pF/m

Transmission rate: 83%

Min. single bending radius: 50mm

Tensile strength: 700N

Insulation resistance: ≥5000MΩ

Shielding attenuation: ≥120dB

VSWR: ≤1.15 (0.01-3GHz)

3 Jumper cable

3.1 Cable Component Size:

Total length of cable assemblies:

1000mm±10

2000mm±20

3000mm±25

5000mm±40

3.2 Electrical feature

Frequency Band: 800-2700MHz

Characteristics Impedance: 50Ω±2

Operating Voltage: 1500V

VSWR: ≤1.11 (0.8-2.2GHz), ≤1.18 (2.2-2.7GHz)

Insulation voltage: ≥2500V

Insulation resistance: ≥5000MΩ (500V DC)

PIM3: ≤-150dBc@2x20W

Insertion Loss:

Frequency

1m

2m

3m

5m

890-960MHz

≤0.15dB

≤0.26dB

≤0.36dB

≤0.54dB

1710-1880MHz

≤0.20dB

≤0.36dB

≤0.52dB

≤0.80dB

1920-2200MHz

≤0.26dB

≤0.42dB

≤0.58dB

≤0.92dB

2500-2690MHz

≤0.30dB

≤0.50dB

≤0.70dB

≤1.02dB

5800-5900MHz

≤0.32dB

≤0.64dB

≤0.96dB

≤1.6dB

Mechanical Shock Test Method: MIL-STD-202, Method 213, Test Condition I

Moisture Resistance Test Method: MIL-STD-202F, Method 106F

Thermal Shock Test Method: MIL-STD-202F, Method 107G, Test Condition A-1

3.3. Environment feature

Waterproof: IP68

Operation temperature range: -40°C to +85°C

Storage temperature range: -70°C to +85°C

Product Details

Our Advantages

We have 1/2 Lm Flexible Jumper Cable for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

1/2 Lm Flexible Jumper Cable, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

1/2 Lm Flexible Jumper Cable represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
