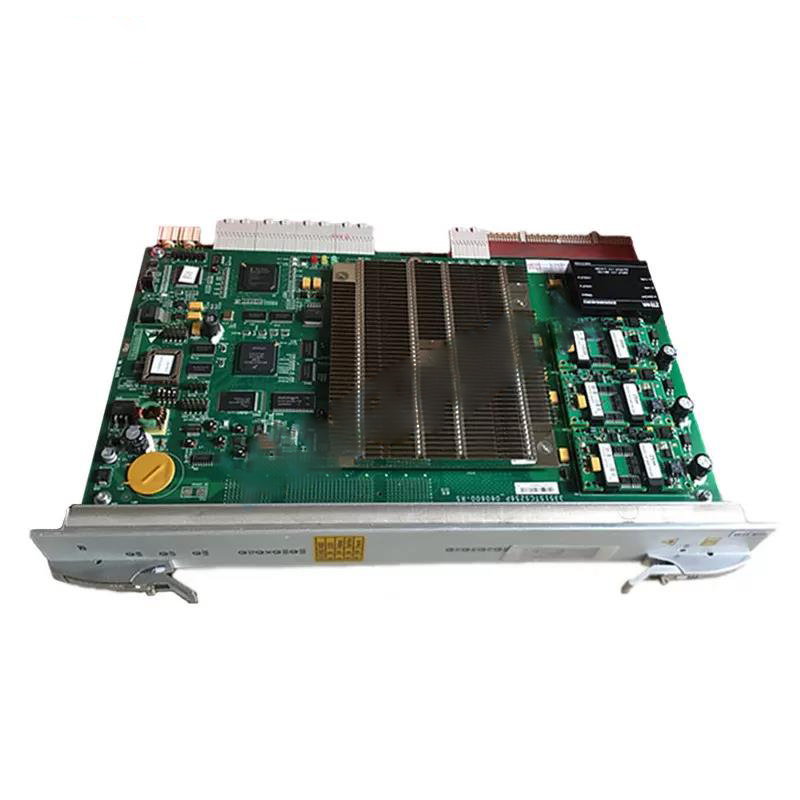

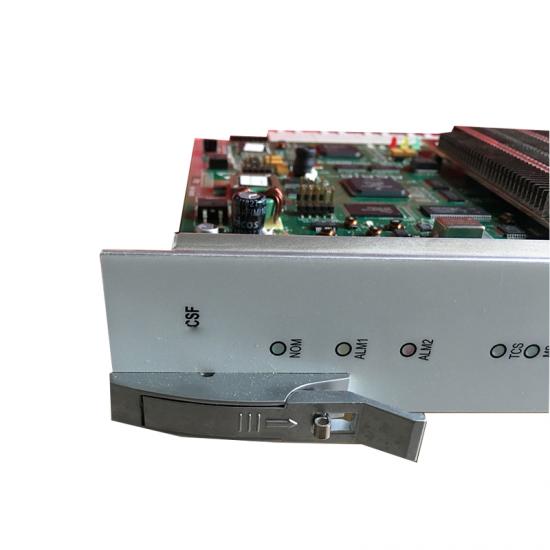

ZTE CSF +TCS128P 256 Optical transimissiom accessories for ZTE SDH ZXMP S385 EPE1C SEEU OL64 P1L1-2D2 OL4H2 OL16x4

ZTE CSF +TCS128P 256 Optical transimissiom accessories for ZTE SDH ZXMP S385 EPE1C SEEU OL64 P1L1-2D2 OL4H2 OL16x4

Product Description

The large capacity and flexible business operation ability

ZXMP S385 provides large capacity ability of high and low order cross slot rich equipment business. Can provide the processing capacity of multiplex ECC, ZTE CSF +TCS128P 256 Optical fully meet the requirements of complex network. Support/STM/STM STM - 1-4-16 / STM - 64 level of linear network, ring network, hub network, ring chain, complex network topology, such as tangent ring and ring of intersection.

More powerful business access ability

ZXMP S385 system provides a rich business interface: / STM STM - 64-16 / STM - 4 / STM 1 light interface; STM - 1 electrical interface; E3 / T3 electrical interface; E1 / T1 electric interface support frame processing; Interface of POS, ATM interface, FE/GE Ethernet interface, and SAN interface. Business for Ethernet and EOS, embedded RPR and MPLS embedded bearing a variety of ways, can form a special business EPL Ethernet, Ethernet virtual line EVPL, Ethernet LAN business EPLAN and Ethernet virtual private LAN service EVPLAN, etc., can meet the needs of a variety of different network environment technology.

High reliability, perfect equipment protection

ZXMP S385 with perfect equipment level protection: ZTE CSF redundancy is used to design in hardware, overhead to business bus, bus, bus clock adopts the structure of the double bus system, greatly improve the reliability and stability of the system. Cross is realized by using two intersecting clock, the clock 1 + 1 protection. PDH business veneer implementation 1: N protection: hardware business E1 / T1 business veneer 1: N protection, E3 / T3, STM 1 electric mouth and FE electric mouth also can realize 1: N protection. Implements cabinet outside power protection, veneer power protection and the aircraft power supply access protection to protect a variety of ways.

Complete, intelligent network protection

ZXMP S385 support to improve the network level of protection: to realize the ITU - T the proposed network characteristics, including ways to protect: 1 + 1 link multiplexing section protection, support link 1: N protection, one-way channel protection ring, two fiber bidirectional multiplexing section protection ring, four fiber bidirectional multiplexing section protection ring function, dual node interconnection protection DNI, subnet connection protection SNCP, logical subnet LSNP.

ZXMP S385 have powerful intelligence features, support automatically discover network topology and resource, end-to-end business configuration, quick resistance network more failure; Support for multiple business priority protection and recovery strategy. Support the permanent connection PC and soft permanent connection/exchange connection SPC/SC online conversion, supports distributed recoverable reroute protection. Implement ASON OUNI - C, OUNI - N and I - NNI function; Support the control plane function, supports in-band and out-of-band SCN, in-band and out-of-band MCN function.

Product Details

Our Advantages

We have ZTE CSF for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

ZTE CSF, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

ZTE CSF represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
