Nokia FXED
Equipment Cable
CA-12SFDMDM-1000
CA-12SFDMDM-1000
CA-12SFDMDM-1000

1/2"SF NM to NM DM to DM RF 1/2 Superflexiable Cable Communication Jumper Cable 1m

Câble de raccordement de Communication super flexible

1/2 "SF NM à NM DM à DM RF 1/2 1m

  • Min.Order Quantity::

    1 pc
  • Price::

    Negotiable
  • Delivery Time::

    3-5 days
  • warranty time::

    six months
  • Place of Origin::

    China
  • Payment Terms::

    T/T, Western Union, MoneyGram
  • Share To :
  • Facebook
  • Twitter
  • Linkedin
  • Youtube
  • Pinterest

1/2"SF NM to NM DM to DM RF 1/2 Superflexiable Cable Communication Jumper Cable 1m

Product Description

Product Name
Jumper Cable / Cable Assembly
Part number
CA-12SFDMDM-1000
Impedance
50Ω
Connector
7/16 DIN male to 7/16 DIN male
Cable
1/2" SF Cable
Frequency
DC-3GHz
Return loss
23dB
Insertion loss
0.4dB@3GHz
PIM
-160dBc@2×20W
Power handling
500W
DC breakdown voltage
2500V RMS
Length
1 meters
Packing
1pcs/bag
Operating temperature range
-30°C to +70°C
Storage temperature range
-40°C to +85°C
Relative humidity
5%- 95%
Barometric pressure
55KPa -106KPa

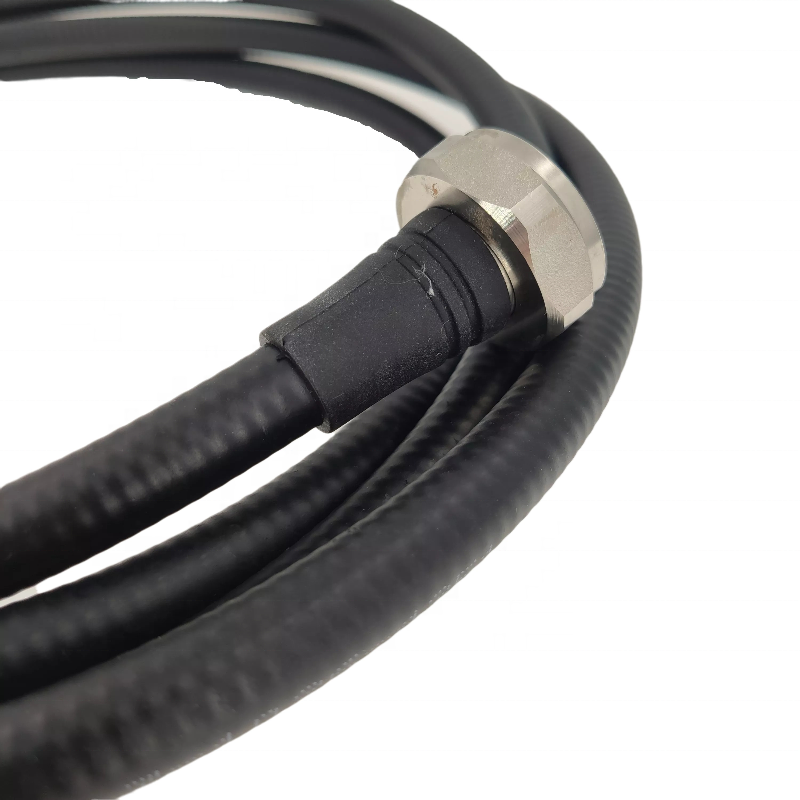

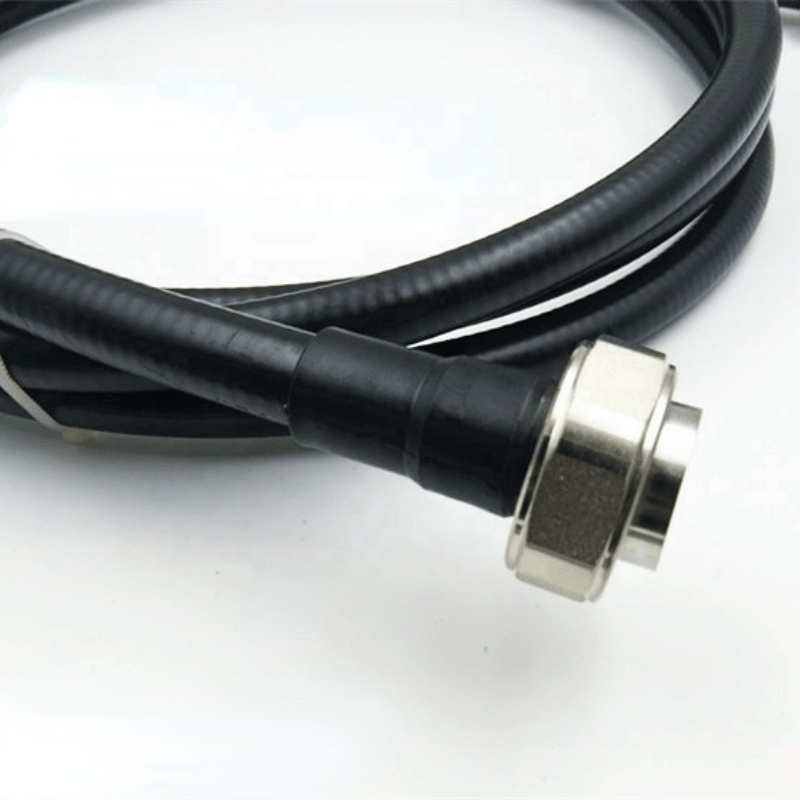

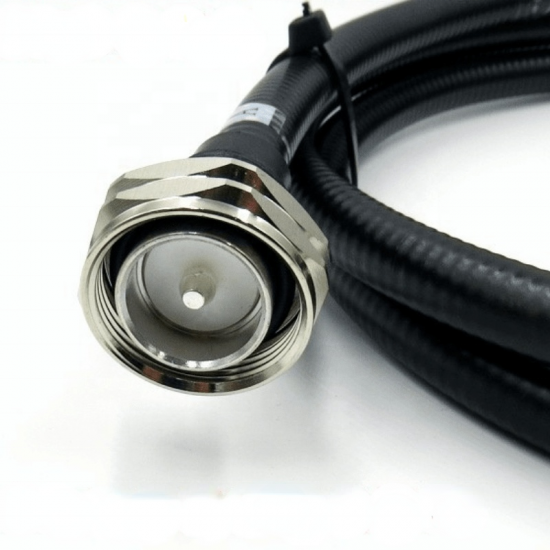

Product Details

CA-12SFDMDM-1000

CA-12SFDMDM-1000



Our Advantages

We have CA-12SFDMDM-1000 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.


CA-12SFDMDM-1000, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.


CA-12SFDMDM-1000 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
