Optical transceivers
|
|
FE-SFP optical transceiver
|
|
SFP-FE-SX-MM1310
|
Optical transceiver, SFP, 100M/155M, Multi-mode Module (1,310 nm, 2 km, LC)
|
|

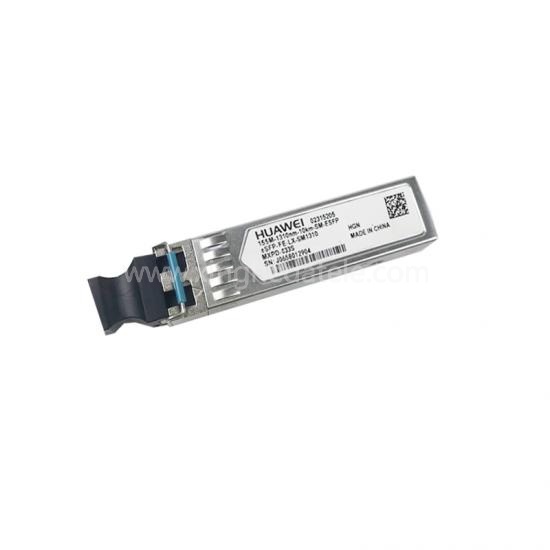

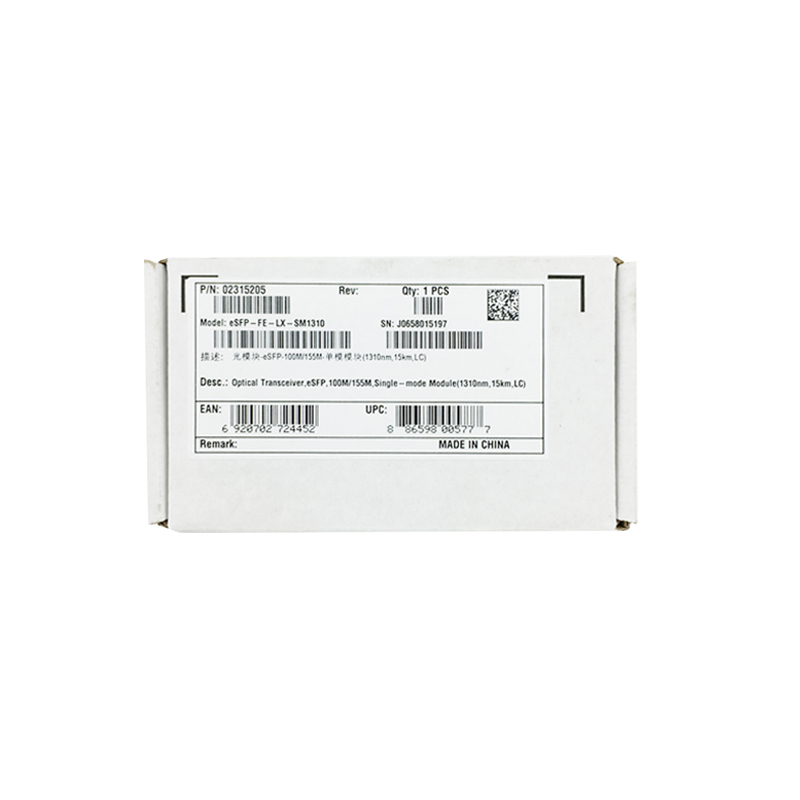

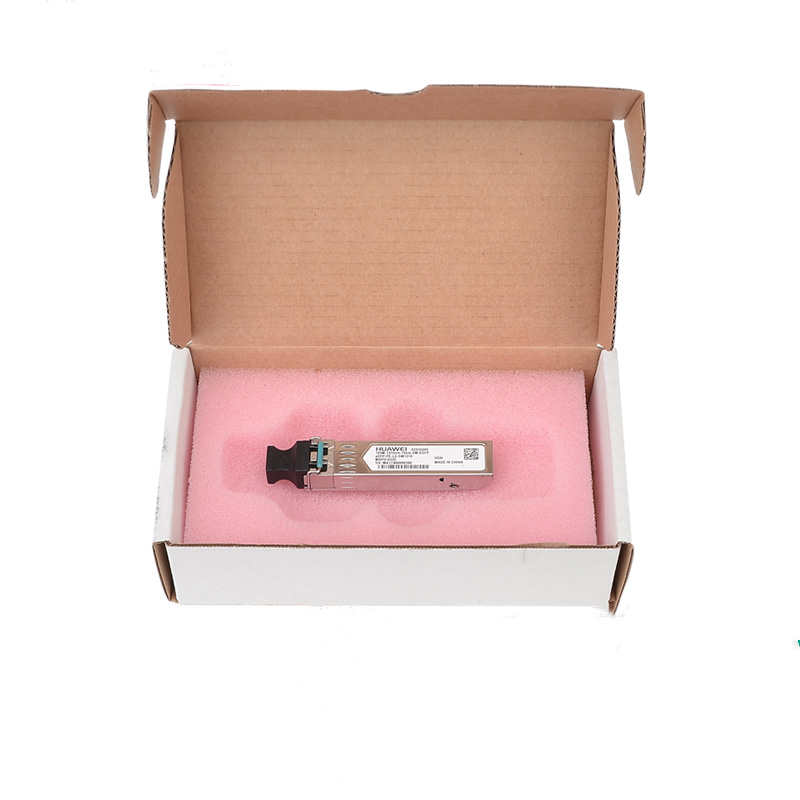

eSFP-FE-LX-SM1310
|
Optical transceiver, eSFP, 100M/155M, Single-mode Module (1,310 nm, 15 km, LC)
|
|
S-SFP-FE-LH40-SM1310
|
Optical transceiver, eSFP, FE, single-mode module (1,310 nm, 40 km, LC)
|
|
S-SFP-FE-LH80-SM1550
|
Optical transceiver, eSFP, FE, single-mode module (1,550 nm, 80 km, LC)
|
|
GE-SFP optical transceiver
|
|
SFP-1000BaseT
|
Copper transceiver, SFP, GE, electrical interface module (100m, RJ45)
|
|
eSFP-GE-SX-MM850
|
Optical transceiver, eSFP, GE, multimode module (850 nm, 0.5 km, LC)
|
|
SFP-GE-LX-SM1310
|
Optical transceiver, SFP, GE, single-mode module (1,310 nm, 10 km, LC)
|
|
S-SFP-GE-LH40-SM1310
|
Optical transceiver, eSFP, GE, single-mode module (1,310 nm, 40 km, LC)
|
|
S-SFP-GE-LH40-SM1550
|
Optical transceiver, eSFP, GE, single-mode module (1,550 nm, 40 km, LC)
|
|
S-SFP-GE-LH80-SM1550
|
Optical transceiver, eSFP, GE, single-mode module (1,550 nm, 80 km, LC)
|
|
eSFP-GE-ZX100-SM1550
|
Optical transceiver, eSFP, GE, single-mode module (1,550 nm, 100 km, LC)
|
|
10 GE-XFP Optical transceiver
|
|
XFP-SX-MM850
|
Optical transceiver, XFP, 10G, multimode module (850 nm, 0.3 km, LC)
|
|
XFP-STM64-LX-SM1310
|
Optical transceiver, XFP, 10G, single-mode module (1,310 nm, 10 km, LC)
|
|
XFP-STM64-LH40-SM1550
|
Optical transceiver, XFP, 10G, single-mode module (1,550 nm, 40 km, LC)
|
|
XFP-STM64-SM1550-80 km
|
Optical transceiver, XFP, 10G, single-mode module (1,550 nm, 80 km, LC)
|
|
10 GE-SFP+ Optical transceiver
|
|
OMXD30000
|
Optical transceiver, SFP+, 10G, multimode module (850 nm, 0.3 km, LC)
|
|
OSX010000
|
Optical transceiver, SFP+, 10G, single-mode module (1,310 nm, 10 km, LC)
|
|
OSX040N01
|
Optical transceiver, SFP+, 10G, single-mode module (1,550 nm, 40 km, LC)
|
|
OSXD22N00
|
Optical transceiver, SFP+, 10G, single-mode module (1,310 nm, 0.22km, LC, LRM)
|
|
SFP-10G-USR
|
Optical transceiver, SFP+, 10G, multimode module (850 nm, 0.1 km, LC)
|
|
SFP-10G-ZR
|
Optical transceiver, SFP+, 10G, single-mode module (1,550 nm, 80 km, LC)
|
|
SFP-10G-ZCW1571
|
Optical transceiver, SFP+, 10G, single-mode module (CWDM, 1,571 nm, 70 km, LC)
|
|
SFP-10G-ZCW1591
|
Optical transceiver, SFP+, 10G, single-mode module (CWDM, 1,591 nm, 70 km, LC)
|
|
SFP-10G-ZCW1611
|
Optical transceiver, SFP+, 10G, single-mode module (CWDM, 1,611 nm, 70 km, LC)
|
|
SFP-10G-iLR
|
Optical transceiver, SFP+, 10G, single-mode module (DWDM, 1560.61–1529.16nm, 60km, LC)
|
|
SFP-10G-ZDWT-L
|
Optical Transceiver, SFP+, 9.8G, Single-mode Module (1,310 nm, 1.4 km, LC)
|
|
40 GE optical transceivers
|
|
QSFP-40G-iSR4
|
40G Base-iSR4 Optical transceiver, QSFP, 40G, multimode module (850 nm, 0.15 km, MPO) (connecting to four SFP+ optical transceivers)
|
|
QSFP-40G-LX4
|
40G Base-LX4 Optical Transceiver, QSFP+, 40 GE, Single-mode (1,310 nm, 2 km, LC), Multi-mode (1,310 nm, 0.15 km, LC)
|
|
QSFP-40G-iSM4
|
40G Base-iSM4 Optical Transceiver, QSFP+, 40G, Single-mode Module (1,310 nm, 1.4 km, MPO) (connecting to four SFP+ optical transceivers)
|
|
QSFP-40G-eSM4
|
40G Base-eSM4 Optical Transceiver, QSFP+, 40G, Single-mode Module (,1310 nm, 10 km, MPO) (connecting to four SFP+ optical transceivers)
|
|
QSFP-40G-LR4
|
40G Base-LR4 optical transceiver, QSFP+, 40G, single-mode module (1,310 nm, 10 km, LC)
|
|
QSFP-40G-eSR4
|
40G Base-eSR4 Optical transceiver, QSFP+, 40G, multimode module (850 nm, 0.3 km, MPO) (connecting to four SFP+ optical transceivers)
|
|
CFP-40G-SR4
|
High-Speed Transceiver, CFP, 40G, Multimode Module (850 nm, 4 x 10G, 0.1 km, MPO)
|
|
CFP-40G-LR4
|
High-Speed Transceiver, CFP, 40G, Single-mode Module (1,310 nm band, 41.25G, 10 km, stright LC)
|
|
CFP-40G-ER4
|
High-Speed Transceiver, CFP, 40G, Single-mode Module (1,310 nm band, 41.25G, 40 km, stright LC)
|
|
CFP-40G-ZR4
|
High-Speed Transceiver, CFP,40G, Single-mode Module (1,550 nm band, 41.25G, 80 km, stright LC)
|
|
QSFP-40G-ER4
|
40G Base-ER4 Optical Transceiver, QSFP+, 40G, Single-mode Module (1,310 nm, 40 km, LC)
|
|
100 GE optical transceivers
|
|
CFP-100G-SR10
|
High-Speed Transceiver, CFP, 100G, Multimode Module (850 nm, 10 x 10G, 0.1 km, MPO) (can connect to 10 SFP+ ports or 2 QSFP+ ports)
|
|
CFP-100G-LR4
|
High-Speed Transceiver, CFP, 100G, Single-mode Module (1,310 nm band, 4 x 25G, 10 km, stright LC)
|
|
CFP-100G-ER4
|
High-Speed Transceiver, CFP, 100G, Single-mode Module (1,310 nm band, 4 x 25G, 40 km, stright LC)
|
|
CFP-100GE-ZR4
|
100G Base,CFP Module, 100G, Single-mode Module (1,310 nm band, 4 x 25G, 80 km, stright LC)
|
|
QSFP-100G-CLR4
|
High-Speed Transceiver, QSFP28, 1,310 nm, 4 x 25G Base, -6.5 dBm, 2.5 dBm, -10.7 dBm, LC/PC, 2 km
|
|
QSFP-100G-CWDM4
|
High-Speed Transceiver, QSFP28, 1,310 nm, 4 x 25G Base, -6.5 dBm, 2.5 dBm, -9.8 dBm, LC/PC, 2 km
|
|
QSFP-100G-ER4-Lite
|
100G Base-ER4-Lite Optical Transceiver, QSFP28, 100G, Single-mode module (1,310 nm, 30 km (FEC OFF), 40 km (FEC ON), LC)
|
|
QSFP-100G-LR4
|
100G Base-LR4 Optical Transceiver, QSFP28, 100G, Single-mode module (1,310 nm, 10 km, LC)
|
|
QSFP-100G-SR4
|
100G Base-SR4 Optical Transceiver, QSFP28, 100G, Multi-mode (850 nm, 0.1 km, MPO)
|
|
QSFP-100G-PSM4
|
100G Base-PSM4 Optical Transceiver, QSFP28, 100G, Single-mode module (1,310 nm, 0.5 km, MPO)
|
|
BIDI-SFP optical transceivers
|
|
SFP-FE-LX-SM1310-BIDI
|
Optical transceiver, eSFP, FE, BIDI single-mode module (TX1310/RX1550, 15 km, LC)
|
|
SFP-FE-LX-SM1550-BIDI
|
Optical transceiver, eSFP, FE, BIDI single-mode module (TX1550/RX1310, 15 km, LC)
|
|
SFP-GE-LX-SM1310-BIDI
|
Optical transceiver, eSFP, GE, BIDI single-mode module (TX1310/RX1490,10 km, LC)
|
|
SFP-GE-LX-SM1490-BIDI
|
Optical transceiver, eSFP, GE, BIDI single-mode module (TX1490/RX1310,10 km, LC)
|
|
LE2MGSC40ED0
|
Optical transceiver, SFP, GE, BIDI single-mode module (TX1490/RX1310, 40 km, LC)
|
|
LE2MGSC40DE0
|
Optical transceiver, SFP, GE, BIDI single-mode module (TX1310/RX1490, 40 km, LC)
|
|
SFP-GE-ZBXD1
|
Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1570/RX1490, 80 km, LC)
|
|
SFP-GE-ZBXU1
|
Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1570, 80 km, LC)
|
|
BIDI-SFP+ optical transceivers
|
|
SFP-10G-ER-SM1330-BIDI
|
Optical Transceiver, SFP+, 10G, BIDI Single-mode Module (TX1330/RX1270, 40 km, LC)
|
|
SFP-10G-ER-SM1270-BIDI
|
Optical Transceiver, SFP+, 10G, BIDI Single-mode Module (TX1270/RX1330, 40 km, LC)
|
|
SFP-10G-BXU1
|
10G Base, Bi-Directional (BIDI) optical transceiver, SFP, 10G, single-mode module (TX1270/RX1330, 10 km, LC)
|
|
SFP-10G-BXD1
|
10G Base, BIDI optical transceiver, SFP, 10G, single-mode module (TX1330/RX1270, 10 km, LC)
|
