Whether you need new products or renovated products, takes comprehensive
warranty as the standard.we only purchase green market equipment of the
highest quality. All these are provided at the best possible price.
Min.Order Quantity::
1 pcPrice::
NegotiableDelivery Time::
3-5 dayswarranty time::
six monthsPlace of Origin::
ChinaPayment Terms::
T/T, Western Union, MoneyGram

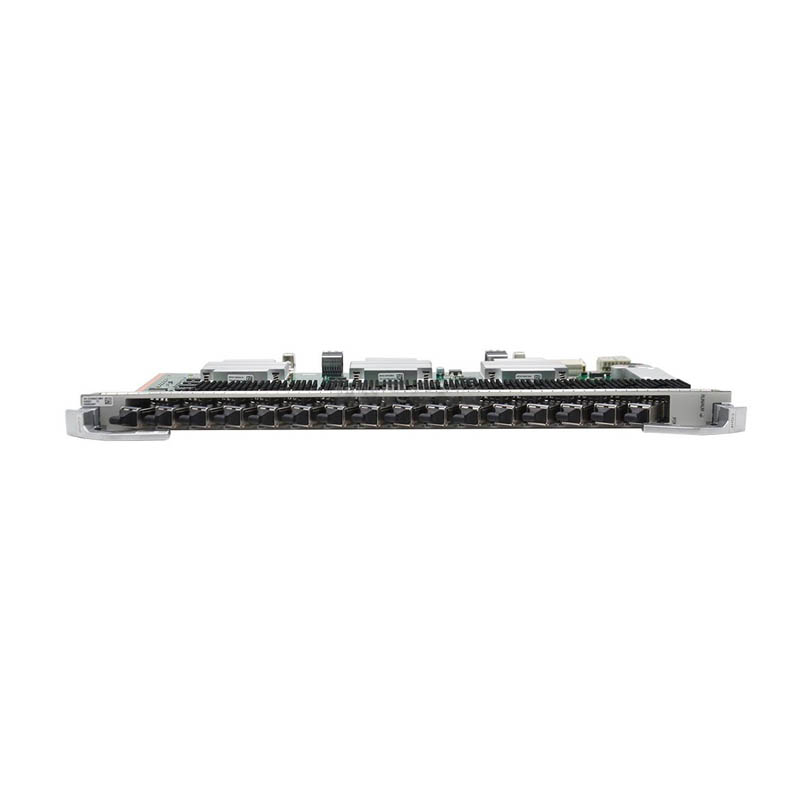

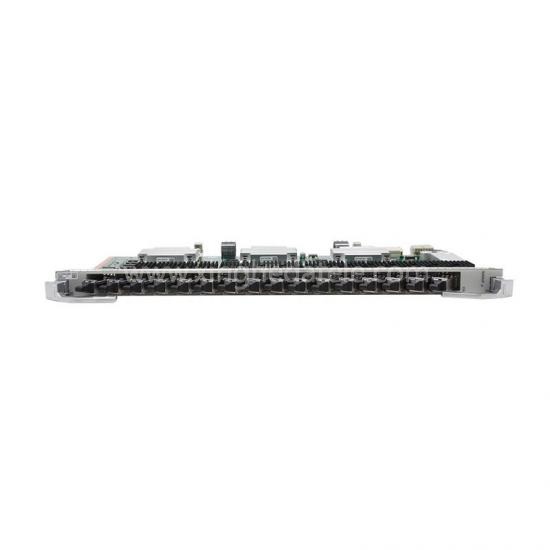

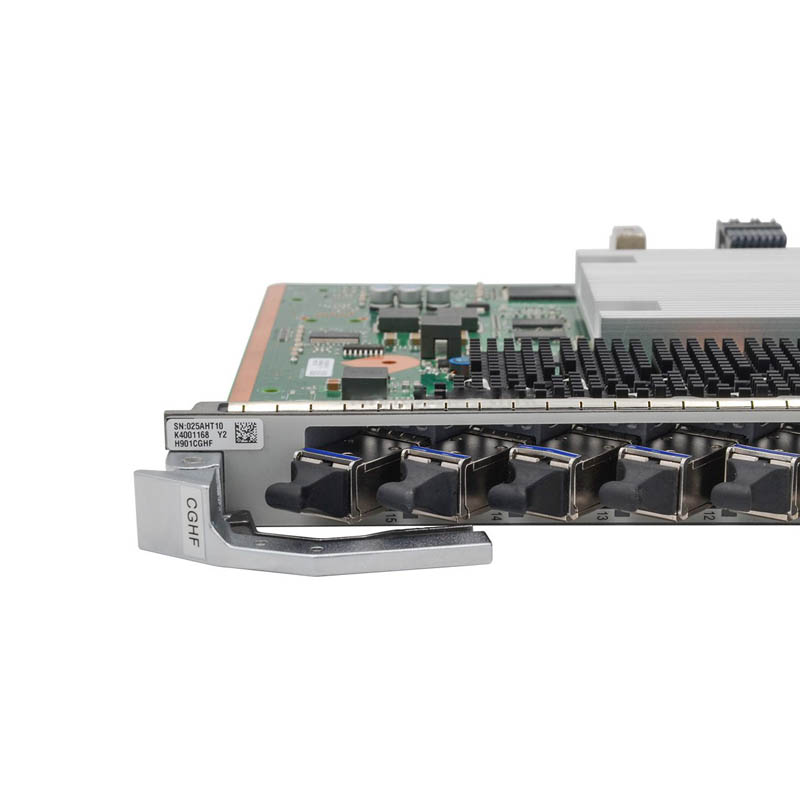

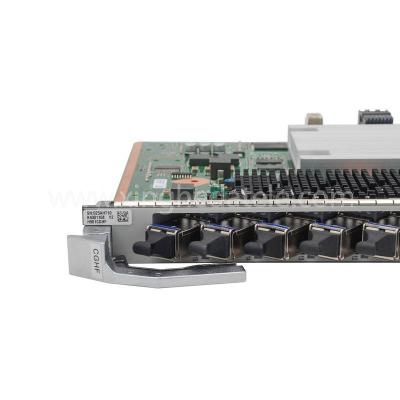

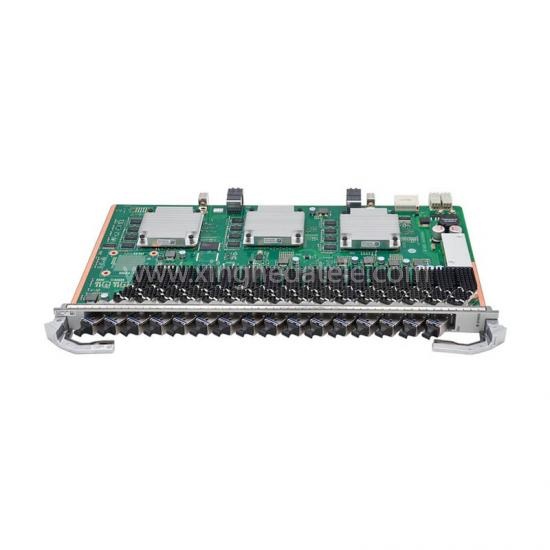

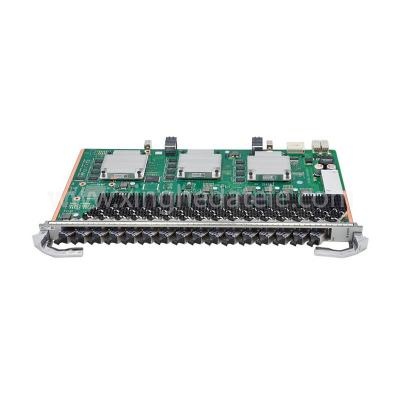

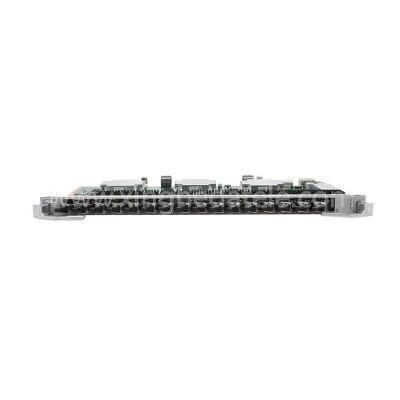

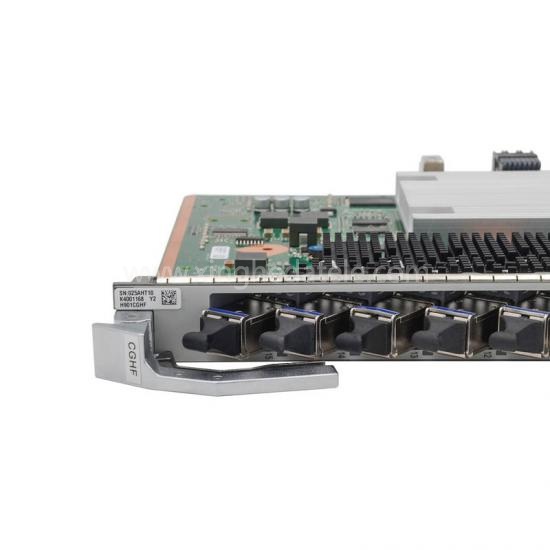

Huawei H901CGHF 16-Port XG-PON& GPON Combo OLT N2a Interface Board H901CGHF H902CGHF
Product Description
The H901CGHF board is a 16-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.

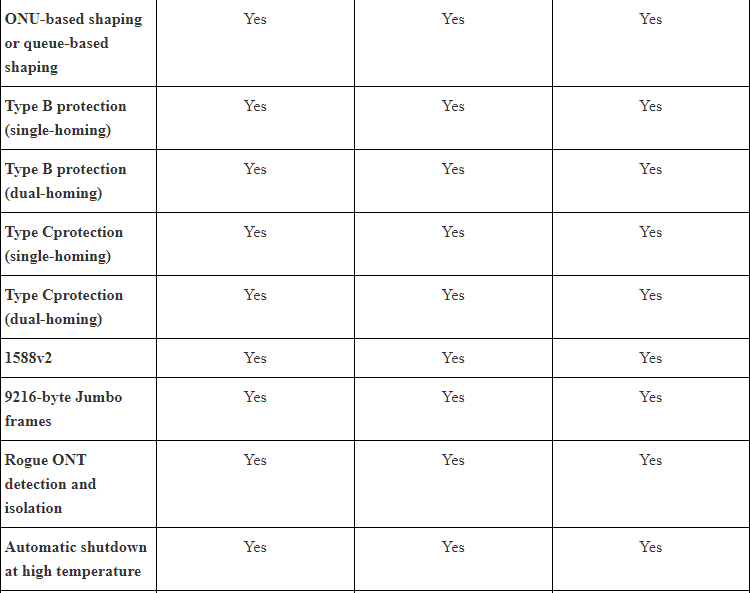

Differences between PON Combo interface boards
|
Specification |
H901CGID |
H901CGHF |
H901CSHF |
|---|---|---|---|
|
Port quantity |
8 |
16 |
16 |
|
Forwarding capability |
80 Gbit/s |
200 Gbit/s |
200 Gbit/s |
|
Rate mode |
Asymmetric rate |
Asymmetric rate |
Supports two modes:
|
|
Port Rate |
GPON upstream: 1.244 Gbit/s GPON downstream: 2.488 Gbit/s XG-PON upstream: 2.488 Gbit/s XG-PON downstream: 9.953 Gbit/s |
GPON upstream: 1.244 Gbit/s GPON downstream: 2.488 Gbit/s XG-PON upstream: 2.488 Gbit/s XG-PON downstream: 9.953 Gbit/s |
GPON upstream: 1.244 Gbit/s GPON downstream: 2.488 Gbit/s XGS-PON upstream: 9.953 Gbit/s & 2.488G bit/s XGS-PON downstream: 9.953 Gbit/s |
|
Maximum split ratio |
GPON: 1:128 XG-PON: 1:256 |
GPON: 1:128 XG-PON: 1:256 |
GPON: 1:128 XGS-PON: 1:256 |
|
T-CONTs per PON port |
GPON/auto type ONU: 1024 XG-PON: 2048 |
GPON/auto type ONU: 1024 XG-PON: 2048 |
GPON/auto type ONU: 1024 XGS-PON: 2048 |
|
Service flows per PON board |
16368 |
16352 |
16352 |
|
Maximum number of MAC addresses |
131072 |
131072 |
131072 |
Product Details
Our Advantages
We have Huawei H901CGHF for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei H901CGHF, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei H901CGHF represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
