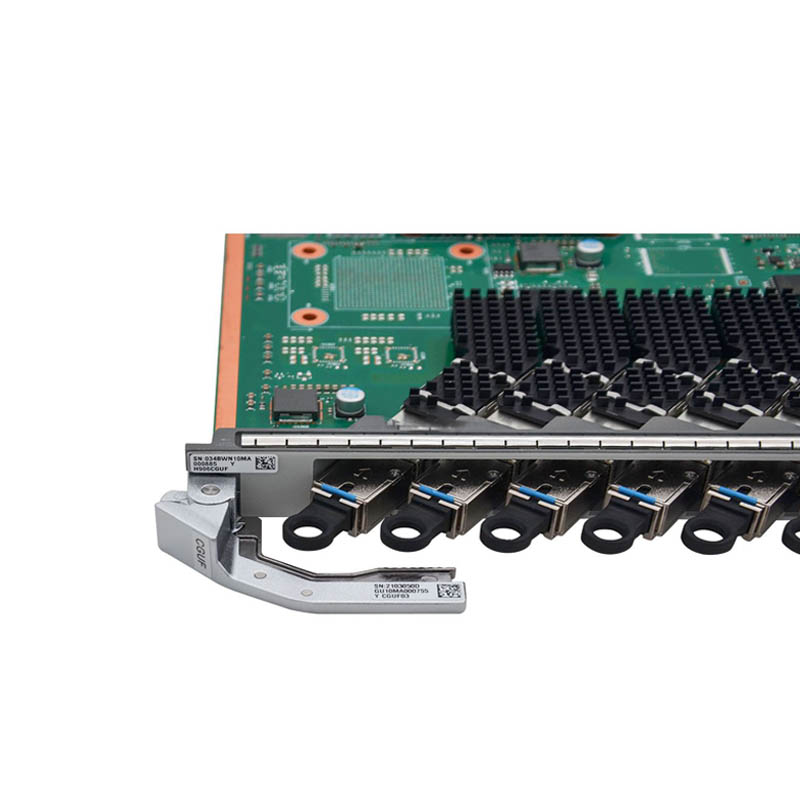

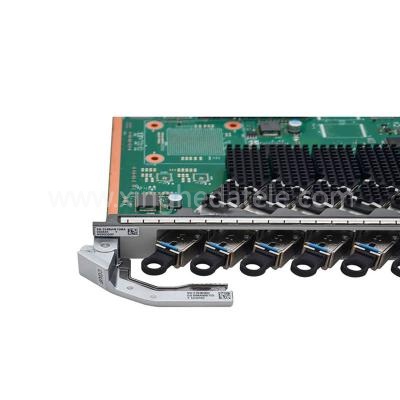

Huawei H906CGUF 16-port XG-PON and GPON combo Board for MA5800 series OLT

Whether you need new products or renovated products, takes comprehensive

warranty as the standard.we only purchase green market equipment of the

highest quality . All these are provided at the best possible price.

  • Min.Order Quantity::

    1 pc
  • Price::

    Negotiable
  • Delivery Time::

    3-5 days
  • warranty time::

    six months
  • Place of Origin::

    China
  • Payment Terms::

    T/T, Western Union, MoneyGram
  • Share To :
  • Facebook
  • Twitter
  • Linkedin
  • Youtube
  • Pinterest

Huawei H906CGUF 16-port XG-PON and GPON combo Board for MA5800 series OLT

Product Description

Specification
Service ports
GPON Port 16 XG-PON & GPON ports
GPON SFP+ Module Specification
Type One-fiber bi-directional optical module, C+
Operating Wavelength GPON channel:

Tx: 1490 nm

Rx: 1310 nm



XG-PON channel:

Tx: 1577 nm

Rx: 1270 nm

Encapsulation Type SFP+
Port Rate

GPON channel:

Tx: 2.488 Gbit/s

Rx: 1.244 Gbit/s



XG-PON channel:

Tx: 9.953 Gbit/s

Rx: 2.488 Gbit/s

Minimum Output Optical Power

GPON channel: 3 dBm

XG-PON channel: 4 dBm

Maximum Output Optical Power

GPON channel: 7 dBm

XG-PON channel: 8 dBm

Maximum Receiver Sensitivity

GPON channel: -32 dBm

XG-PON channel: -29.5 dBm

Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power

GPON channel: -12 dBm

XG-PON channel: -9 dBm

Extinction Ratio 8.2 dB
Function
Forwarding capability 200 Gbit/s
Rate mode Asymmetric rate
T-CONTs per PON port

GPON: 1024

XG-PON: 2048

Service flows per PON board 16352
Maximum frame size 2052 bytes
Maximum number of MAC addresses 131072

Maximum distance difference between

two ONUs under the same PON port

40 km
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption

Static: 48 W

Maximum: 106 W

Operating temperature -40°C to +65°C

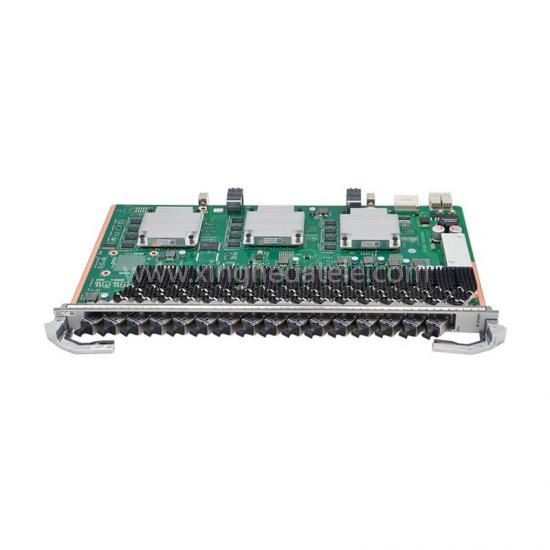

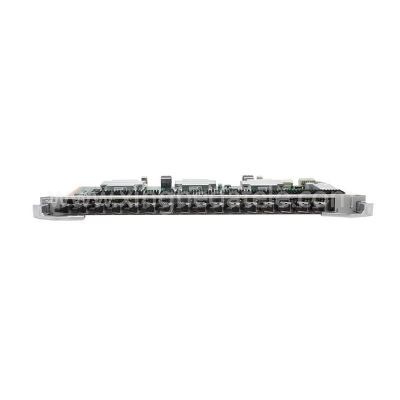

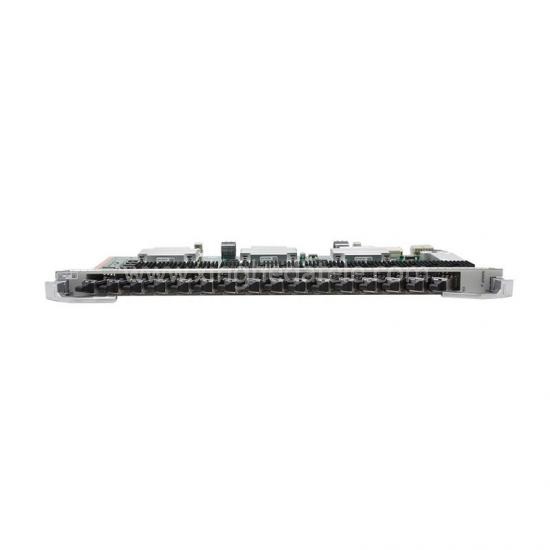

The H906CGUF board is an 16-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services

16 XG-PON&GPON ports (SFP+)

Maximum split ratio 1: 256

Port rate:

GPON upstream: 1.244 Gbit/s

GPON downstream: 2.488 Gbit/s

XG-PON upstream: 2.488 Gbit/s

XG-PON downstream: 9.953 Gbit/s

Rate mode: Asymmetric rate

Maximum Receiver Sensitivity:

Class B+

GPON channel: -28 dBm

XG-PON channel: -26.5 dBm

N2a

GPON channel: -32 dBm

XG-PON channel: -29.5 dBm

Class C+

GPON channel: -32 dBm

XG-PON channel: -30.5 dBm

Class D

GPON channel: -35 dBm

XG-PON channel: -33.5 dBm

MAC address table size: 131072

Forwarding capability: 200 Gbit/s

Product Details

Huawei H906CGUF

Our Advantages

We have Huawei H906CGUF for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.


Huawei H906CGUF, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.


Huawei H906CGUF represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
