HUAWEI H901GPUF 16 Port GPON Board For MA5800 OLT

HUAWEI H901GPUF 16 Port GPON Board For MA5800 OLT

Product Description

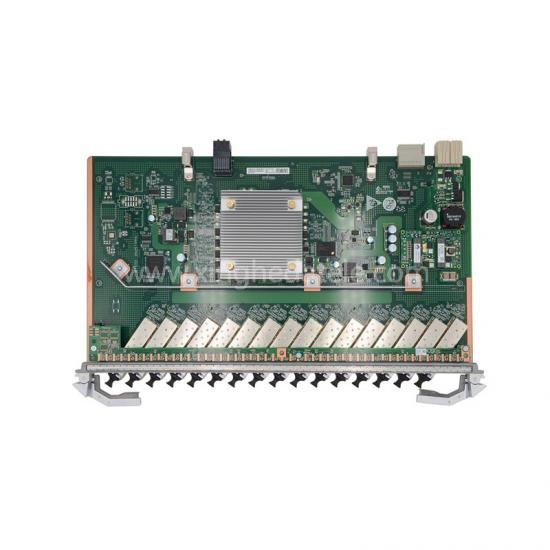

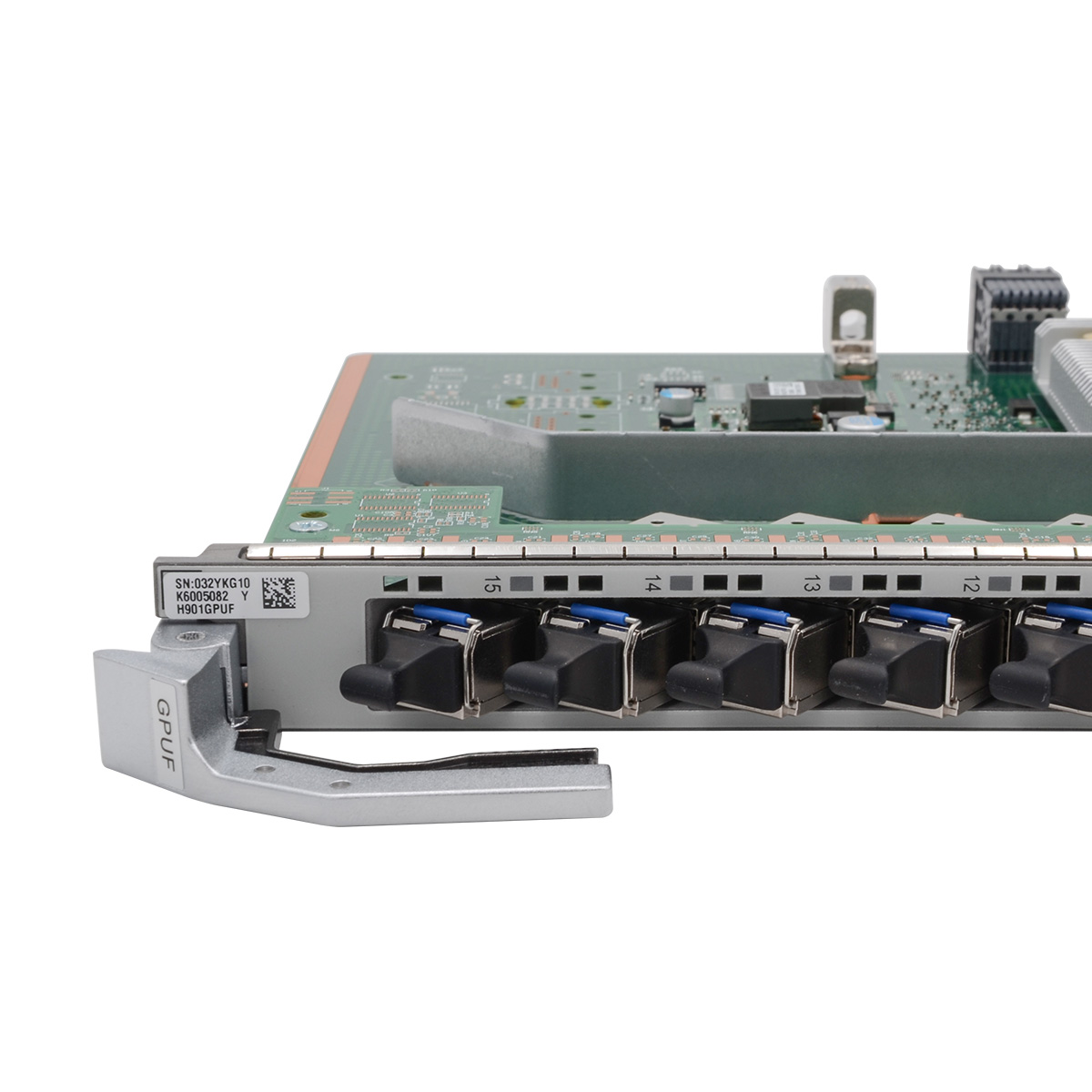

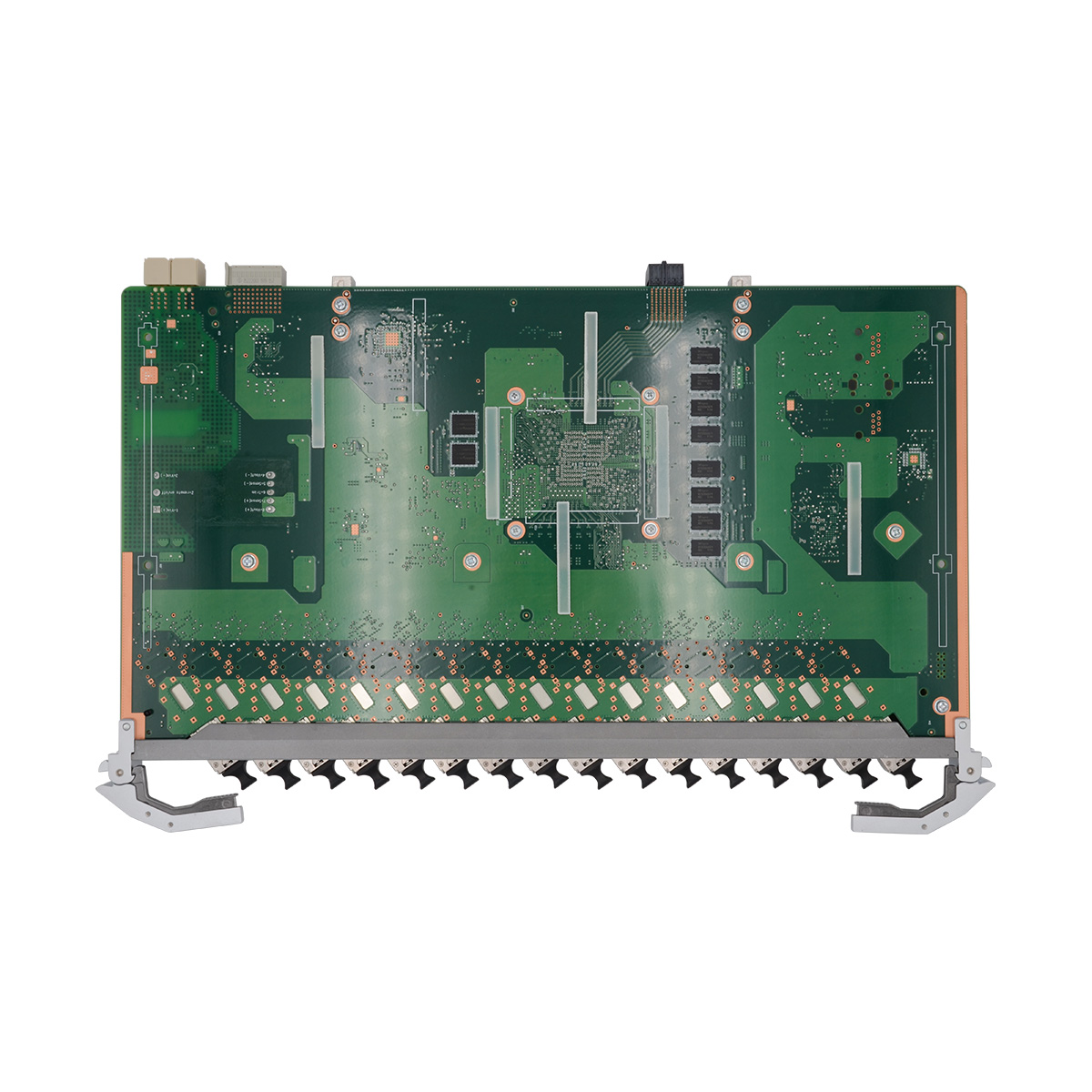

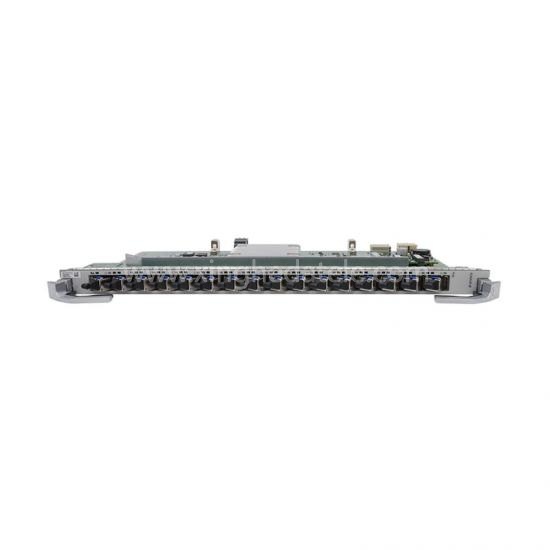

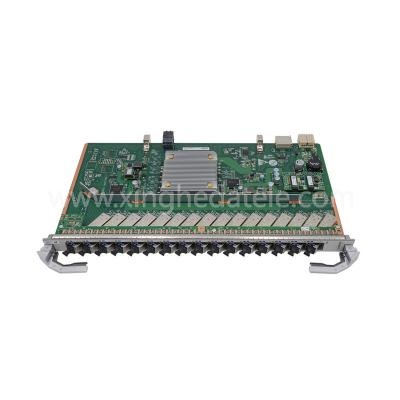

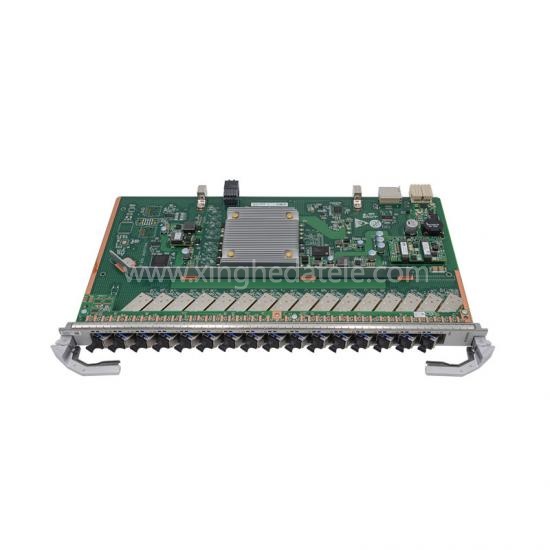

H901GPUF is a 16-port GPON OLT interface board, which works together with the ONU to implement GPON access services.

High density and energy-conversation

High density and low power consumption, supporting access of 2K users

Manual disabling of idle PON ports, saving energy

40-km distance of two ONUs under the same PON port, simplifying network planning

Intelligent management channel

2-hierarchical HQoS, improving user experience

Easy OAM

Real-time rogue ONU detection and isolation, ensuing stable service running

Variable-length OMCI, improving upgrade efficiency and reducing break off time

Huawei H901GPUF is a 16-GPON Port Interface Board with B+/C+/C++ SFP module, it works together with ONU to provide the GPON acess service, apply to Huawei MA5800-X2, X7, X15, X17 NG OLT system

Forwarding Capality: 40Gbit/s

Max. split radio: Class B+: 1:64; Class C+/++： 1:128

B+ SFP Module Optical Power: 1.5 dBm~5 dBm, Receiver Sensitivity: -28 dBm

C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm

C++ SFP Module Optical Power: 6 dBm~10dBm, Receiver sensitivity: -35 dBm

T-CONTs per PON port: 1024

Maximum number of MAC addresses: 32768

Service flows per PON board: 16368

Operating Wavelength: Tx: 1490 nm, Rx: 1310 nm

Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984

Our Advantages

We have HUAWEI H901GPUF for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

HUAWEI H901GPUF, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

HUAWEI H901GPUF represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
