Huawei OSN1500B SCC unit, Cross-Connect unit, Timing unit, and STM-16 2.5G line unit integrated board SSRDPCXL1614 equipped with 1 L-16.2 80km SFP module

Whether you need new products or renovated products, takes comprehensive

 warranty as the standard.we only purchase green market equipment of the

highest quality . All these are provided at the best possible price.

  • Min.Order Quantity::

    1 pc
  • Price::

    Negotiable
  • Delivery Time::

    3-5 days
  • warranty time::

    six months
  • Place of Origin::

    China
  • Payment Terms::

    T/T, Western Union, MoneyGram
  • Share To :
  • Facebook
  • Twitter
  • Linkedin
  • Youtube
  • Pinterest

Huawei OSN1500B SCC unit, Cross-Connect unit, Timing unit, and STM-16 2.5G line unit integrated board SSRDPCXL1614 equipped with 1 L-16.2 80km SFP module

Product Description

Feature Code
Board Feature Code Type of Optical Interface
SSRDPCXL1614 14 L-16.2
SSR1PCXLL1604 04 L-16.2
Optical Interface Parameter
Parameter Value
Nominal bit rate 2488320 kbit/s
Line code pattern NRZ
Application code L-16.2

RDPCXL16 is a Main Control and Cross-Connect integrated board for Huawei OSN1500, provide STM-16 signals, controls communication, grooms services and clock signals. CXL16 have R2 and RD version, part number is 03052501, V1R8, V1R10 version are default mainstream delivery version.

SSRDPCXL16(L-16.2) configure 1 L-16.8 80km SFP module, but eSFP module are changeable to different type as L-16.1, L-16.2 to reach different transmission distance, please contact thunder-link.com sales team if need customized configuration.

Huawei OSN1500B SCC unit, Cross-Connect unit, Timing unit, and STM-16 2.5G line unit integrated board SSRDPCXL1614 equipped with 1 L-16.2 80km SFP module

SSRDPCXL16 can configure STM-16 SFP module.

Higher order cross-connect capacity: 60 Gbit/s

Lower order cross-connect capacity: 20 Gbit/s

Access capacity: 15Gbit/s.

Supports the detection and query of the information about the optical module, ALS function.

Supports the pluggable optical modules, facilitating the maintenance and upgrade of the optical modules.

Supports the transparent transmission and termination of the path overheads.

Supports the setting and query of the J0, J1, J2, and C2 bytes.

Supports various alarms and performance events.

Supports the PRBS function in the line direction.

Supports the two-fiber ring MSP, four-fiber ring MSP, linear MSP, SNCP, SNCTP, and SNCMP protechtion schemes.

Supports 1+1 hot backup protection schemes.

Supports inloops and outloops at optical interfaces, the warm reset and cold reset.

Supports the query of the manufacturing information of the board.

Supports the in-service loading of the FPGA.

Supports the upgrade of the board software without affecting services.

Supports the extraction, insertion, and management of the SSM and clock ID, frequency deviation detection.

Supports IEEE 1588v2 time and clock synchronization.

Supports transmission of the DCC overhead information at two external clock interfaces.

Supports the transmission of two channels of clock signals through the S1 to S4 interfaces on the EOW.

Supports the in-service check function for the PIU,failure check function for the lightning protection module of the PIU.

Supports the VC-12/VC-3/VC-4 and VC-4-4c concatenation services.

Product Details

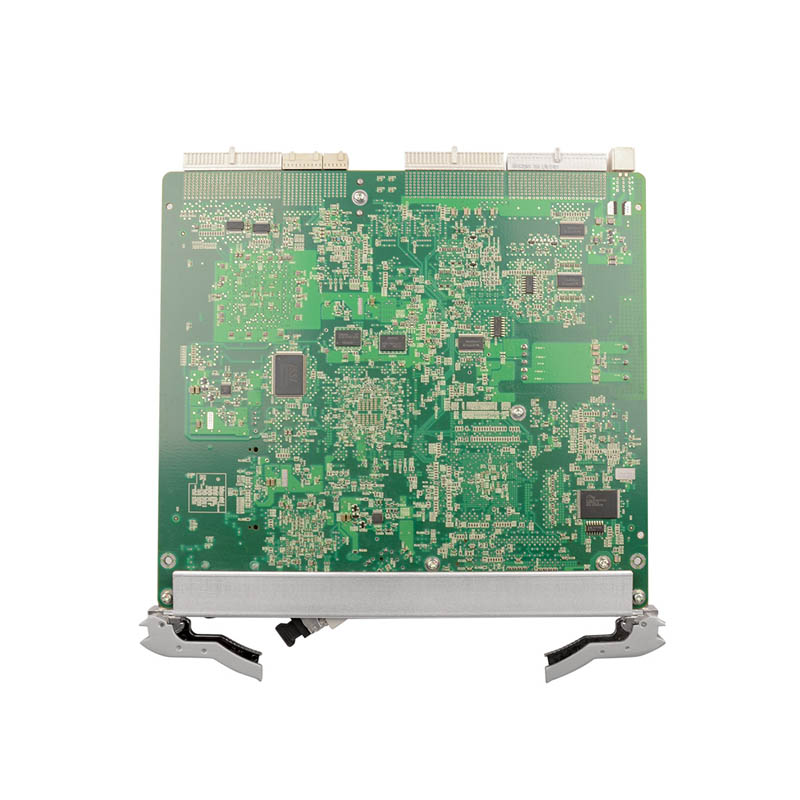

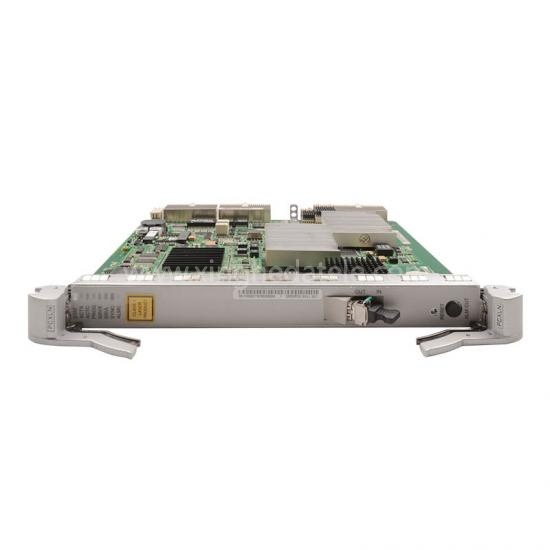

HUAWEI SSRDPCXL16

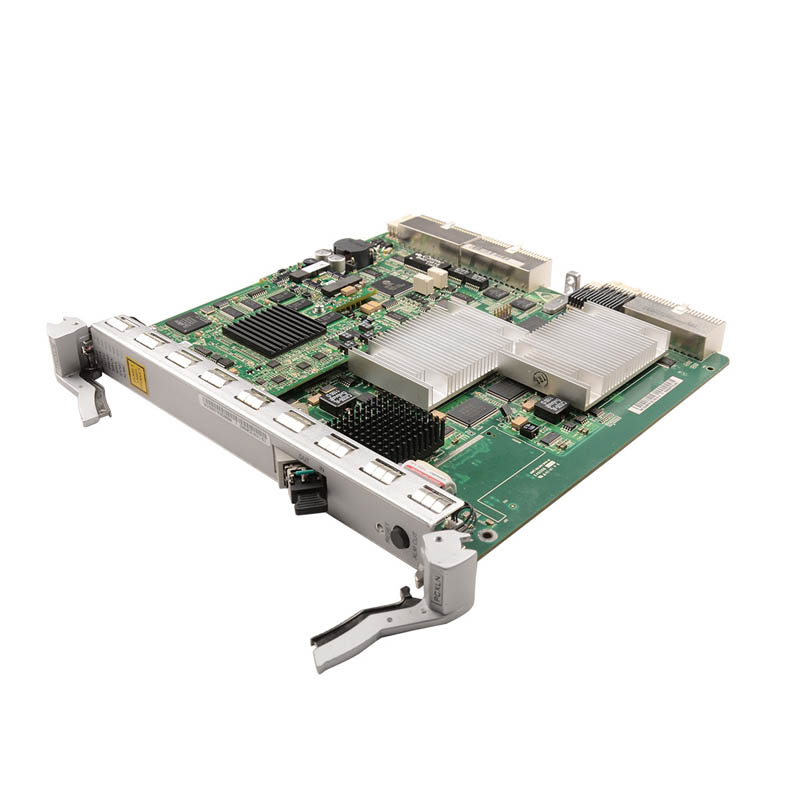

HUAWEI SSRDPCXL16

Our Advantages

We have Huawei SSRDPCXL16 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.


Huawei SSRDPCXL16, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.


Huawei SSRDPCXL16 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
