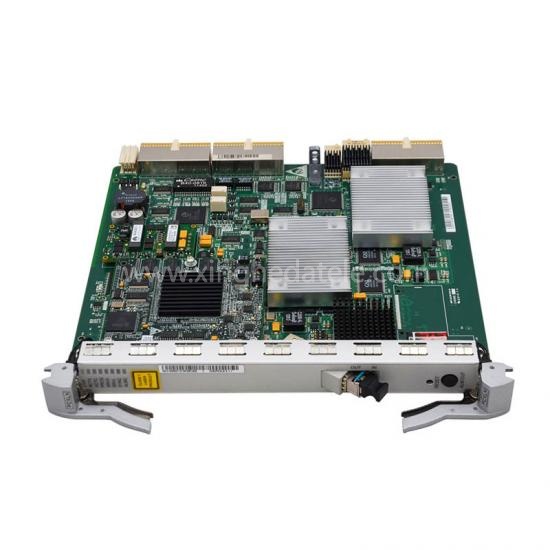

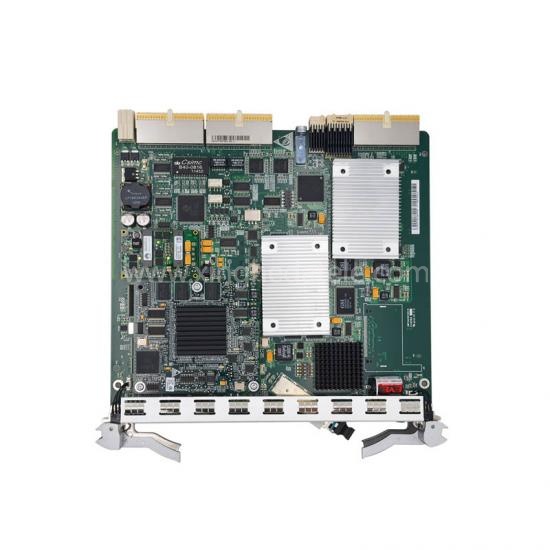

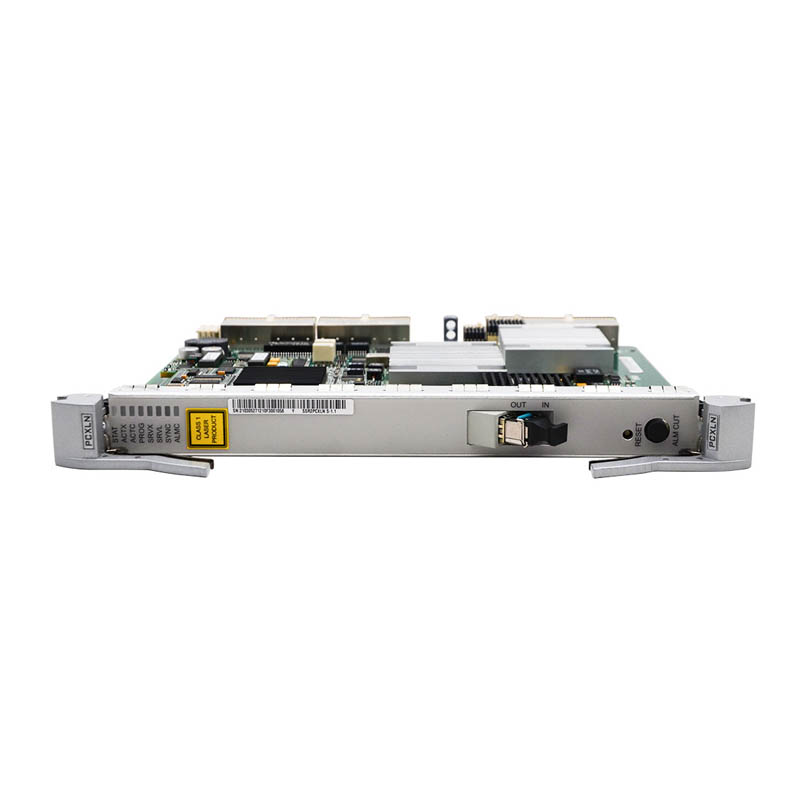

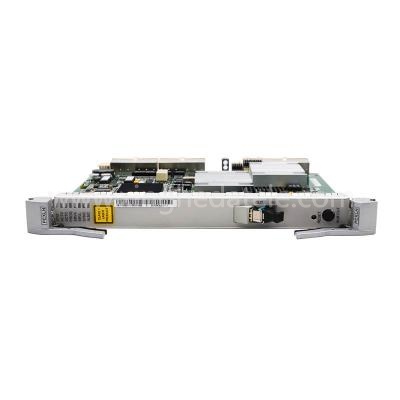

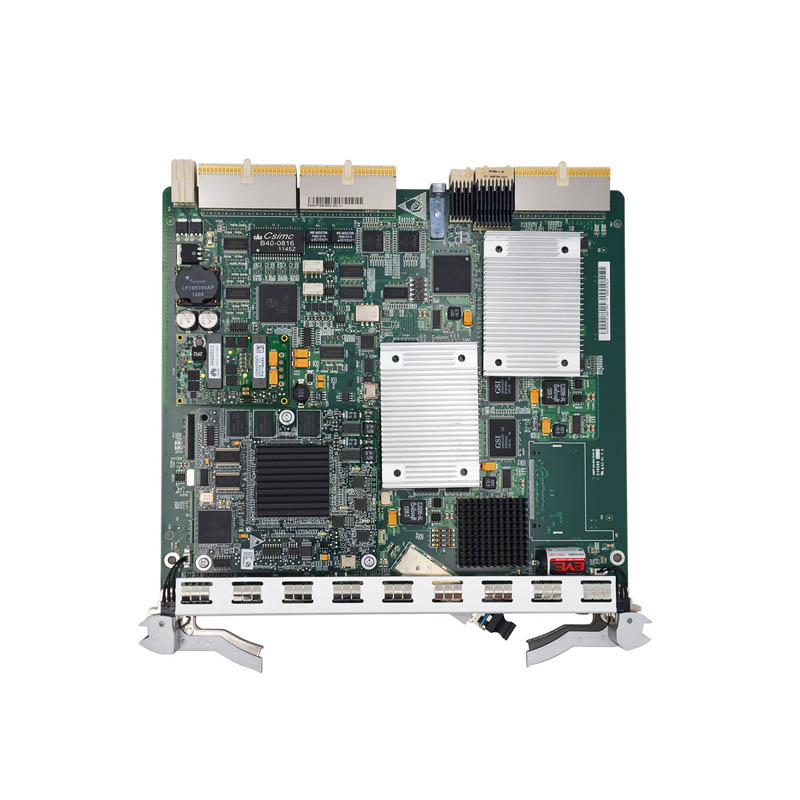

HUAWEI SSRD0PCXL1 03052710 Huawei OSN1500B STM-1 155M Line SCC Timing Unit

HUAWEI SSRD0PCXL1 03052710 Huawei OSN1500B STM-1 155M Line SCC Timing Unit

Product Description

RD0PCXL1 is a Main Control and Cross-Connect integrated board for Huawei OSN1500B, provide STM-1 signals, controls communication, grooms services and clock signals. PCXL1 have RD0 and R1 version, part number is 03052711, V1R8, V1R10 version are default mainstream delivery version.

SSRD0PCXL1(S-1.1) configure 1 S-1.1 15km SFP module, but eSFP module are changeable to different type as L-1.1, L-1.2 to reach different transmission distance, please contact thunder-link.com sales team if need customized configuration.

Huawei OSN1500B SCC unit, Cross-Connect unit, Timing unit, and STM-1 155M line unit integrated board SSRD0PCXL115 equipped with 1 S-1.1 15km SFP module

SSRD0PCXL1 can configure STM-1 SFP module.

Higher order cross-connect capacity: 60 Gbit/s

Lower order cross-connect capacity: 20 Gbit/s

Access capacity: 8Gbit/s.

Supports the detection and query of the information about the optical module, ALS function.

Supports the pluggable optical modules, facilitating the maintenance and upgrade of the optical modules.

Supports the transparent transmission and termination of the path overheads.

Supports the setting and query of the J0, J1, J2, and C2 bytes.

Supports various alarms and performance events.

Supports the PRBS function in the line direction.

Supports the two-fiber ring MSP, four-fiber ring MSP, linear MSP, SNCP, SNCTP, and SNCMP protechtion schemes.

Supports 1+1 hot backup protection schemes.

Supports inloops and outloops at optical interfaces, the warm reset and cold reset.

Supports the query of the manufacturing information of the board.

Supports the in-service loading of the FPGA.

Supports the upgrade of the board software without affecting services.

Supports the extraction, insertion, and management of the SSM and clock ID, frequency deviation detection.

Supports IEEE 1588v2 time and clock synchronization.

Supports transmission of the DCC overhead information at two external clock interfaces.

Supports the transmission of two channels of clock signals through the S1 to S4 interfaces on the EOW.

Supports the in-service check function for the PIU,failure check function for the lightning protection module of the PIU.

Supports the VC-12/VC-3/VC-4 and VC-4-4c concatenation services.
