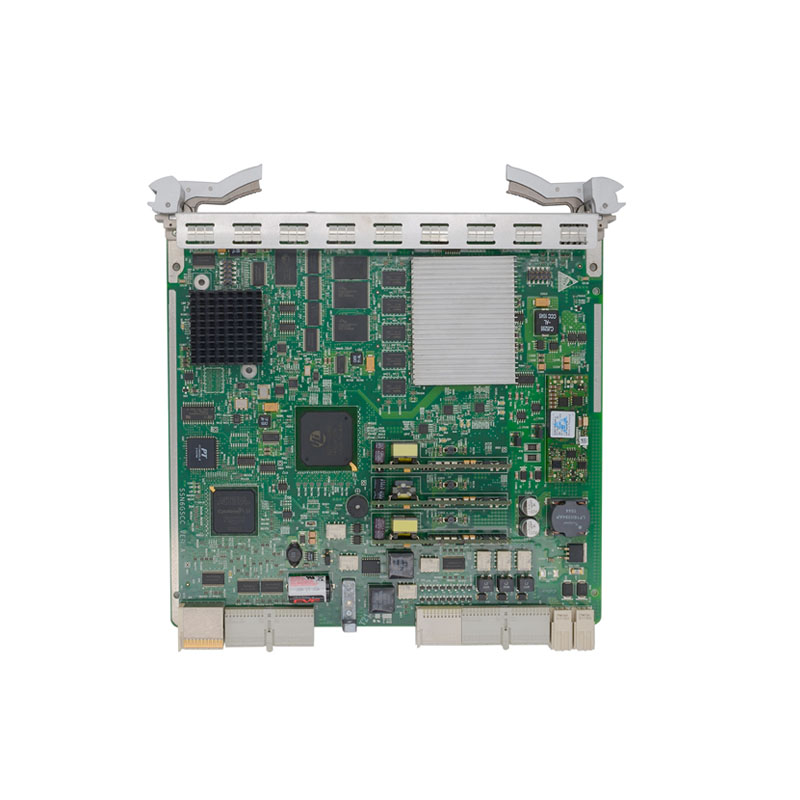

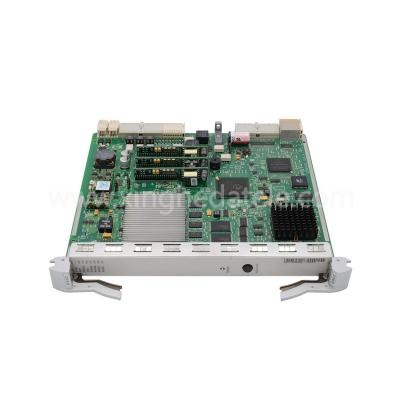

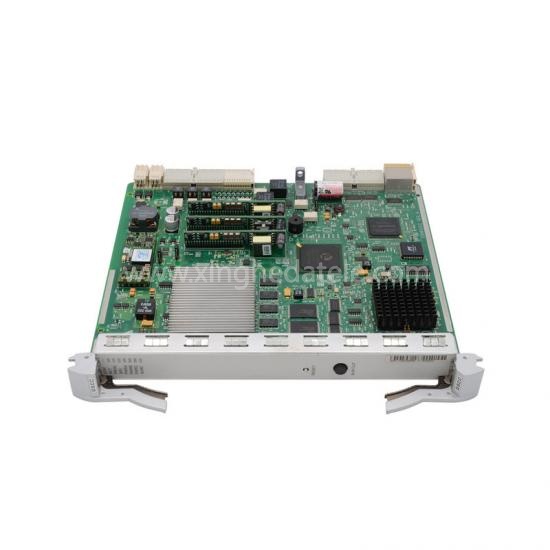

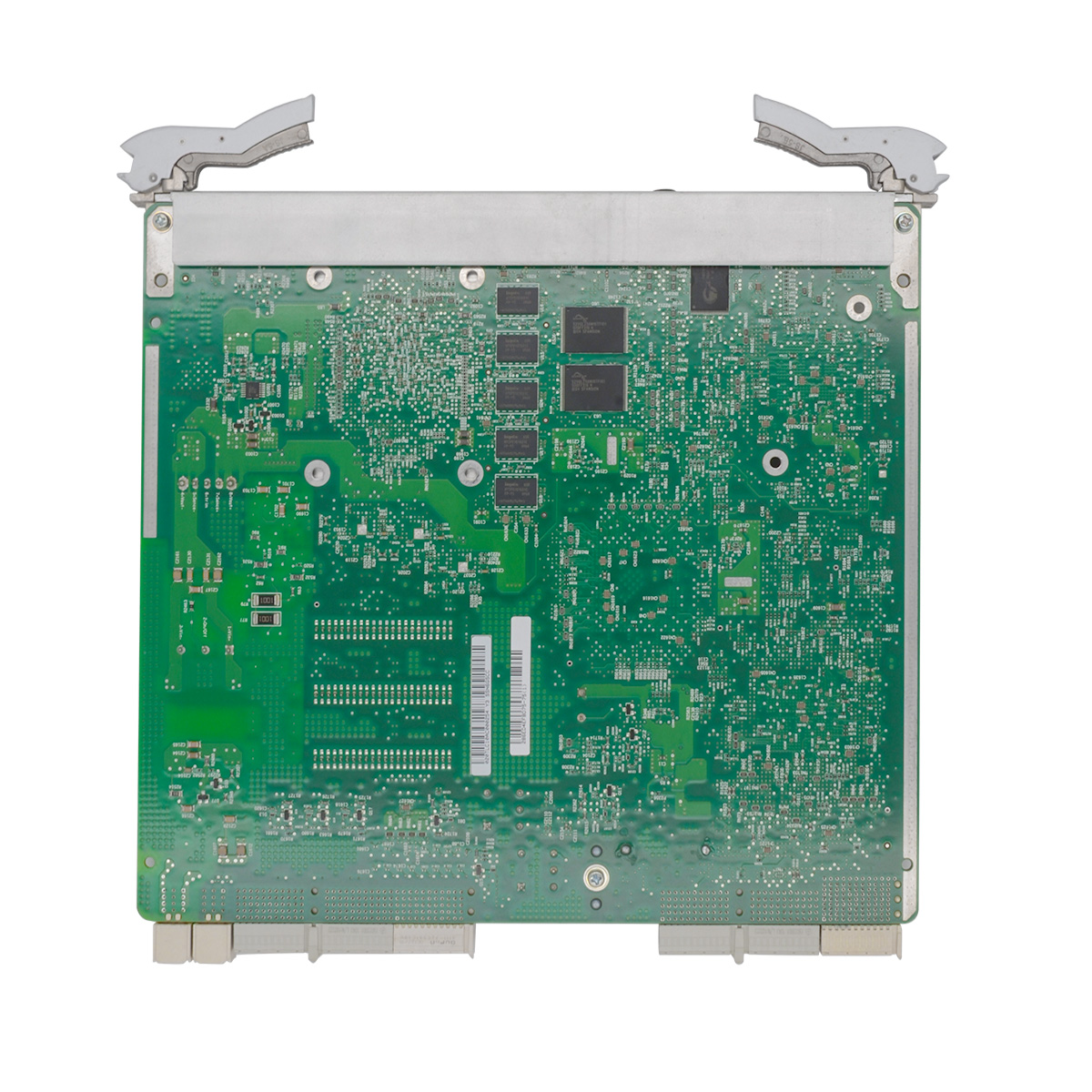

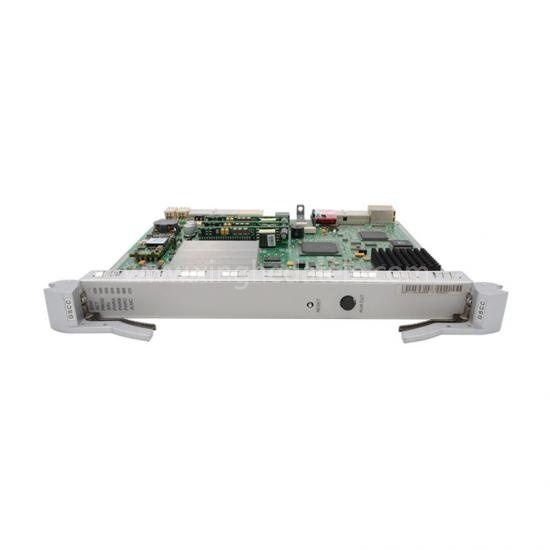

HUAWEI SSN6GSCC OptiX OSN 7500 system control board

• Provides the 10M/100M Ethernet port, which is used for communicating with the NMS. The Ethernet port is accessed through the EOW.
• Provides the F&f interface, which is accessed through the AUX and is used to manage the COA.
• Provides one 64 kbit/s synchronous data port F1, which is accessed through the AUX.
• Provides the RS232 OAM interface, which is used for connecting a PC or workstation, and supports the remote maintenance by using a modem that uses the RS232 DCE interface. The OAM interface is accessed through the EOW.

Processes a maximum of 160 DCCs (D1-D3). In this manner, the link is provided for transmitting the NM information.

• Provides the RTC.
• Supports the high-precision clock synchronization feature, and complies with the IEEE 1588 V2 protocol. The N4GSCC receives the time information through interfaces S1-S4 of the EOW. The S1, S3 and ALMI4 interfaces receive the first channel of time information, and the S2, S4 and ALMI4 interfaces receive the second channel of time information.

• Supports service performance monitoring and collects information about performance events and alarms.
• Provides 16 alarm inputs and four alarm outputs through the AUX.
• Provides one 4-output alarm cascading port through the AUX.
• Controls the four cabinet indicators through the AUX.
• Supports intelligent fan speed control and manages the fan alarms.
• Supports simulation package loading and diffused loading.
• Supports the function of detecting whether a packet data board is in position.

• Reports the alarm indicating a fault in the power supply (the power supply and the backup power supply of the EOW), for the AUX/EOW board.
• Supports the monitoring of the -48 V or -60 V power supply.
• Supports the in-service check function for the PIU board and supports the failure check function for the lightning protection module of the PIU.

The N4GSCC and N6GSCC support the packet function.

For information about the performance of the packet system, see Packet System Performance.
