HUAWEI TNZ5UNS4 03032WXA OSN1800 service processing board
Product Description
| Function and Feature | Description | ||||
|---|---|---|---|---|---|
| Basic functions |
Supports conversion of the following signals: 80 x ODU0/80 x ODUflex/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4<->1 x OTU4 Supports hybrid transmission of ODU0, ODU1, ODU2, ODU2e, and ODUflex signals. |
||||
| Cross-connect functionality |
Implements the following service grooming when working with cross-connect boards: 80 x ODU0/ODUflex, 40 x ODU1, 10 x ODU2/ODU2e, 2 x ODU3, 1 x ODU4. |
||||
| OTN function |
|
||||
| WDM specifications | Supports ITU-T G.694.1-compliant DWDM specifications. | ||||
| Tunable wavelengths |
Tunes the optical signals output on the WDM side within the range of 80 wavelengths in C-band at a 50 GHz channel spacing. |
||||

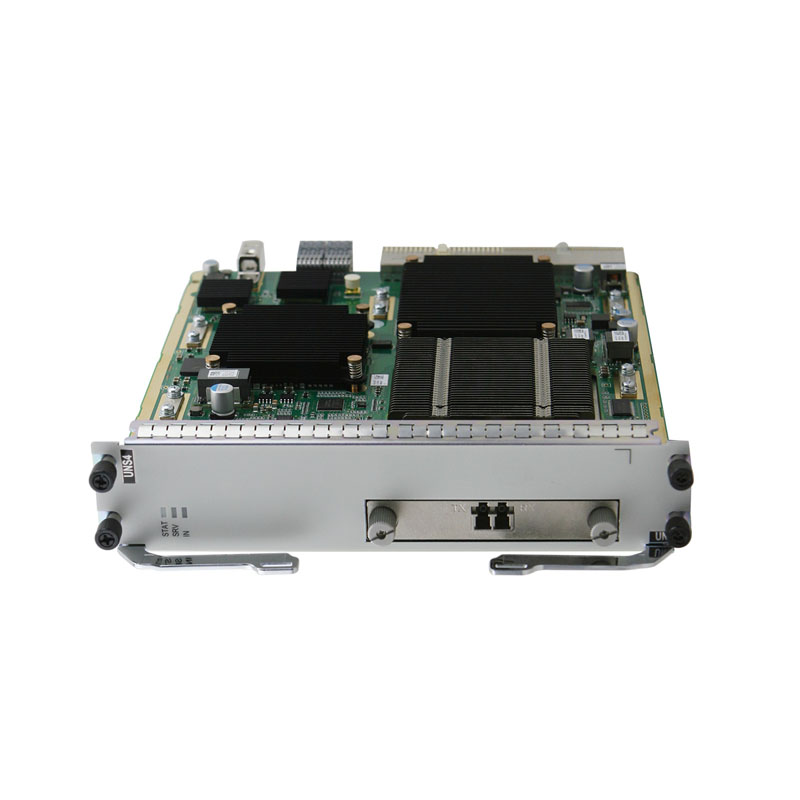

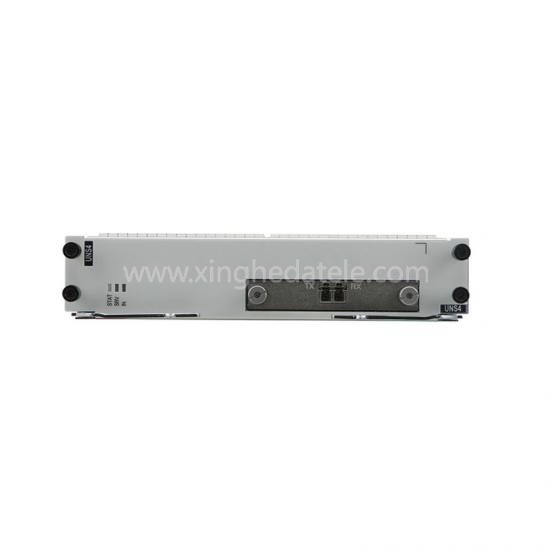

TNZ5UNS4 is a 1-port 100G universal line service processing board applied to Huawei OSN 1800V. The UNS4 board is a universal line board. It supports hybrid transmission of OTN, SDH and packet services with a maximum bandwidth of 100 Gbit/s. The UNS4 board processes and converts the received service signals into one OTU4 signal carried over an ITU-T G.694.1-compliant DWDM wavelength.
The UNS4 board supports hybrid transmission of OTN, SDH and packet services, and functions such as Layer 2 switching, OTN ports, and SDH overhead processing.
One UNS4 board supports hybrid transmission of OTN, SDH and packet services with a maximum bandwidth of 100 Gbit/s. Functions supported by the UNS4 board vary depending on the signals received.
Product Details
Our Advantages
We have HUAWEI TNZ5UNS4 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
HUAWEI TNZ5UNS4, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
HUAWEI TNZ5UNS4 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
