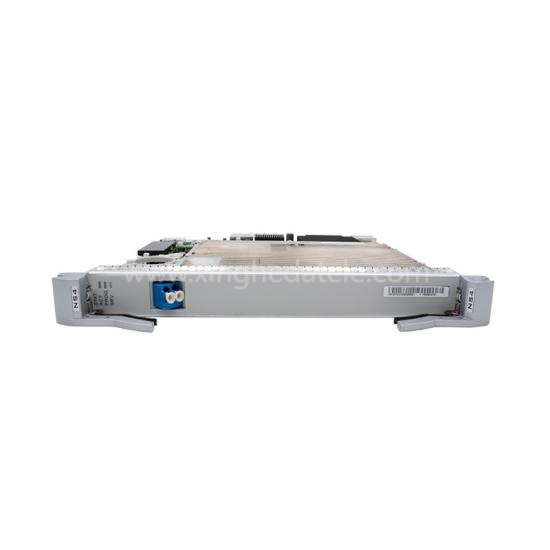

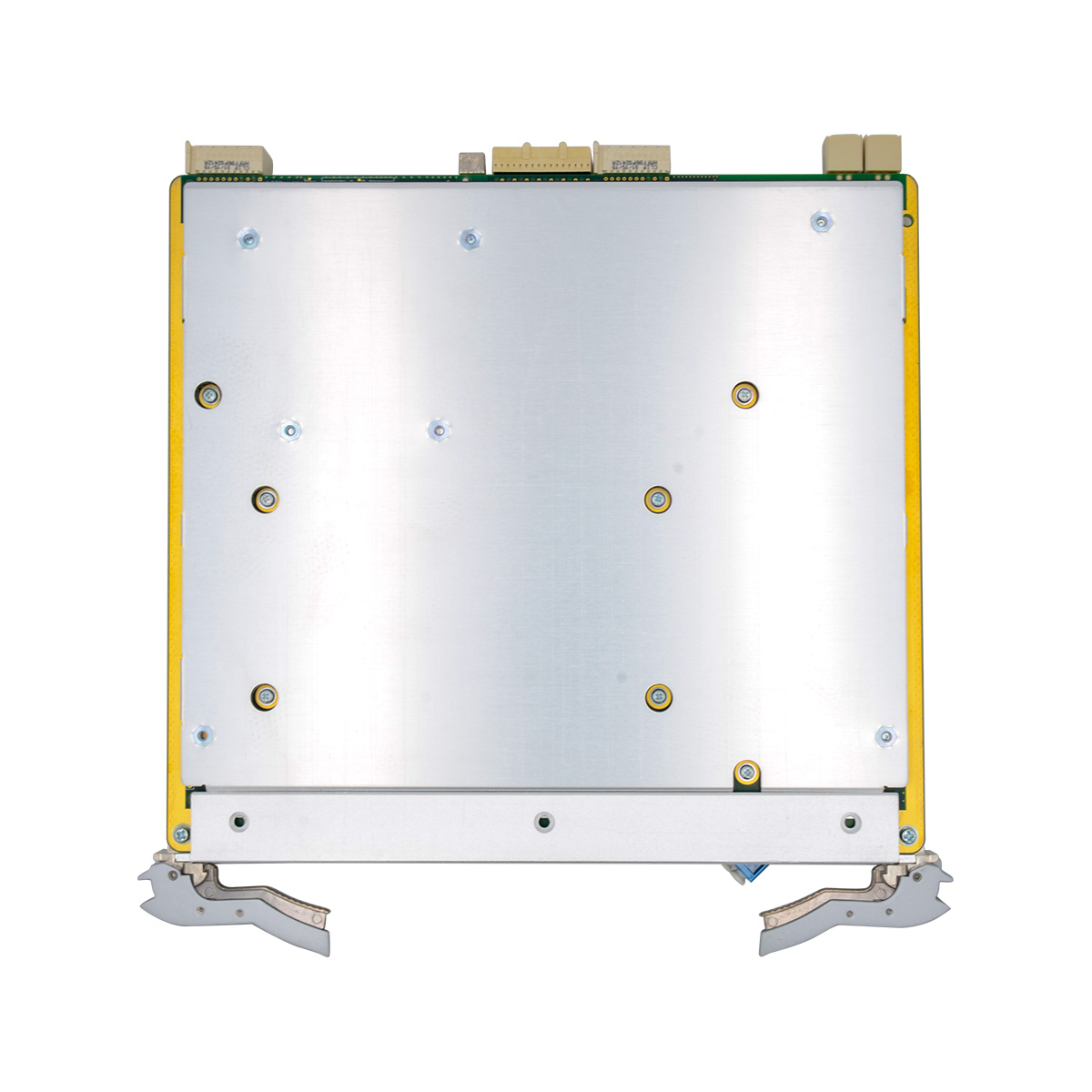

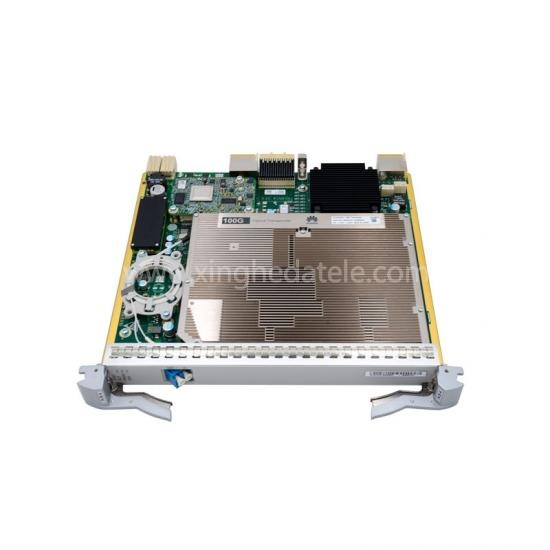

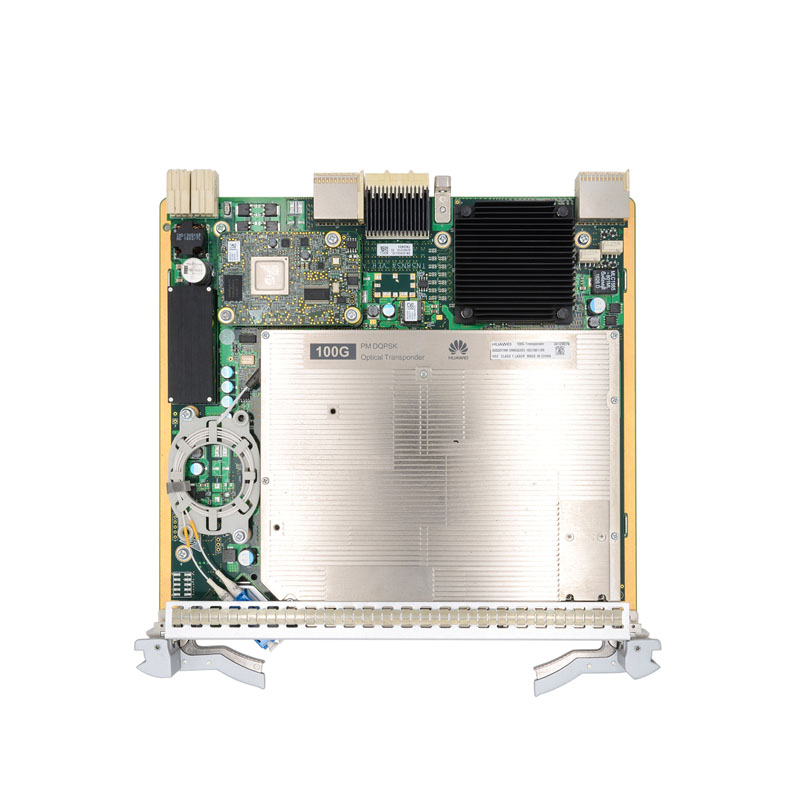

Huawei TN58NS4T51 03031EQH OSN8800 Board

Huawei TN58NS4T51 03031EQH OSN8800 Board

Product Description

Huawei TN58NS4T51 Board realizes the relay of one optical signal, and transmits and receives OTU4 optical signals whose wavelengths at both ends comply with the DWDM standard wavelength recommended by ITU-T G.694.1. The optical receiving module receives the optical signal to be relayed by “IN”. The optical port completes the O/E conversion. The electrical relay module performs signal decoding, overhead processing, and encoding. In this process, the electrical signal-based shaping, regeneration, and retiming are completed and packaged into the OTN frame signal format. The encoded signal is sent to the optical transmission module, and after E/O conversion, it transmits an OTU4 optical signal that conforms to the DWDM standard wavelength recommended by ITU-T G.694.1. The converted optical signal is output from the “OUT” optical port.

In OptiX OSN 8800 T64 enhanced subrack/OptiX OSN 8800 T32 enhanced subrack/OptiX OSN 8800 T16 subrack. Huawei TN58NS4T51 Board  supports line mode and trunk mode. When working in line mode, the OptiX OSN 8800 T64 enhanced subrack must be configured with USXH+UXCT boards; the OptiX OSN 8800 T32 enhanced subrack must be configured with UXCH/UXCM boards; the OptiX OSN 8800 T16 subrack must be configured with TN1 6UXCM boards.

Our Advantages

We have  HUAWEI TN58NS4T51 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

HUAWEI TN58NS4T51, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

HUAWEI TN58NS4T51 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
