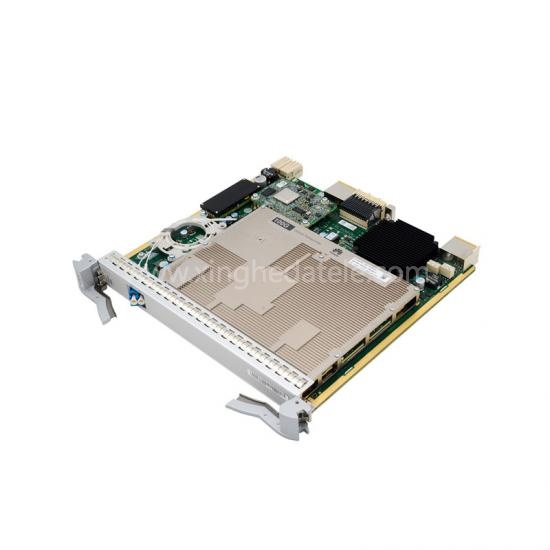

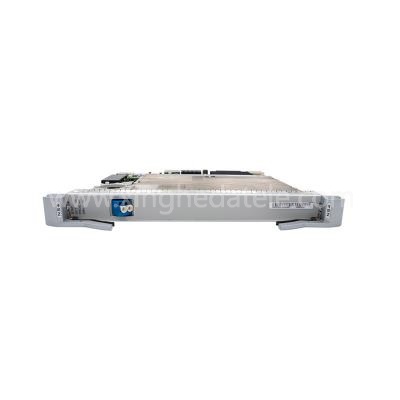

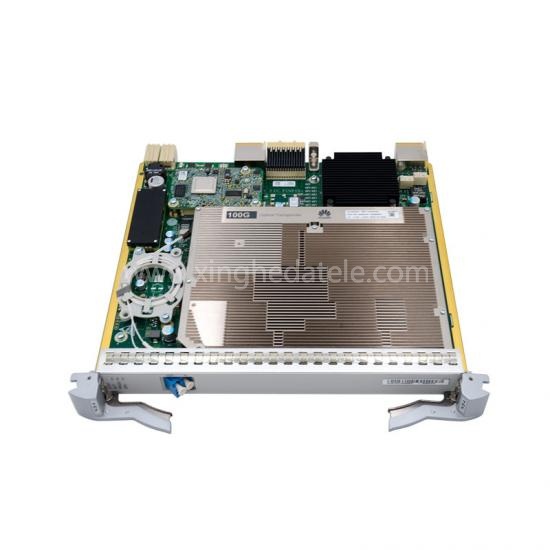

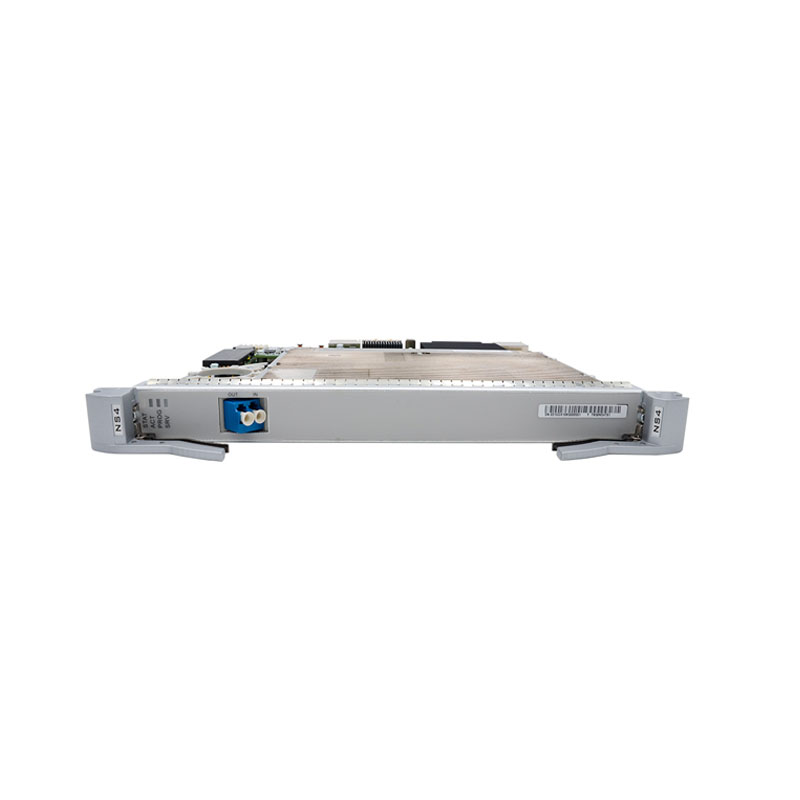

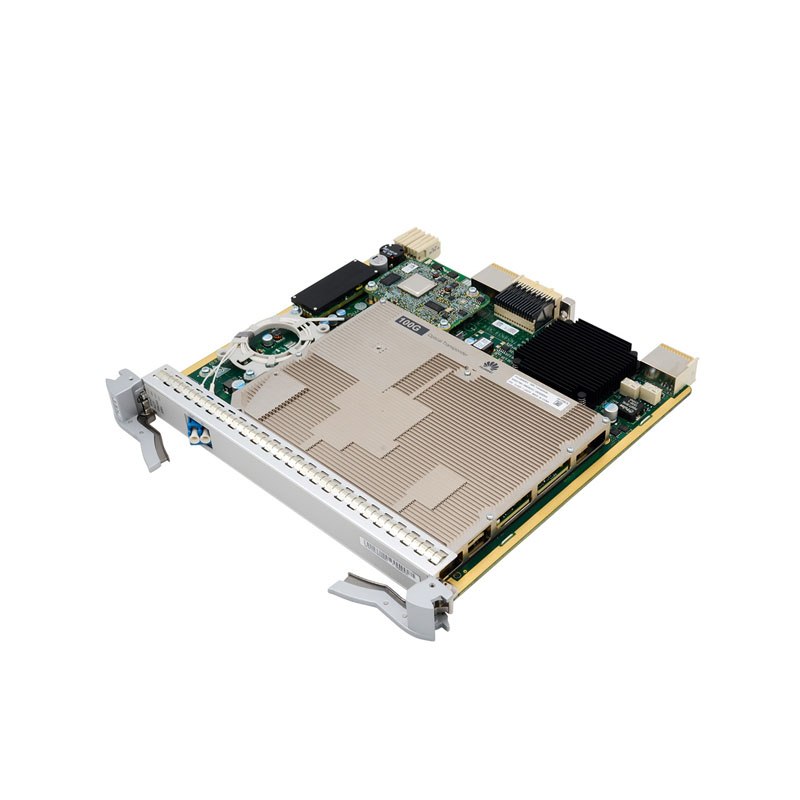

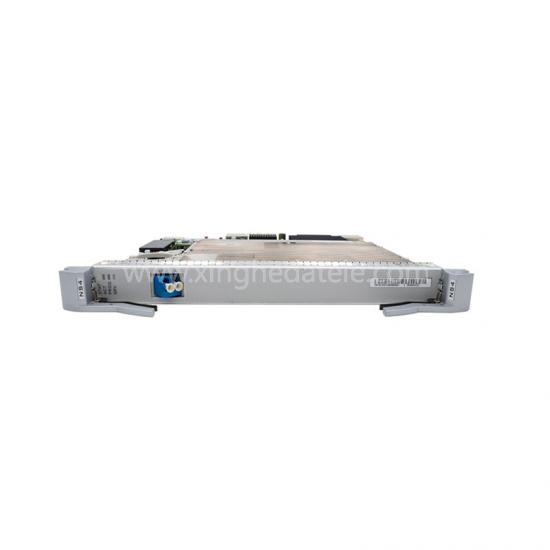

HUAWEI TN58NS4T61 03031GGX Optix OSN 8800 100G Line Card

HUAWEI TN58NS4T61 03031GGX Optix OSN 8800 100G Line Card

Product Description

Huawei TN58NS4T61 Board realizes the relay of 1 optical signal, and the wavelengths of both ends of the transceiver are OTU4 optical signals that comply with the DWDM standard wavelength recommended by ITU-T G.694.1. The optical receiving module receives the optical signal to be relayed through the “IN” optical port and completes the O/E conversion. The electrical relay module performs signal decoding, overhead processing, and encoding. In this process, the electrical signal-based shaping, regeneration, and retiming are completed and packaged into the OTN frame signal format. The coded signal is sent to the optical transmitting module, and after E/O conversion, the OTU4 optical signal of the DWDM standard wavelength conforming to the ITU-T G.694.1 recommendation is sent. The converted optical signal is output from the “OUT” optical port.

Huawei TN58NS4T61 Board can be created as “57NS4” on the network management system and replace TN57NS4. No software upgrade is required for replacement. TN58NS4 occupies 1 physical slot, TN57NS4 occupies 2 physical slots. When TN58NS4 replaces TN57NS4, it needs to be inserted in the right slot of the original TN57NS4 slot. No more single board can be inserted in the free physical slot. The replaced single board only has the function of TN57NS4.

It can be replaced only when both the sending and receiving boards adopt SDFEC2 encoding and the board types are the same

Our Advantages

We have HUAWEI TN58NS4T61 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

HUAWEI TN58NS4T61, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

HUAWEI TN58NS4T61 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
