Product Description

AMPA Pole Mounting Kit (30-120 mm) 473879A

AMPA Pole Mounting Kit (30-120 mm) is required for installation of Nokia AirScale Radio Modules on a

pole. It supports installation on two sides of a pole. Each AMPA can support up to six modules, a maximum

of three on each side of the pole. The supported pole size is between 30 mm (1.2 in.) and 120 mm (4.7 in.)

in diameter. Bolt cutting might be required for installation on the back depending on the pole diameter.

The maximum allowed module weight per NOKIA AMPA is 186 kg (410.1 lb).

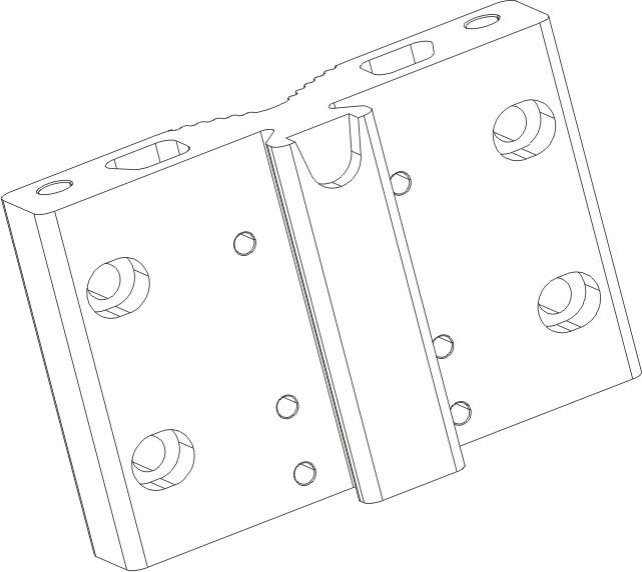

Figure: Pole Book Mount Bracket Front

Figure: Pole Book Mount Bracket Back

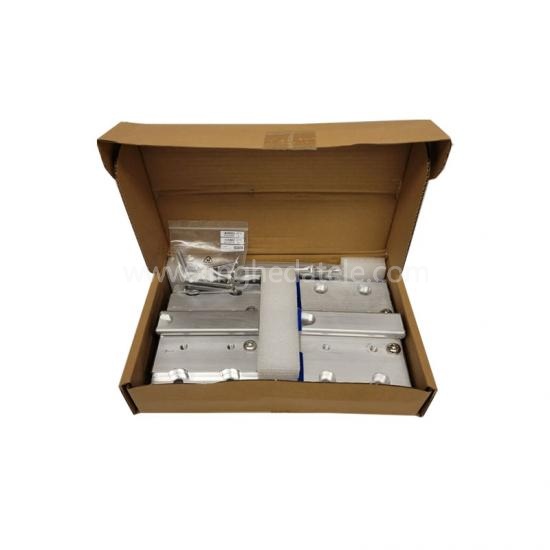

AMPA consists of:

Front bracket, material Aluminum

Back bracket, material Aluminum

Four M10x150 screws, SS 304

Four M10 nuts, SS 304

Eight M8x60 screws (for mounting middle module secondary bracket), SS304

For installation instructions, see Installing and Cabling Nokia AirScale Remote Radio Heads.
