Nokia FXED
Equipment Cable
1/2 Superflex 2M Jumper Cable
1/2 Superflex 2M Jumper Cable
1/2 Superflex 2M Jumper Cable

Feeder Cable Low PIM 2 Meters 1/2 Superflex 2M Jumper Cable with MINI DIN 4.3/10 Male to 7/16 Plug

Each jumper cable assembly is optimized to generate low passive third-order

intermodulation. After testing and certification, it can achieve low passive

intermodulation. The average dynamic test performance is - 165 dBc

  • Min.Order Quantity::

    1 pc
  • Price::

    Negotiable
  • Delivery Time::

    3-5 days
  • warranty time::

    six months
  • Place of Origin::

    China
  • Payment Terms::

    T/T, Western Union, MoneyGram
  • Share To :
  • Facebook
  • Twitter
  • Linkedin
  • Youtube
  • Pinterest

Feeder Cable Low PIM 2 Meters 1/2 Superflex 2M Jumper Cable with MINI DIN 4.3/10 Male to 7/16 Plug

Product Description

Product Name
Jumper Cable / Cable Assembly
Part number
CA-12SF-NMNM-2000
Impedance
50Ω
Connector
1.25
Cable
N-male to N-male
Frequency
DC-3GHz
Return loss
23dB
Insertion loss
0.6dB@3GHz
PIM
-160dBc@2×20W
Power handling
500W
DC breakdown voltage
2500V RMS
Length
2 meters
Packing
1pcs/bag
Operating temperature range
-30°C to +70°C
Storage temperature range
-40°C to +85°C
Relative humidity
5%- 95%
Barometric pressure
55KPa -106KPa
Weight
0.5kg

1 RF coaxial connector:

1.1 Material and Plating

Inner conductor: brass, plated with silver, Plating thickness: ≥0.003mm

Insulation dielectric: PTFE

Outer conductor: brass, plated with ternary alloy, Plating thickness≥0.002mm

1.2 Electrical & Mechanic Feature

Characteristics impedance: 50Ω

Frequency range: DC-3GHz

Dielectric strength: ≥2500V

Contact resistance: inner conductor≤1.0mΩ, Outer conductor≤0.4mΩ

Insulator resistance: ≥5000MΩ (500V DC)

VSWR: ≤1.15 (DC-3GHz)

PIM: ≤-155dBc@2x43dBm

Connector durability: ≥500 cycles

2 RF coaxial cable: 1/2” Super Flexible RF Cable

2.1 Material

Inner conductor: aluminum wire covered with copper (φ3.60mm)

Insulation dielectric: polyethylene foam (φ8.90mm)

Outer conductor: corrugated copper tube (φ12.20mm)

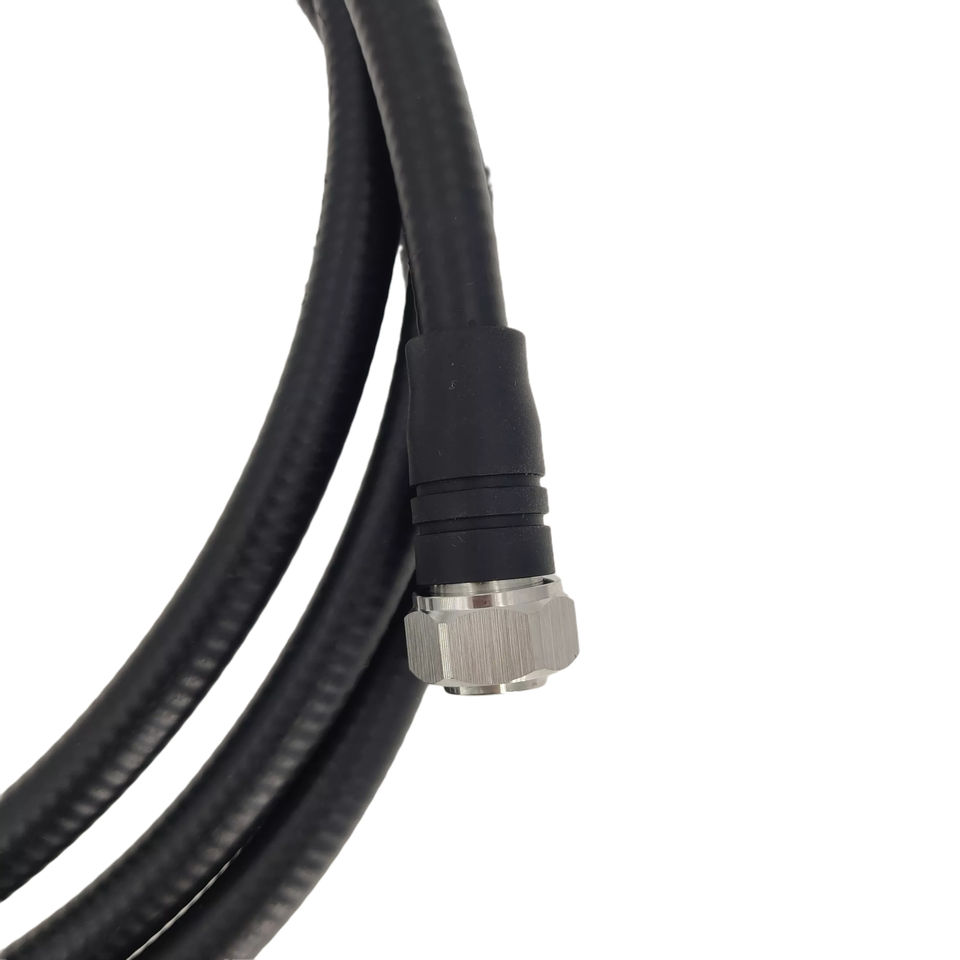

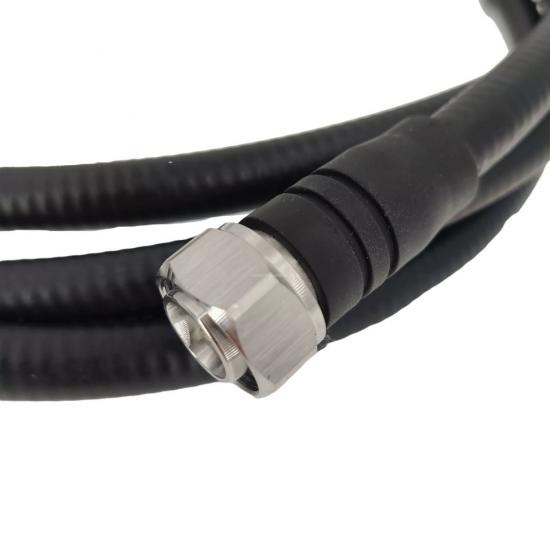

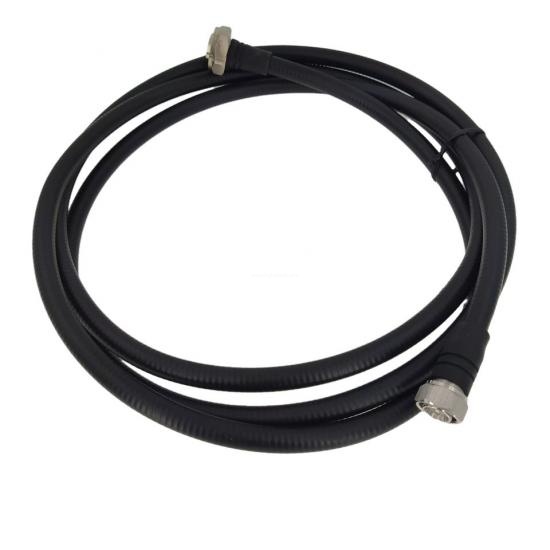

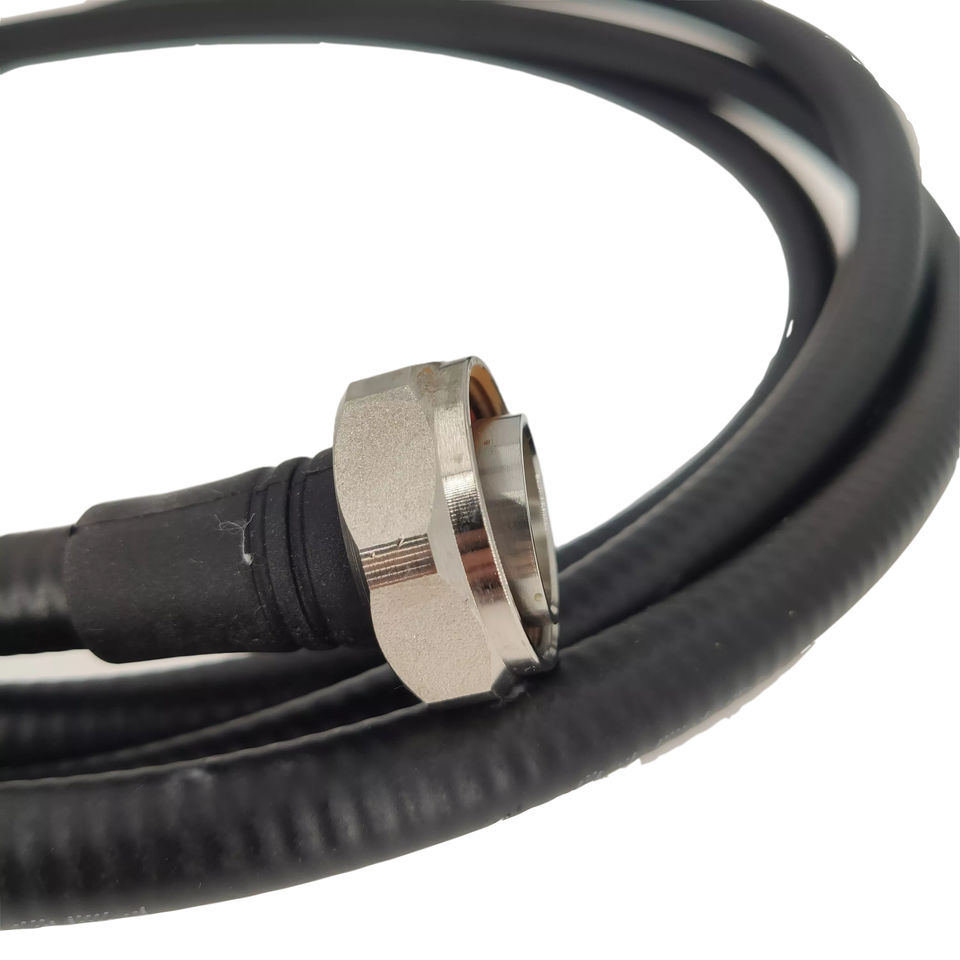

Product Details

1/2 Superflex 2M Jumper Cable

1/2 Superflex 2M Jumper Cable


Our Advantages

We have 1/2 Superflex 2M Jumper Cable for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.


1/2 Superflex 2M Jumper Cable , like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.


1/2 Superflex 2M Jumper Cable  represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
