Wire RF Jumper Cable 7/16 DIN Male to N Male With 1/2 Coaxial Cable

RF cable assemblies can be produced with many different connector types

and custom lengths depending on your needs and applications.

  • Min.Order Quantity::

    1 pc
  • Price::

    Negotiable
  • Delivery Time::

    3-5 days
  • warranty time::

    six months
  • Place of Origin::

    China
  • Payment Terms::

    T/T, Western Union, MoneyGram
  • Share To :
  • Facebook
  • Twitter
  • Linkedin
  • Youtube
  • Pinterest

Wire RF Jumper Cable 7/16 DIN Male to N Male With 1/2 Coaxial Cable

Product Description

Product Name
Jumper Cable / Cable Assembly
Part number
CA-12SF-DMNM-3000
Impedance
50Ω
Connector
DM-NM
Cable
1/2 Super Flexible Coaxial Cable
Frequency
DC-3GHz
Return loss
23dB
Insertion loss
0.8dB@3GHz
PIM
-160dBc@2×20W
Power handling
500W
DC breakdown voltage
2500V RMS
Length
3 meters
Packing
1pcs/bag
Operating temperature range
-30°C to +70°C
Storage temperature range
-40°C to +85°C
Relative humidity
5%- 95%
Barometric pressure
55KPa -106KPa
Weight
0.6kg

☀ RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM) .

☀ We focus on coaxial assemblies.

☀ Our custom RF cable assemblies are built-in and shipped worldwide.

☀ RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .

☀ RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U

☀ RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.

☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.


Product Details

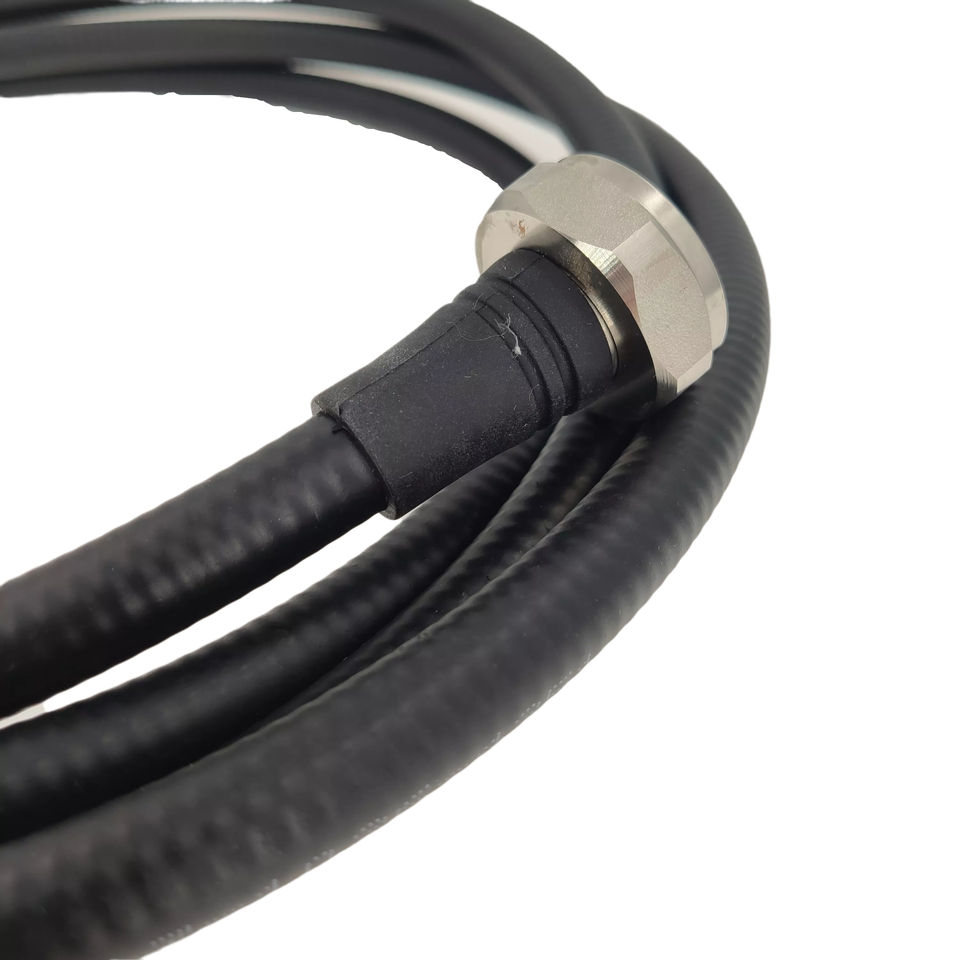

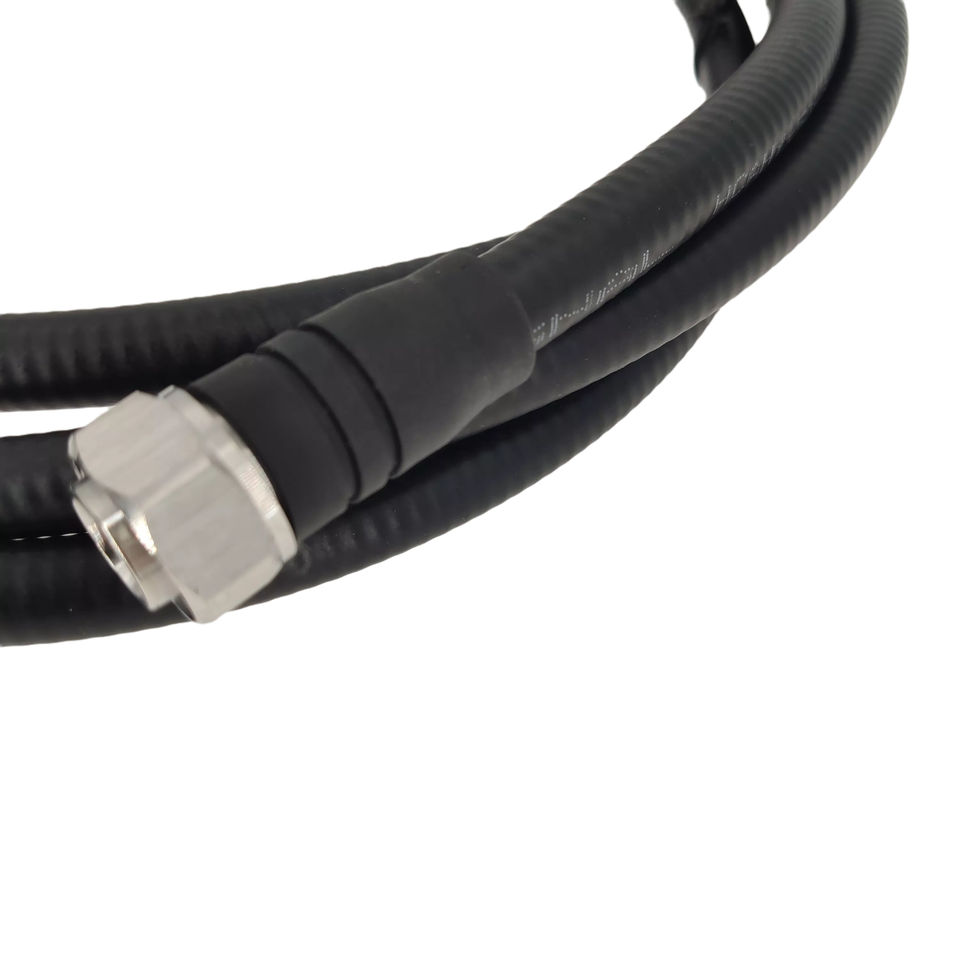

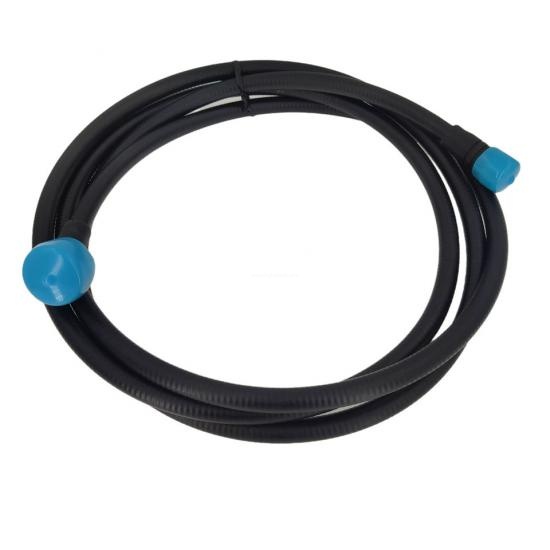

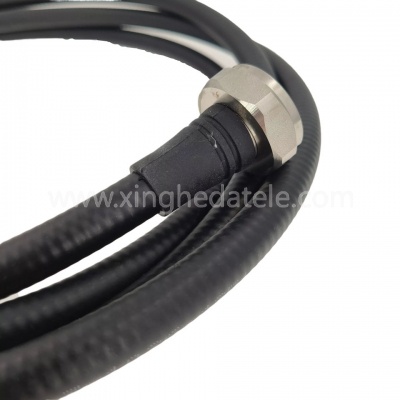

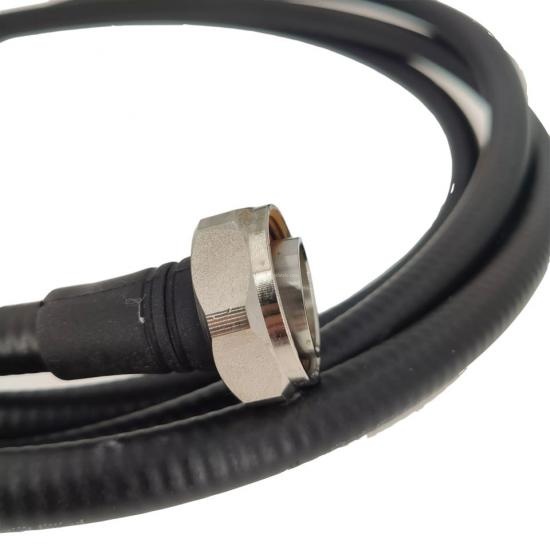

RF Jumper Cable 7/16

RF Jumper Cable 7/16


Our Advantages

We have RF Jumper Cable 7/16 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.


RF Jumper Cable 7/16 , like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.


RF Jumper Cable 7/16  represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
